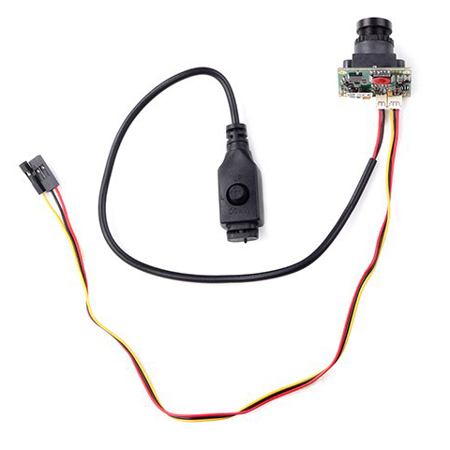

RunCam PZ0420M-L28-R 600TVL Day & Night Wide Voltage Mini FPV Board Camera, 2.8mm 86 Degree Lens, IR Blocked

This is an optimized version of PZ0420. It still keeps 600TVL resolution and excellent color rendition, supporting 5 to 17V operating voltage. The board size is reduced to 28x28mm, which can reduce air resistance for FPV aircraft. Besides, the weight of camera is just 18g (with case SKYPLUS), 12g (PZ0420M-L28),9g (PZ0420M-L24). It is suitable for fixed-wing aircraft and multirotor units like the QAV250, which has serious requirements in both voltage and weight.

• Color 600TVL Black & white 650TVL High Picture Quality
• 1/3" SONY SUPER HAD II CCD
• Support 2 to 4S battery (DC 5 to 17V) Wide voltage Power input
• 2.8mm/2.4mm wide angle lens
• Removable 5D OSD menu
• Digital Wide Dynamic Range(D-WDR)
• Digital Noise Reduction(2 DNR)
• Low Power Consumption
• Back light compensation (BLC)
• MIRROR
• Anti-exposure function support car license recording(HLC)
• Low illumination:0.01Lux
• White dot repair(DPC)
• CVBS(RCA) Video output

More Colorful
It t adopts SONY CCD &Nextchip DSP, Samsung and PANASONIC's top resistor component and tantalum capacitor.

Lighter, Smaller and 2-4S Battery Support
The small size and lighter weight make the camera more flexible to model planes or drones in various size.

Immersive Fee ling
IR sensitive or IR blocked version for option (Video effect take IR sensitive PZ0420 and IR blocked CMQ1993X for reference.)

5D-OSD
The newly designed 5D-OSD button makes the control easier than OSD board!

3pin FPV cable
The 400mm-long split 3pin FPV cable is more flexible for any RC airplane use!
