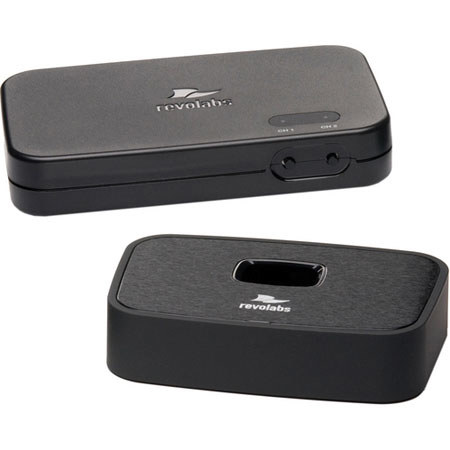

Yamaha HD Single Channel Wireless Microphone System, No Mics

SKU: RVHDSCS

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Yamaha 02-HDSGL-NM Specifications

  • Audio: Channels

    Single Channel

  • Radio Frequency

    North and South America: 1920 to 1930 MHz
    Africa, Asia, Australia, Europe: 1880 to 1900 MHz (DECT EU)
    Mainland China: 1900 -1920 MHz
    Japan: 1893.5 to 1906.1 MHz

  • Audio: Range

    150 feet (45 meters) approx. (no obstruction)
    Out-of-range alarm

  • Audio: Bandwidth

    50-14,000 Hz

  • Base Station: Power

    5V DC, 1A power connector
    100-240V, 50-60 Hz; Power supply included

  • Base Station: Connectors/Interfaces

    Channel LED indicators
    Pairing Push Buttons
    USB port for firmware update only
    Configuration DIP Switches (8)
    Channel 1 Analog Output 3.5 mm balanced connector
    Channel 2 Analog Output 3.5 mm balanced connector
    Channel 1 Analog Input 3.5 mm balanced connector
    Channel 2 Analog Input 3.5 mm balanced connector

  • Charger Base: Power

    5V DC, 1A
    100-240V, 50-60 Hz; Power supply included

  • Charger Base: Connectors

    DC power input port
    1 or 2 proprietary 4 pin microphone charge jacks

  • UPC Code

    779184209096

0 Accessories for Yamaha HD Single Channel Wireless Microphone System, No Mics

About Yamaha 02-HDSGL-NM

The HD Single Channel wireless microphone system is the perfect audio solution for video conferencing or voice reinforcement applications. Its small size allows for an easy and unintrusive integration for audio solutions that require a limited number of wireless microphones. The single channel supports up to two HD audio wireless microphones.

The Single Channel wireless microphone system takes advantage of the same technology available for boardrooms and large conference rooms in the Executive HD products. The HD Single Channel system utilizes Revolabs' "Designed For Speech" technology. This technology provides wideband frequency improving the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. The technology consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech.

The HD Single Channel wireless system can be mixed and matched with a variety of HD wireless microphones. Offered separately, the microphones are sleek in design and come in several styles: wearable, tabletop directional, tabletop omni-directional, XLR adapter for handheld microphones and adapters for Countryman microphones. Revolabs microphones and adapters are extremely easy-to-use. Just remove the microphone from the charger base, un-mute and talk. The HD Single Channel wireless system consists of a base station and an HD wireless microphone charger base and is available in single and dual channel models allowing for support of either one or two HD wireless m0icrophones in High Definition mode.

Yamaha 02-HDSGL-NM Features

  • Compact Design: Perfect for mobile video carts, while also reducing the real estate required for audio equipment on tables
  • Wireless: Eliminate the clutter of wires in small conference rooms. No more tripping over cables!
  • Crystal-Clear Audio: One or two wireless microphones provide unmatched HD audio quality for small conference rooms
  • No GSM Interference: Revolabs wireless microphones are impervious to GSM noise from other wireless electronic devices
  • Complete Control: Control audio options such as level of the outputs, line level and microphone level
  • Rechargeable: Save the expense of daily battery replacement and inconvenience of bulky battery packs
  • Secure: 128-bit encryption means no one will be able to listen in on the signal sent between the microphone and base station
  • Flexibility: Can be mixed and matched with a variety of HD wireless microphones
  • Versatility: Bi-directional audio allows you to listen using a headset

Key Features

  • Wireless: Eliminate the clutter of wires in small conference rooms
  • No more tripping over cables!
  • Crystal-Clear Audio
  • No GSM Interference
  • Complete Control
  • Rechargeable: Save the expense of daily battery replacement & inconvenience of bulky battery packs

What's in the box:

  • Revolabs HD Dual Charger Base
  • HD Base Station
  • 2x 3.5mm to 3.5mm Cable
  • 2x 3.5mm to RCA adapter
  • 2x Power Supply
  • Revolabs 1 Year Limited Warranty
