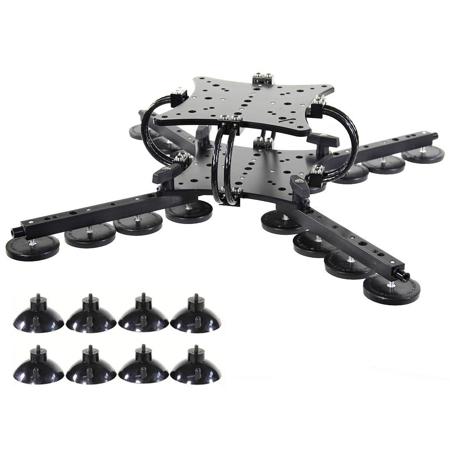

RigWheels Cloud Mount Standard Camera Vibration Isolator System

Appropriate for Mid-size cameras with compact glass. (RED, C300, Fs5 etc )

The RigWheels Cloud Mount camera vibration isolator system is the most practical and versatile vibration isolation system for filmmaking available.

Building on our RigMount XL mounting platform, the Cloud Mount adds a vibration isolator to allow your handheld gimbal to work more effectively and with less strain on its motors and bearings. In the same way that Handheld Gimbal Stabilizers have drastically reduced the time required to achieve smooth dynamic camera movement, the Cloud Mount tremendously reduces the amount of time necessary and the complexity involved with mounting a vibration isolator system to a vehicle.

This is a all-in-one solution and usually requires no additional grip and rigging hardware to implement. Other vibration isolator systems rely extensively on third party rigging and hardware which drastically increases the time necessary to get up and rolling and increases the cost of a working System.

The Cloud Mount (when purchased complete with case) can be deployed to its standard configuration and ready for your gimbal in under one minute. With a small reconfiguration you can change to a "sidecar" or "underslung" position.

Our RigMount magnets are the key to the fast and easy setup of the Cloud Mount. 8 Magnets in the DSLR package provide up to 400lb of pulling force. That is a really large number but in real world conditions it is appropriate measure.

Our "standard" option with 16 magnets provides up to 800lb of pulling force. The magnets are cased in rubber so they won't damage the surface you are mounting to. For some some surfaces suction is necessary and every option includes 8 of our standard suction cups and vacuum suction cups are available for the most demanding applications.

As with all RigWheels products, there are many different ways you can configure components depending on the shot you're trying to achieve. What makes the Cloud Mount markedly unique is the versatility of the parts and the degree of fine-tuning and customization possible. With our patent pending design you can build up the system to accommodate ANY gimbal/camera combination using standard cable "wire rope".

Standard cable requirement for a Ronin-M with DSLR is 4, 1/4" sections of cable. 8, 1/4" sections will support a standard Ronin with a mid to full-size camera. 16, 1/4" sections will support approximately 65 pounds. The vibration isolator of this system can use up to 24 sections of cable of up to 7/16" diameter. Because you are able to "let in" or "let out" the cable, you can fine-tune the resistance necessary for your setup.

You want vibration isolation loose enough to absorb all of the bumps and vibration but strong enough not to fail under the weight of the camera and gimbal. The Clould Mount gives you the ability to find that perfect balance of resistance, not only for the camera and gimbal but also for the terrain on which you will be operating.

If it's not multi-purpose, it's not RigWheels.
The core components of the Cloud Mount are the same core components of many of RigWheels other products. With this system you already have the components for the RigMount X, RigMount XL and RigMount Suction Mount configurations. A $300 upgrade also gives you the additional components for our RailDolly Kit and RigSkate.

We continually build on the functionality and versatility of parts and products and the Cloud Mount is a perfect example of RigWheels goal to provide practical, sensible solutions to a industry with complex production equations.

A gimbal mounting adapter plate is not included with this configuration. Depending on the type of gimbal you have different mounting adapters are available.
