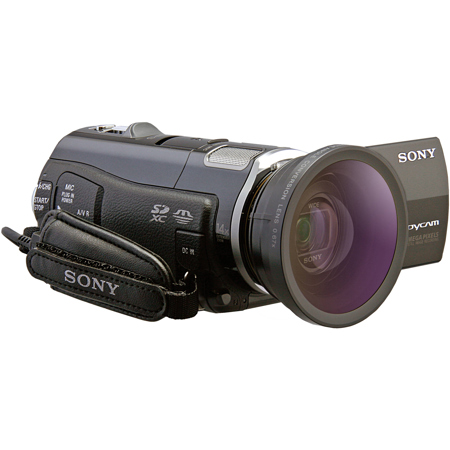

Raynox HDS-680K 0.67x High Definition Wide-angle Conversion Lens for 4K and HDV Camcorders
SKU: RXHDS680K
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Raynox HDS-680K
The HDS-680K wide-angle lens is specifically designed for using effectively with super wide-zoom lens incorporated 4K/HDV camera models. The lens is particularly designed to be in focus through the whole zoom range of up to 10x. The lens is made of the high index optical glass in 2-group/2-element formula and it's made in compact size and lightweight. It achieved a high resolution power of 375 L/mm at center (MTF30%). The five adapter rings of 27mm, 30mm, 30.5mm, 34mm and 43mm come with the lens in the original factory package for use with the same filter sized cameras.
Raynox HDS-680K Features
- Specifically designed for using effectively with Wide-zoom lens incorporated AVCHD camera
- Focusing through the whole zoom range
- 2-Group/2-element High Definition Design
- When used with the camera other than listed on [Applicable Models], it may reduce the power of wide angle
- The HDS-680K lens is a precision optical instrument, assembled with critical alignment tolerances. Do not subject it to severe shock and to the conditions of excessive cold, heat or humidity
- Do not use the built-in flash when the HDS-680K lens is attached on. If you do, the shadow of the lens may show on the picture
- There may be some chances of malfunction of the remote control when used while the HDS-680K lens is on. So, it's recommended to make a rehearsal shooting, before using the remote control system
- Treat and protect carefully in shooting the camera with the HDS-680K lens on. Remove the HDS-680K lens from the camera whenever a shooting is over, and do not carry around the camera with the lens on. It may cause damages or spoil the lens and the camera as well
- With the HDS-680K lens on, usually do focus the camera under Auto Focus mode
- Although you may detect a white dot in the HDS-680K lens sometimes when looking into from the front, but it's not out of normal and would not affect any of image quality
- When mounting the HDS-680K lens onto the High Definition camera, we recommend set the camera vertically and do it carefully
- Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image
- The lens is neither made for dust-free nor moisture/water-proof
