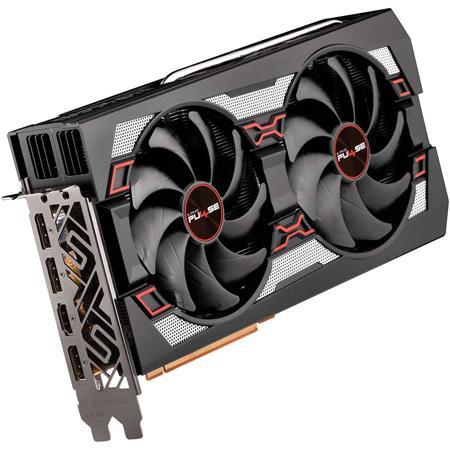

Sapphire Radeon Pulse RX 5700 8GB GDDR6 Graphics Card, PCI-Express 4.0, 1x HDMI and 3x DisplayPort, 1540MHz Base Clock

SKU: SA112940120G

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sapphire Pulse RX 5700 Specifications

  • GPU

    PULSE RX 5700 Graphics
    2nd Gen 7nm GPU
    RDNA Architecture

  • Engine Clock

    Boost Clock: Up to 1750 MHz
    Game Clock: Up to 1700 MHz
    Base Clock: 1540 MHz

  • Stream Processors

    2304

  • Memory Size/Bus

    8GB/256 bit GDDR6

  • Memory Clock

    14 Gbps Effective

  • Displays

    Maximum 4 Displays

  • Resolution

    HDMI: 4096x2160 at 60Hz
    DisplayPort 1.4: 5120x2880 at 60Hz

  • Interface

    PCI-Express 4.0

  • Output

    1x HDMI
    3x DisplayPort

  • BIOS Support

    Dual UEFI

  • API

    Vulkan
    OpenGL 4.6
    OpenCL 2.0
    DirectX 12
    Shader Model 6.4

  • Game Index

    Extreme 1440P

  • Sapphire Functions

    Power Design
    Fan Check
    Free Flow
    TriXX Supported
    TriXX Boost
    Intelligent Fan Control IV
    Precision Fan Control
    Robust VRM Cooling
    Robust Memory Cooling
    Dual-X Cooling Technology
    Tough Metal Backplate
    PCB Layers
    Two-Ball Bearing
    Fan Quick Connect
    Fuse Protection
    Dual BIOS

  • AMD Functions

    RDNA Architecture
    2nd Gen 7nm GPU
    GDDR6 Memory
    Power Efficiency
    PCI Express 4.0 Support
    Video Streaming up to 8K
    Display Port 1.4 (HBR3) / DSC
    Radeon Software
    Radeon Boost
    Radeon Image Sharpening
    Radeon Anti-Lag
    AMD FidelityFx
    Async Compute
    Radeon Rays Audio + True Audio Next
    Radeon FreeSync 2 HDR
    Radeon VR Ready Premium

  • Cooling

    Dual-X Cooling
    Dual Fan
    Two-Ball Bearing

  • Form Factor

    2.3 slot, ATX

  • Power Consumption

    187W

  • OS

    Windows 10, Windows 7 64bit operating system required

  • System Requirement

    Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply)
    1x 8-pin Power Connector
    1x 6-pin Power Connector
    PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
    Minimum 8GB of system memory. 16GB recommended

  • Dimensions

    254 x 135 x 46.5mm (10.00 x 5.31 x 1.83")

About Sapphire Pulse RX 5700

The Sapphire Pulse RX 5700 offers great performance at the affordable price point that every gamer needs. With quality components and a robust digital power design, the Pulse RX 5700 delivers exceptional 1440p performance and high-fidelity gaming powered by AMD's new extreme RDNA architecture. Its finely-tuned Dual-X Cooling Technology not only keeps the GPU, memory and VRM components cool, but also at a very low noise level. The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out and it also helps cool your card by increasing heat dissipation.

Pivotal Sapphire features like the Quick Connect Fan, Dual Bios Support and Power Fuse are all readily available to keep your GPU running smooth and silent. Unleash your full gaming potential and embrace the Sapphire Pulse RX 5700 as the beating heart of your PC!

Sapphire Pulse Graphics Card Features
Explore all the incredible features that come with the Sapphire Pulse RX 5700 Graphics Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you.

Cooltech
Our superior cooling technology to keep your temperatures low at a high frame-rate.

• Intelligent Fan Control
• Precision Fan Control
• Robust VRM Cooling
• Robust Memory Cooling
• Dual-X Cooling Technology

DNA
Our core parts that elevate the life of our products through quality, robustness & reliability.

• Backplate (Tough Metal Backplate)
• Two-Ball Bearing
• Fan Quick Connect
• Fuse Protection
• Dual BIOS

Plus
All of the extra features that make our Sapphire Boards so special and unique.

• Power Design
• Fan Check
• Free Flow
• TriXX Supported
• TriXX Boost

Sapphire Pulse RX 5700 Features

  • Up to 1750MHz Boost clock
  • 8GB 256bit GDDR6
  • 7nm FinFET
  • 2304 Stream Processors
  • Dual-X Cooling Technology
  • Fan Quick Connect

What's in the box:

  • Sapphire Radeon Pulse RX 5700 8GB GDDR6 Graphics Card
  • Sapphire 2 Year Limited Warranty
