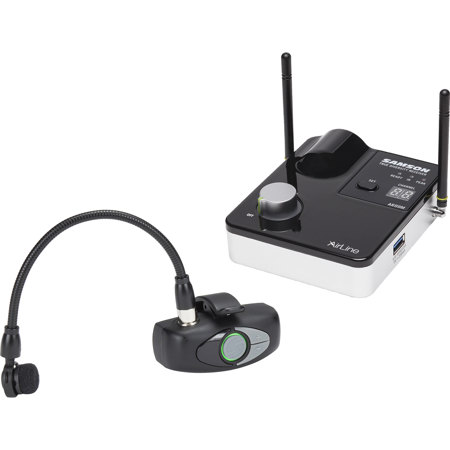

Samson AirLine AWXm Micro UHF Wind Instrument Wireless System, D: 542 to 566 MHz

SKU: SA9A9SHM60D MFR: SW9A9SHM60-D
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system, perfect for dynamic stage performances.
  • Enjoy crystal-clear audio with the supercardioid HM60 condenser microphone, designed for wind instruments.
  • Achieve a reliable wireless connection with a range up to 300ft, ideal for large venues and stages.
  • The included rechargeable battery offers up to 8 hours of performance time, minimizing interruptions.
  • Easily set up your instrument with the clip-on transmitter, ensuring secure and comfortable placement.
  • UHF wireless technology provides a stable signal, reducing dropouts during your crucial performances.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Alexander M : Better price

Reviews about this item

Review Summary

2021-11-19T08:16:53

Rated 4 out of 5

So far, so good

So far I really like this horn microphone. The weight it adds to a trumpet is not prohibitive. I will probably buy a second one for my sax. As far as I know, it's the only one available that doesn't require a battery pack, unless you want to spend over $1K. There have been complaints about the charging cord coming unplugged too easily. Yes, the magnetic attachment is weak, but I consider it a safety feature. If the cord gets tripped on, it's more likely to detach from the microphone, rather than whisk it to the floor (or a puddle of beer, as the case may be).

Joseph D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samson AirLine AWXm Specifications

System
  • Wireless Transmission

    Digital UHF

  • Number of RF Channels

    100

  • Included Transmitters

    1x Clip-On with Microphone

  • Diversity

    True Diversity

  • RF Frequency Band

    D: 542 to 566 MHz

  • RF Bandwidth

    Up to 24 MHz (Region Dependent)

  • Max Operating Range

    300' / 91.4 m (Line of Sight)

  • Max Systems per Setup

    8

  • Dynamic Range

    >100 dB

  • Encryption

    Yes

Receiver

Jump to...
  • Form Factor

    Table-Top

  • Mounting Options

    Tabletop

  • Antenna

    2x 1/4 Wave External, Fixed

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Line Output (Lockable)
    1x 1/4" TS Male Unbalanced Line Output
    1x 1/8" / 3.5 mm TS Male Unbalanced Line Output

  • Audio Output Level

    1/8" / 3.5 mm Output: +14 dBu
    1/4" Output: +14 dBu
    XLR Output: +9 dBu

  • Frequency Response

    50 Hz to 15 kHz

  • USB/Lightning Connectivity

    1x USB Type-A

  • Impedance

    1/8" / 3.5 mm Output: 810 Ohms (Unbalanced)
    1/4" Output: 810 Ohms (Unbalanced)
    XLR Output: 240 Ohms (Balanced)

  • Approximate RF Sensitivity

    100 dBm

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    VDC Included

  • Display & Indicators

    1 x LCD (Channel, Peak)

  • Housing

    ABS

  • Dimensions

    3.4 x 1.5 x 4.3" (8.6 x 3.8 x 10.9cm)

  • Weight

    0.4 lb (181.4g)

  • Weight

    0.4 lb (181.4g)

Transmitter

Jump to...
  • Form Factor

    Clip-On with Microphone

  • RF Output Power

    Up to 10 mW (10 mW Peak)

  • Audio I/O

    None

  • Muting

    Mute Switch

  • Gain Range

    20 dB

  • Sync Method

    IR

  • Power Requirements

    Battery

  • Battery Type

    1x Built-In Rechargeable (Included, Replaceable)

  • Internal Battery Capacity

    500 mAh

  • Approx. Battery Life

    8 Hours (Rechargeable)

  • USB/Lightning Connectivity

    1x Micro-USB (Charging)

  • Display & Indicators

    1x LED (Battery Status)

  • Housing

    ABS

  • Dimensions

    6.7 x 3.9 x 5.9" (17 x 9.9 x 15cm)

  • Weight

    2.1 oz (60g)

Microphone

Jump to...
  • Form Factor

    Integrated

  • Sound Field

    Mono

  • Polar Pattern

    Supercardioid

  • Frequency Range

    20 Hz to 18 kHz

  • Maximum SPL

    125 dB SPL Peak

  • Output Connectors

    1x TA3/Mini XLR

  • UPC Code

    809164222248

About Samson AirLine AWXm

AWXm Wind Instrument system offers the latest in Samson wireless technology by paring the innovative ATX clip-on transmitter with the portable AR99m micro receiver. Unlock the entire stage with a frequency-agile wireless system that can fit in any gig bag.

Relay your sound
The ATX wireless transmitter's inconspicuous design enables easy mounting while providing a gentle but secure clip-on connection to the bell of the instrument. Supporting up to eight hours of rechargeable, cable-free battery life, the ATX transmitter is the perfect compliment to the bell of your instrument.

Mic how you'd like
Capture the sound of your instrument with the HM60 condenser microphone. Designed specifically for live performance, the microphone delivers the dynamic, natural sound of the instrument with a wide 20 Hz to 18 kHz frequency response. Able to handle high sound pressure levels (SPL) of up to 125dB, the HM60 is well suited for close miking brass and woodwind instruments.

The supercardioid polar pattern provides excellent isolation of the instrument while reducing pickup of unwanted ambient sounds. The unique 3-point halo isolation mount minimizes mechanical vibrations and keyclick noises.

Multifunctional, one compact design
The AR99m micro receiver puts an emphasis on functionality and versatility. With a 300' operating range and three output connections (1/4", 1/8" and XLR) the AR99m offers more compatibility while being a fraction of the size of other receivers. Ensure maximum wireless clarity anywhere by scanning the 100 available channels with a simple touch of a button, the AR99m analyzes and selects the clearest channel for your area.

Turn the AR99m into a dual channel system by connecting a Samson XPD Series USB Digital Wireless System (sold separately) or conveniently charge the ATX transmitter with the receiver's USB port.

Samson AirLine AWXm Features

  • AWX Wind Instrument System Features
  • Frequency-agile UHF wireless system
  • 100 operating channels across 24MHz bandwidth
  • Up to eight simultaneous systems per frequency band (region dependent)
  • AC adapter and magnetic transmitter charging cable included
  • AR99m Wireless Micro Receiver Features
  • True RF Diversity micro receiver design minimizes dropouts
  • Set button scans and selects optimal operating channel
  • IR sync wirelessly matches transmitter to receiver frequency
  • Tone key prevents unwanted noise when transmitter is off or out of range
  • Channel and Ready/IR/Peak LED displays
  • Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
  • USB port for adding a Samson XPD Series wireless systems and ATX transmitter charging
  • Rotary volume knob
  • 1/4-wave antennas
  • ATX Wireless Transmitter Features
  • Clips directly to instrument bell (no beltpack or cable required)
  • Up to eight hours of battery life using built-in rechargeable lithium-ion battery
  • Sealed gold contact charging connector
  • Low battery LED indicator
  • 300' operating range (line-of-sight)
  • Variable Gain control
  • One-touch Mute
  • HM60 Wind Instrument Condenser Microphone Features
  • Supercardioid pickup pattern
  • Handles up to 125dB SPL
  • 3-point halo isolation mount
  • 8.5" gooseneck (P3 connector) for optimal mic placement
  • Windscreen included

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system, perfect for dynamic stage performances.
  • Enjoy crystal-clear audio with the supercardioid HM60 condenser microphone, designed for wind instruments.
  • Achieve a reliable wireless connection with a range up to 300ft, ideal for large venues and stages.
  • The included rechargeable battery offers up to 8 hours of performance time, minimizing interruptions.
  • Easily set up your instrument with the clip-on transmitter, ensuring secure and comfortable placement.
  • UHF wireless technology provides a stable signal, reducing dropouts during your crucial performances.

What's in the box:

  • AR99m Wireless Micro Receiver
  • ATX Wireless Transmitter
  • HM60 Wind Instrument Condenser Microphone
  • Windscreen
  • AC Adapter
  • Charging USB Cable
  • Samson 2 Year Limited Warranty and 90 Day Limited Warranty for Rechargeable Batteries
