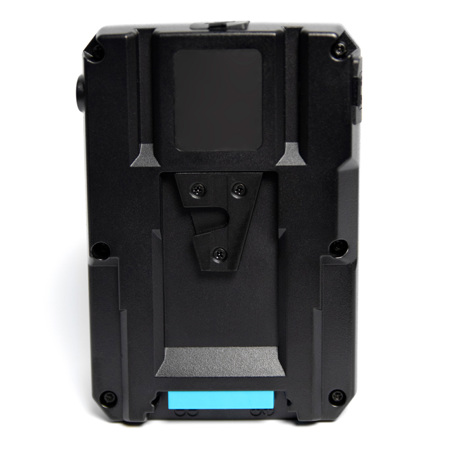

Savage BNP-230WH 230WH 15550mAh Power Lithium-Ion Battery and Charger, V-Mount

The BP-230 High-Power Li-Ion V-Mount Battery has double+ and double- output (a standard battery has 1+ and 1-). The battery main output + and - adopt 2 square millimeter copper terminals. It allows 14A and 160 watt continuous output. Together with a professional 7 terminal V-plate you can achieve more stable and continuous high power output.

This battery is designed for high-power LED video lights, high-power video cameras with accessories, and other heavy load equipment. The battery cells allow 3c discharge; it has low internal resistance and less heat. It is equipped with 2.5A USB output to provide power to USB equipment. The battery life remaining has 8 grade indicator.

Charging
• Max charge current is 6A. Charge this battery under 6A
• It is recommended to charge this battery between 10 Degree C and 30 Degree C/ 50 Degree F and 86 Degree F
• Please use our included D-TAP travel charger or other chargers designed for batteries that meet the specifications of this battery as listed below

Discharging
• The max total continuous discharging power is 160 watts. The main power is 160 watts max. The D-TAP power is 70 watts max. The USB power is 12.5 watts max
• When the main power is discharging at 160 watts full power, the D-TAP and USB cannot be used. If the total power exceeds 160 watts, the protective circuit will be activated and it will stop discharging and may cause damage to the battery. If the fuse is blown due to an overload, the battery will not recover
• The battery life may diminish if high loads are applied frequently
• Battery run time may be reduced in extreme high and low temperature. It is highly recommended to use the battery in ambient temperature of 10 Degree C-40 Degree C/ 50 Degree F-104 Degree F
• The discharge characteristics of this lithium ion battery have a steady discharge curve until 13v
• The battery will automatically stop discharging when the voltage reaches 11v. To extend battery life, we recommended to stop using before the battery reaches 12v
• Please be sure to remove the battery from the device after use. If the battery is left mounted on the device that has standby power, the battery will be exhausted

Capacity Display LEDs
• The remaining battery capacity is displayed with 8 LED bars
• Press the check button and the LED bars will illuminate. The readout will go dark 10 seconds after the button is released to save power
• When the battery reaches the last bar, it will flicker to remind the user to change the battery. When all LEDs are off, the battery will be exhausted
• The capacity remaining is based on battery voltage. It varies according to the load, so it is only for approximate reference

Protection Circuitry
• There are four types of protective circuits to ensure the battery is protected from over charge, over discharge, over current and over heat. If the protection fuse is blown, the battery is no longer operable
• Please charge the battery immediately when the over discharge protection is activated. The battery may become unusable if the battery is not charged immediately

USB
• USB connector for power supply (DC 5V, 2.5A)
• USB power will turn off automatically 10 seconds after the USB cable is removed
• Do not draw power from USB when charging as it may interrupt charging and cause a charge error
• The terminal does not provide data, only power
• The USB power output will not begin to charge the connected device until the battery test button is pressed
