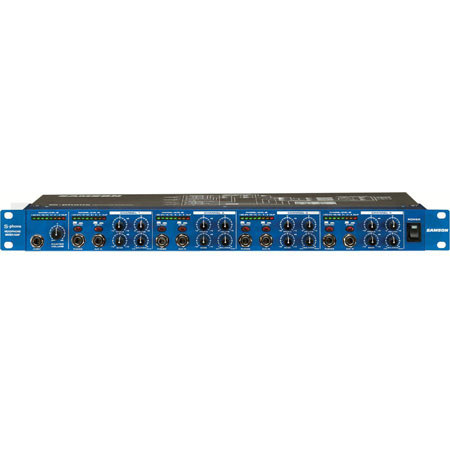

Samson S-Phone Four Channel Headphone Amplifier

The Samson S-Phone is a single rack space four channel headphone amplifier that allows for monitoring any stereo or monophonic source signal (balanced or unbalanced) over as many as twelve separate headphones and is loaded with features that provide tremendous flexibility for monitor and cue mixing.

The master input features an input level and LED meter to control and display the overall stereo input. A master inject input allows for a secondary stereo source to be mixed in with the main input signal. Each of the S-phone's four channels includes three headphone outputs (one on the front panel, two on the rear) with an overall volume control and individual level meters. A stereo auxiliary input is available on each channel so that individual line signals from direct or buss outputs can be mixed with the main stereo input on that channel. The balance control adjusts the ratio of the main and auxiliary signals or the left/right balance (based on the setting of the ST/2CH switch) so that each headphone mix can be further tailored for a particular listener's individual needs.

The S-phone also features a two band equalizer on each of the four channels. Providing unusually high power levels and high audio fidelity, the unit is compatible with virtually all popular headphone models and can be used in a wide variety of applications, including recording studios, teaching labs, broadcast environments and for live performance.
