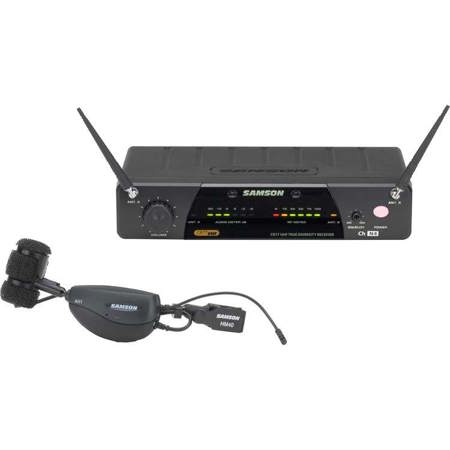

Samson AirLine 77 Wind Instrument True Diversity UHF Wireless System, Includes CR77 Receiver, AH1 Transmitter, HM40 Horn Microphone (K3: 492.425 MHz)

SKU: SASW7AVSW4K3

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson AirLine 77 Specifications

  • Receiver: Frequency

    K3: 492.425 MHz

  • Receiver: Oscillation Type

    PLL

  • Receiver: De-Emphasis

    50 ms

  • Receiver: IF Frequency

    10.7 MHz

  • Receiver: Antennas

    1/4 wavelength rod

  • Receiver: In/Out

    DC inlet
    XLR balanced output
    1/4" (6.3 mm) unbalanced output

  • Receiver: LED Display

    Receiver A/B (green), power on (red), AF level (6 segment), RF level (6 segment)

  • Receiver: Level Control

    Audio level volume, squelch level control

  • Receiver: Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Receiver: Operating Voltage

    12 VDC +/-10%

  • Receiver: Current Consumption

    160 mA (all LED lights illuminated)

  • Receiver: Sensitivity

    18 dBm ( at THD 2%)

  • Receiver: Squelch

    Sensitivity: 0 to 40 dBm (adjustable)

  • Receiver: Selectivity

    +/-150 kHz (AF Out ratio -60 dB)

  • Receiver: Total Harmonic Distortion

    1% max ( at AF 1 kHz, RF 46 dBu)

  • Receiver: Signal to Noise Ratio

    90 dB (with IHF-A filter)

  • Receiver: Residual Noise

    90 dBv (with IHF-A filter)

  • Receiver: AF Frequency Response

    50 Hz to 15 kHz (+/-3 dB overall)

  • Receiver: Audio Output Level

    Unbalanced: 0 dBv
    Balanced (slide switch selectable): -20 dBm (line), -40 dBm (mic)

  • Receiver: Audio Output Impedance

    Unbalanced: 5 kOhms
    Balanced: 600 Ohms

  • Transmitter: Operating Power

    1.5 V typical, 1.05 V minimum, 2 V maximum

  • Transmitter: Current Consumption

    60 mA typical

  • Transmitter: Battery Life

    14 hours (AAA size battery)

  • Transmitter: RF Output Power

    5 mW (-4 dB minimum, +3 dB maximum)

  • Transmitter: Frequency Stability

    -40 kHz minimum, 40 kHz maximum

  • Transmitter: Spurious

    1 MuW

  • Transmitter: Modulation

    13 kHz minimum, 15 kHz typical, 17 kHz maximum, input 1 kHz-20 dBv

  • Transmitter: Input Impedance

    Microphone: 2 kOhms

  • Transmitter: Total Harmonic Distortion

    <2% (1 kHz deviation 15 kHz)

  • Transmitter: Audio Frequency Response

    50 Hz to 15 kHz (+/-3.5 dB)

  • Transmitter: Controls

    Power switch, mute switch volume

  • Transmitter: Input

    2.5mm Stereo Jack

  • Transmitter: Indicators

    Power on (LED flash), low battery (LED on)

  • UPC Code

    809164218784

About Samson AirLine 77

The AirLine 77 Wind Instrument System offers a true wireless experience with no beltpacks and no cables, allowing complete freedom of mobility. The system includes an AH1 transmitter mounted to a Samson HM40 condenser element, along with the CR77 receiver. The AirLine Wind Instrument System features an AH1 transmitter mounted to a SamsonHM40 condenser element used by many of today's top horn players. Both systems allow the performer to mount the element and transmitter to the bell of the instrument with no packs or wires to hinder their performance.

All of the AirLine transmitters operate on inexpensive and lightweight AAA batteries that offer 14 hours of operation on a single battery. The core of the receiver system is the CR77 true-diversity half-rack UHF receiver. It works flawlessly with all AirLine UHF transmitters. Featuring a front panel display with large multi-segment audio level and RF level LED meters and a large rotary volume knob that allows easy adjustment of audio output, the CR77 takes all of the guesswork out making your wireless system perform.

Its synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The rear panel features balanced XLR and unbalanced 1/4-inch outputs allowing flexible connection options. In addition, two CR77 receivers can be rackmounted together in a single space rack adapter available as an added accessory. With AirLine 77 Wind Instrument System, you get complete wireless freedom that's good to go anywhere the music takes you.

Samson AirLine 77 Features

  • True diversity UHF wireless wind instrument system with PLL frequency control
  • CR77 receiver features multi-segment audio level and RF level LED meters
  • Squelch and volume control
  • XLR and unbalanced 1/4-inch outputs with mic/line level output switch
  • AH1 transmitter features power/battery LED, power switch and mute switch
  • HM40 condenser horn microphone employs cardioid pickup pattern for outstanding sound
  • Horn bell clamp included for easy attachment of entire AH1/HM40 assembly to horn
  • AC adapter and 1/4-inch to 1/4-inch cable included

What's in the box:

  • Samson CR77 UHF Diversity Receiver
  • AH1 Transmitter
  • HM40 Horn Microphone
  • Horn Bell Clamp
  • AC Power Supply
  • 1/4 " to 1/4 " Phone Cable
  • Samson 2 Year Limited Warranty
