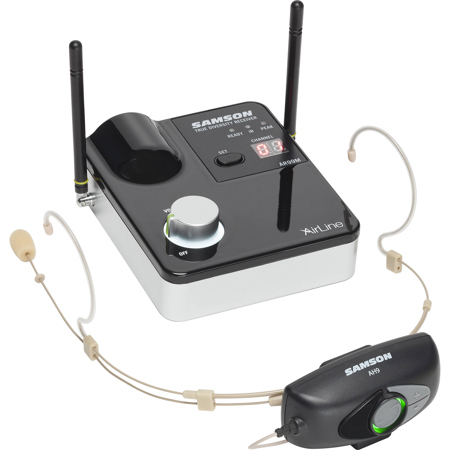

Samson AirLine 99m Wireless System, Includes DE10x Low-Profile Headset Microphone, AR99m UHF Micro Receiver, AH9 Micro Transmitter, Frequency Band D: 542 to 566MHz

SKU: SASW9A9SDE1D

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the operating range of the AH9 micro transmitter?

The AH9 micro transmitter offers an impressive operating range of 300 feet.

What is the frequency band of the Samson AirLine 99m AH9 Headset system?

The system operates on the 542-566 MHz frequency band.

What features does the AR99m micro receiver offer?

The AR99m micro receiver offers frequency-agile UHF operation, a set button for scanning and selecting optimal channel options, and versatile output connectors. It also includes a USB port for charging the AH9 transmitter or integrating a Samson XPD Series wireless system.

What is the battery life of the AH9 micro transmitter?

The AH9 micro transmitter has an 8-hour battery life using the built-in rechargeable lithium-ion battery.

What is the IP rating of the DE10x headset microphone?

The DE10x headset microphone has an IP65 rating, making it resistant to dust and water/sweat.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson AirLine 99m System Specifications

System
  • Wireless Transmission

    Digital UHF

  • Number of RF Channels

    100

  • Included Transmitters

    1 x Headworn with Microphone

  • Diversity

    True Diversity

  • RF Frequency Band

    D: 542 to 566 MHz

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Systems per Setup

    8

  • Dynamic Range

    >100 dBA

  • Encryption

    No

  • Pilot Tone

    35 kHz

Receiver

Jump to...
  • Form Factor

    Table-Top

  • Mounting Options

    Tabletop

  • Antenna

    2x 1/4 Wave External, Fixed (Side-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output
    1x 1/8" / 3.5 mm TS Female Unbalanced Output

  • Audio Output Level

    XLR Output: +9 dBu (Balanced)
    1/4" Output: +14 dBu (Unbalanced)

  • Frequency Response

    50 Hz to 15 kHz

  • USB Port

    1x USB Type-A (Charging, Host Connection)

  • Impedance

    XLR Output: 240 Ohms (Balanced)
    1/4" Output: 810 Ohms (Unbalanced)

  • Approximate RF Sensitivity

    -100 dBm

  • Adjacent Channel Isolation

    >50 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    15 VDC at 600 mA, Center-Positive (Included)

  • Display & Indicators

    1x Multi-Segment LED (Channel)
    1x LED (Sync)
    1x LED (Peak)

  • Operating Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

Transmitter

Jump to...
  • Form Factor

    Headworn with Microphone

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x Proprietary Input

  • Pad

    No

  • Gain Range

    Up to 20 dB

  • Signal Processing

    No

  • Frequency Response

    50 Hz to 15 kHz

  • Sync Method

    IR

  • Antenna

    1x Internal

  • Power Requirements

    Battery

  • Battery Type

    1x Built-In Rechargeable (Included)

  • Approx. Battery Life

    8 Hours

  • USB Port

    No

  • Display & Indicators

    1x LED (Battery Status, Mute, Recharging, Sync)

Microphone

Jump to...
  • Form Factor

    Headworn

  • Sound Field

    Mono

  • Operating Principle

    Pressure Operated

  • Transducer

    Electret Condenser

  • Diaphragm

    0.12" (3mm)

  • Polar Pattern

    Omnidirectional

  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    120 dB SPL

  • Impedance

    2 kOhms +/- 30%

  • Sensitivity

    -45 dBV/Pa at 1 kHz

  • Operating Voltage

    1.5 to 12 V

General

Jump to...
  • Dimensions

    Receiver: 3.7 x 1.5 x 4.3" (9.40 x 3.81 x 10.92cm) (without Antennas)
    Transmitter: 6.7 x 3.9 x 5.9" (17.02 x 9.91 x 14.99cm)

  • Weight

    Receiver: 6.8 oz (192.78g)
    Transmitter: 2.1 oz (59.53g)
    Microphone: 0.24 oz (6.80g)

About Samson AirLine 99m System

Take your presentations to the next level with the Samson AirLine 99m AH9 Headset system. This high-quality, professional-grade wireless microphone system is specifically designed to cater to the needs of singers, presenters, educators, and interviewers. It features a compact, user-friendly design that combines the AH9 micro transmitter and AR99m micro receiver with a low-profile DE10x headset microphone, offering a durable, rechargeable setup that delivers high-definition sound without the need for cables or beltpacks.

Operating on a frequency-agile UHF wireless system, the AirLine 99m offers 100 operating channels across a 24MHz bandwidth. It can support up to 8 simultaneous systems per frequency band, depending on the region, ensuring a stable and reliable performance. The system operates on the 542-566 MHz frequency band, a range less likely to experience interference from other wireless devices.

The AH9 micro transmitter, a revolutionary product from Samson, is directly mounted on the included DE10x headset, eliminating the need for beltpacks and cables. This feature makes it an ideal choice for active performers. The transmitter offers an impressive 300' operating range and comes with easily accessible Gain and Mute controls, a battery life LED indicator, and an 8-hour rechargeable lithium-ion battery.

The AR99m micro receiver, a true RF Diversity design, minimizes dropouts and provides 100 available channels for secure wireless performance. It features a set button for scanning and selecting optimal channel options, IR sync for wirelessly matching the transmitter to the receiver frequency, and versatile output connectors. The receiver also includes a USB port for charging the AH9 transmitter or integrating a Samson XPD Series wireless system.

The system includes a DE10x headset microphone, perfect for a variety of live vocal applications. The DE10x features a low-profile, double ear headset design with an easily adjustable frame and mic boom for a secure, comfortable fit and optimal mic placement. The DE10x's gold-plated connector, moisture-resistant coating, and stainless steel mesh grille all contribute to an IP65 rating for being dust and water/sweat-resistant. With an omnidirectional pickup pattern, the DE10x's 3mm miniature mic capsule captures sound evenly in all directions, ensuring no proximity effect or off-axis coloration.

In summary, the Samson AirLine 99m AH9 Headset system offers a seamless, high-quality audio experience, making it an excellent choice for professionals in various fields.

Samson AirLine 99m System Features

  • High-quality, professional-grade wireless microphone system, perfect for singers, presenters, educators, and interviewers
  • Frequency-agile UHF system operating on 542-566 MHz band, offering 100 operating channels across 24MHz bandwidth
  • Compact AH9 micro transmitter mounted directly on the DE10x headset, eliminating the need for beltpacks and cables
  • AR99m micro receiver with True RF Diversity design, ensuring reliable wireless performance and minimal dropouts
  • DE10x low-profile headset microphone with an omnidirectional pickup pattern, capturing sound evenly in all directions
  • Durable and user-friendly design with an IP65 rating for dust and water/sweat resistance, ideal for active performers

Product Documents

User Manual

What's in the box:

  • Samson DE10x Low-Profile Headset Microphone
  • AR99m UHF Micro Receiver
  • AH9 Micro Transmitter
  • 4x Windscreens
  • AC Adapter
  • USB Charger
  • Samson 2 Year Limited Warranty (90 Day on Rechargeable Battery)
