What does the IR sync feature do on the AG8 Guitar Transmitter?

The IR sync feature on the AG8 Guitar Transmitter allows the receiver and transmitter frequencies to wirelessly match, ensuring a clear, uninterrupted signal for superior sound quality during performances.

How long can the AG8 Guitar Transmitter operate on a single AA battery?

The AG8 Guitar Transmitter can operate for up to 12 hours on a single AA battery, making it ideal for long performances or practice sessions.

Can the AG8 Guitar Transmitter be used with any type of guitar?

Yes, the AG8 Guitar Transmitter is designed with a versatile plug that can be configured to accommodate both Fender Stratocaster-type (angled) recessed jacks and all other instruments with end mount-jacks.

What is the purpose of the audio Mute switch on the AG8 Guitar Transmitter?

The audio Mute switch on the AG8 Guitar Transmitter allows for silent instrument swaps during live performances, preventing any unwanted noise during the transition.

How user-friendly is the AG8 Guitar Transmitter?

The AG8 Guitar Transmitter is as easy to use as a standard guitar cable. Simply plug the compact transmitter into your instrument and connect the receiver to your amp. It's designed to be user-friendly and enhance your stage performance by providing wireless freedom.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson AG8 Specifications

System
  • Wireless Transmission

    Analog UHF

  • RF Frequency Band

    K: 470 to 494 MHz

  • RF Bandwidth

    24 MHz

  • Max Operating Range

    300' (91.4m) (Line of Sight)

AG8 Transmitter

Jump to...
  • Form Factor

    Plug-On

  • RF Output Power

    5 mW

  • Audio I/O

    1x 1/4" 2-Pin Male Input

  • Muting

    Off/On Switch

  • Gain Range

    30 dB

  • Frequency Response

    50 Hz to 15 kHz

  • Sync Method

    IR

  • Antenna

    1x Internal

  • Power Requirements

    Battery

  • Battery Type

    1x AA (Not Included)

  • Approx. Battery Life

    12 Hours (Alkaline)

  • Display & Indicators

    1x LED (Battery Status, Mute, Peak)

  • Dimensions

    1.6 x 4.5 x 1.2" (40 x 114 x 30mm)

  • Weight

    1.8 oz (50g)

  • UPC Code

    809164218166

About Samson AG8

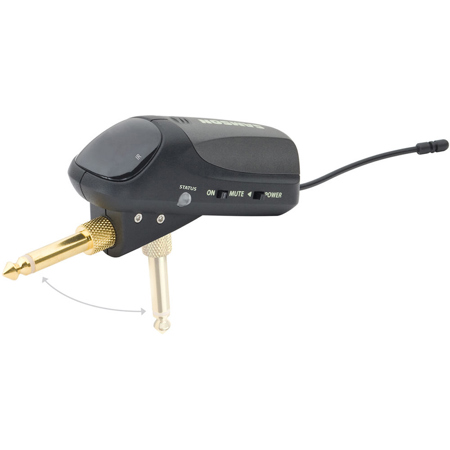

Where freedom of movement and audience interaction are paramount, the AG8 Guitar Transmitter for AirLine 88 Wireless System, K Band: 470-494MHz, offers a compact and unobtrusive solution. Designed to function as an integral extension of your instrument, this plug-in transmitter liberates you from the constraints of traditional wired systems, enabling a dynamic stage presence.

The AG8 Guitar Transmitter boasts an IR sync feature, which seamlessly matches the receiver and transmitter frequencies wirelessly. This ensures a clear, uninterrupted signal, enhancing your performance with superior sound quality. An audio Mute switch is also incorporated, facilitating silent instrument swaps during live performances, while a battery life LED indicator keeps you informed about the power status.

Offering up to 12 hours of operation on a single AA battery, the AG8 is as user-friendly as a standard guitar cable. Simply plug the compact transmitter into your instrument and connect the receiver to your amp - it's as straightforward as that.

The AG8's plug is uniquely versatile, designed to accommodate both Fender Stratocaster-type (angled) recessed jacks and a second position for all other instruments with end mount-jacks. To configure the AG8 for either Fender Stratocaster (angled jack) or flat jack style guitars, simply remove the thumbscrew, unscrew the plug, and reinstall the two components while swapping their positions.

In essence, the AG8 Guitar Transmitter for AirLine 88 Wireless System, K Band: 470-494MHz, is a compact, easy-to-use solution that enhances your stage performance by providing wireless freedom, superior sound quality, and versatile compatibility.

Samson AG8 Features

  • Plugs directly into guitar jack (no beltpack or cable required)
  • Dual-position connector fits a variety of guitar jacks
  • Offers up to 12 hours of battery life using single AA battery
  • Low battery LED indicator
  • 300' operating range (line-of-sight)
  • Variable Gain control
  • Mute switch

Product Documents

User Manual

Key Features

  • Audio Mute switch for silent instrument swaps during live performances
  • Battery life LED indicator and up to 12 hours of operation on a single AA battery

What's in the box:

  • AG8 Guitar Transmitter
  • Miniature Screwdriver for Gain Adjustment
