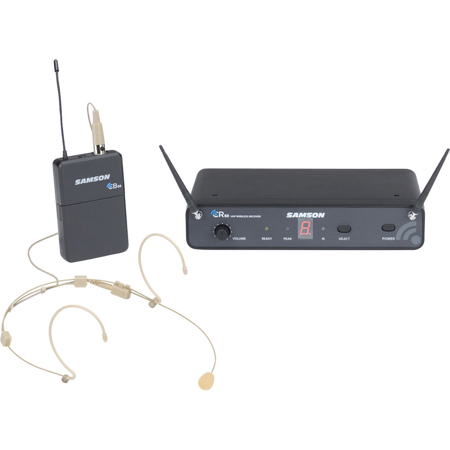

Samson Concert 88 16-Channel UHF Wireless System, Includes DE10 Micro Headset Microphone, Receiver, Beltpack Transmitter, Frequency Band D: 542 to 566MHz

SKU: SASWC88BDE1D

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson Concert 88 System Specifications

System
  • Wireless Transmission

    Digital UHF

  • Number of RF Channels

    16

  • Included Transmitters

    1 x Bodypack with Microphone

  • Diversity

    True Diversity

  • RF Frequency Band

    D: 542 to 566MHz

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Systems per Setup

    16

  • Dynamic Range

    >100 dBA

  • Encryption

    None

  • Pilot Tone

    32.768 kHz

Receiver

Jump to...
  • Form Factor

    Table-Top

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x External, Fixed (Front-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    XLR Output:
    +9 dBu (Balanced)
    1/4" Output:
    +14 dBu (Unbalanced)

  • Frequency Response

    50 Hz to 15 kHz

  • Impedance

    XLR Output: 240 Ohms (Balanced)
    1/4" Output: 810 Ohms (Unbalanced)

  • Approximate RF Sensitivity

    -100 dBm

  • Adjacent Channel Isolation

    >50 dB

  • Power Requirements

    AC Input

  • AC/DC Power Adapter

    15 VDC at 200 mA, Center-Positive (Included)

  • Display & Indicators

    1 x Multi-Segment LED (Channel)
    1 x LED (RF Level)
    1 x LED (Clip)

  • Operating Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

Transmitter

Jump to...
  • Form Factor

    Bodypack with Microphone

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA3/Mini XLR 3-Pin Male Balanced Input

  • Gain Range

    Up to 38 dB

  • Frequency Response

    50 Hz to 15 kHz

  • Sync Method

    IR

  • Antenna

    1x External, Fixed

  • Power Requirements

    Battery

  • Battery Type

    2x AA (Not Included)

  • Approx. Battery Life

    8 Hours (Alkaline)

  • Display & Indicators

    1 x LED (Battery Status, Mute, Sync)

  • Operating Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

Microphone

Jump to...
  • Form Factor

    Headworn

  • Sound Field

    Mono

  • Operating Principle

    Pressure Operated

  • Transducer

    Electret Condenser

  • Diaphragm

    0.12" / 3 mm

  • Polar Pattern

    Omnidirectional

  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    120 dB SPL

  • Impedance

    2 kOhms +/- 30%

  • Sensitivity

    -45 dB at 1 kHz

  • Output Connectors

    1 x TA3/Mini XLR 3-Pin Female Balanced

  • Cable Length

    3.94' (1.2m)

  • Operating Voltage

    1.5 to 12 V

General

Jump to...
  • Dimensions

    Receiver: 8.3 x 1.8 x 4.9" (21.08 x 4.57 x 12.45cm) (without Antennas)
    Transmitter: 2.4 x 3.8 x 0.8" (6.10 x 9.65 x 2.03cm) (without Antennas)

  • Weight

    Receiver: 13.7oz (388.39g)
    Transmitter: 3.3oz (93.55g)
    Microphone: 0.46oz (13.04g)

  • UPC Code

    809164215400

About Samson Concert 88 System

Samson's Concert 88 Micro Headset Wireless System offers a high-performance UHF wireless solution where the freedom of mobility is a must. It's perfect for singers, dancers, DJs, business professionals and others looking for stunning sound and versatility without cables.

The frequency-agile Concert 88 Micro Headset allows for up to 16 systems to operate simultaneously across two frequency bands with up to 300' separating the receiver and transmitter. At the core of the system is the CR88 Wireless Receiver. Featuring a true diversity design, the CR88 minimizes signal dropouts during performance. If a dropout does occur, the CR88's tone key and auto mute functions eliminate any background noise until the signal is restored.

The CR88 receiver's front panel provides a Select button for auto syncing receiver and transmitter channels via an infrared signal. The panel also features a 7-segment Channel LED, Volume knob, Power button, two tuned antennas, as well as Audio and Ready indicators, for optimal functionality and monitoring. Balanced XLR and 1/4" outputs can be found on the receiver's back panel.

The Concert 88 Micro Headset features the CB88 Beltpack Transmitter and DE10 Headset Microphone with Miniature Condenser Capsule. The transmitter, which can operate for up to eight hours on two AA batteries, is engineered to the finest detail to provide the ultimate in sound reproduction. With Samson's Concert 88 Micro Headset Wireless System, advanced technology and total versatility combine to provide high-quality wireless performance wherever singers, dancers, DJs, business professionals and others need it.

Concert 88 Micro Headset System
• High-performance professional UHF wireless system
• Rackmount kit included

CR88 Wireless Receiver
•True diversity design minimizes dropouts
• Up to 16 systems can be operated simultaneously across two frequency bands
• Tone key and auto mute functions eliminate background noise during dropouts
• Infrared set links the receiver and transmitter channels
• Balanced XLR and 1/4" outputs

CB88 Beltpack Transmitter
• DE10 Headset Microphone with Miniature Condenser Capsule
• Offers up to eight hours of battery life using two AA batteries
• 300' operating range

What's in the box:

  • Samson DE10 Micro Headset Microphone
  • Concert 88 Receiver
  • Concert 88 Beltpack Transmitter
  • Rackmount Kit
  • AC Adapter
  • 1/4 " Cable
  • Samson 2 Year Limited Warranty
