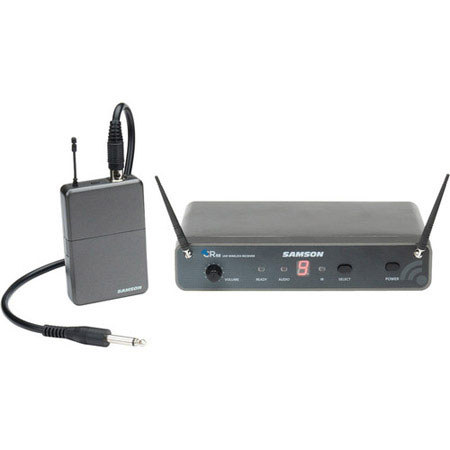

Samson Concert 88 Guitar Wireless System, Includes CR88 Wireless Receiver, CB88 Belt Pack Transmitter, Rackmount Kit, Guitar Cable, Band D/542-560MHz

SKU: SASWC88BGTD

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson SWC88BGT Specifications

  • Frequency Band

    Band D/542-560MHz

  • Working Range

    300' (100m) line of sight

  • Audio Frequency Response

    50 Hz - 15 kHz

  • T.H.D. (Overall)

    <1% ( at AF 1 kHz, RF 46 dBu)

  • Dynamic Range

    >100 dB A-weighted

  • Signal to Noise

    >90 dB

  • Operating Temperature

    -10deg.C (14deg.F) to +60deg.C (+140deg.F)

  • Tone Key Frequency

    32.768 kHz

  • CB88 Transmitter: Input Connector

    Mini-XLR (P3)

  • CB88 Transmitter: Input Impedance

    1MOhms

  • CB88 Transmitter: Input Gain Range

    38 dB

  • CB88 Transmitter: RF Power

    10 mW EIRP

  • CB88 Transmitter: Power Requirements

    Two AA (LR6) alkaline batteries

  • CB88 Transmitter: Battery Life

    8 hours

  • CR88 Receiver: Audio O/P Level

    Unbalanced: +14 dBu
    Balanced: +9 dBu

  • CR88 Receiver: Audio Output Impedance

    Unbalanced: 810 Ohms
    Balanced: 240 Ohms

  • CR88 Receiver: Sensitivity

    -100 dBm / 30 dB sinad

  • CR88 Receiver: Image Rejection

    >50 dB

  • CR88 Receiver: Operating Voltage

    15 VDC 200mA

  • Dimensions

    CB88 Transmitter: 3.75 x 2.44 x 0.75" / 9.52 x 6.19 x 1.90cm
    CR88 Receiver: 8.25 x 4.9 x 1.75" / 20.95 x 12.44 x 4.44cm

  • Weight

    CB88 Transmitter: 0.2 lb / 0.09 kg
    CR88 Receiver: 0.85 lb / 0.38 kg

About Samson SWC88BGT

The Samson Concert 88 Guitar Wireless System (Band D/542-560MHz) offers a high performance UHF wireless solution where the freedom of mobility is a must. It's perfect for guitarists, bassists and other stringed instruments looking for stunning sound and versatility without cables.

The frequency-agile Concert 88 system allows for up to 16 systems to operate simultaneously across two frequency bands with up to 300 feet separating the receiver and transmitter. At the core of the system is the CR88 Wireless Receiver. Featuring a true diversity design, the CR88 minimizes signal dropouts during performance. If a dropout does occur, the CR88's tone key and auto mute functions eliminate any background noise until the signal is restored.

The CR88 receiver's front panel provides a Select button for auto syncing receiver and transmitter channels via an infrared signal. The panel also features a 7-segment Channel LED, Volume knob, Power button, two tuned antennas as well as Audio and Ready indicators, for optimal functionality and monitoring. Balanced XLR and 1/4-inch outputs can be found on the receiver's back panel.

The Concert 88 Guitar System features the CB88 Beltpack Transmitter and GC32 Guitar Cable with a locking connector. The transmitter, which can operate for up to eight hours on two AA batteries, is engineered to the finest detail to provide the ultimate in sound reproduction. With Samson's Concert 88 Guitar System, advanced technology and total versatility combine to provide high quality wireless performance wherever guitarists, bassists and other stringed instruments need it.

Samson SWC88BGT Features

  • High performance professional UHF wireless system
  • CR88 Wireless Receiver: True diversity design minimizes dropouts
  • CR88 Wireless Receiver: Up to 16 systems can be operated simultaneously across two frequency bands
  • CR88 Wireless Receiver: Tone key and auto mute functions eliminate background noise during dropouts
  • CR88 Wireless Receiver: Infrared set links the receiver and transmitter channels
  • CR88 Wireless Receiver: Balanced XLR and 1/4-inch outputs
  • CB88 Beltpack Transmitter: GC32 Guitar Cable with locking connector
  • CB88 Beltpack Transmitter: Transmitter offers up to eight hours of battery life using two AA batteries
  • CB88 Beltpack Transmitter: 300-foot operating range

Product Documents

User Manual

Key Features

  • High performance professional UHF wireless system
  • CR88 Wireless Receiver
  • CB88 Beltpack Transmitter

What's in the box:

  • Samson CR88 Wireless Receiver
  • CB88 Belt Pack Transmitter
  • Rackmount Kit
  • Guitar Instrument Cable
  • Samson Warranty
