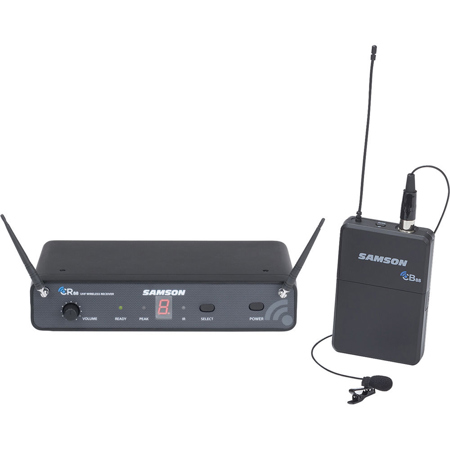

Samson Concert 88 Lavalier 16-Channel True Diversity UHF Wireless Presentation System, Includes CB88 Beltpack Transmitter, CR88 Wireless Receiver and LM10 Lavalier Microphone, Frequency Band K: 470 to 494MHz

SKU: SASWC88BL10K

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samson Concert 88 LM10 Lavalier Specifications

System
  • Transmission Frequency

    K: 470 to 494 MHz

  • Operating Range

    300' (91.44m)

  • Frequency Response

    50 Hz to 15 kHz

  • THD

    < 1% at AF 1,000 Hz, RF 46 dBu

  • Dynamic Range

    > 100 dB A-weighted

  • Signal / Noise

    > 90 dB

  • Operating Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Tone Key

    32.768 kHz

Bodypack Transmitter

Jump to...
  • Input Connector

    Mini-XLR (P3)

  • Input Impedance

    1MOhms

  • Input Gain

    38 dB

  • RF Power

    10 mW EIRP

  • Power Requirements

    Two AA (LR6) alkaline batteries

  • Battery Life

    8 hours

  • Sync System

    Infrared

Receiver

Jump to...
  • Type

    UHF

  • Audio Output Level

    Unbalanced: +14 dBu
    Balanced: +9 dBu

  • Audio Output Impedance

    Unbalanced: 810 Ohms
    Balanced: 240 Ohms

  • Sensitivity

    -100 dBm / 30 dB sinad

  • Image Rejection

    > 50 dB

  • Operating Voltage

    15 VDC 200 mA

Microphone

Jump to...
  • Microphone Type

    LM10 lavalier microphone with locking mini-XLR (P3) connector

General

Jump to...
  • Dimensions

    Bodypack Transmitter (HxWxD): 3.75 x 2.44 x 0.75" (9.53 x 6.20 x 1.91cm)
    Receiver (LxWxH): 8.25 x 4.9 x 1.75" (20.96 x 12.45 x 4.45cm)

  • Weight

    Bodypack Transmitter: 0.2 lbs (0.09kg)
    Receiver: 13.7 oz (388.39g)

  • UPC Code

    809164219118

About Samson Concert 88 LM10 Lavalier

Discover the unparalleled performance of the Concert 88 Lavalier 16-Channel True Diversity UHF Wireless Presentation System. This advanced system, designed for professionals, educators, and anyone in need of a high-quality wireless audio solution, offers the freedom of mobility without the constraints of cables.

The Concert 88 Lavalier system operates within a wide frequency band of 470-494 MHz, allowing for up to 16 systems to function simultaneously (region dependent), with a remarkable range of up to 300 feet between the receiver and transmitter. This ensures seamless, uninterrupted audio transmission, even in larger venues or complex setups.

At the heart of this system is the CR88 Wireless Receiver. Its true diversity design minimizes signal dropouts during performance, ensuring reliable and consistent audio delivery. In the event of a signal dropout, the CR88's tone key and auto mute functions effectively eliminate any background noise until the signal is restored, maintaining the integrity of your presentation or performance.

The CR88 receiver's user-friendly front panel is equipped with a Select button for auto syncing receiver and transmitter channels via an infrared signal. It also features a 7-segment Channel LED, Volume knob, Power button, two tuned antennas, and Audio and Ready indicators, providing optimal functionality and easy monitoring.

The system also includes the CB88 Beltpack Transmitter and the LM10 Omnidirectional Lavalier Microphone, both known for their durability and high-quality sound reproduction. The transmitter, which can operate for up to eight hours on two AA batteries, is meticulously engineered to deliver the ultimate in sound reproduction.

Experience the combination of advanced technology and total versatility with the Concert 88 Lavalier 16-Channel True Diversity UHF Wireless Presentation System, your all-in-one solution for superior wireless audio performance.

Samson Concert 88 LM10 Lavalier Features

  • Concert 88 LM10 Presentation System:
  • High-performance professional UHF wireless system
  • Rackmount kit included
  • CR88 Wireless Receiver:
  • True diversity design minimizes dropouts
  • Up to 16 systems can be operated simultaneously (region dependent)
  • Tone key and auto mute functions eliminate background noise during dropouts
  • Infrared set links the receiver and transmitter channels
  • Balanced XLR and 1/4" outputs
  • CR88 Beltpack Transmitter:
  • LM10 Omnidirectional Lavalier Microphone with locking connector
  • Offers up to eight hours of battery life using two AA batteries
  • 300' operating range

Product Documents

User Manual

Key Features

  • True diversity CR88 Wireless Receiver minimizes signal dropouts, ensuring reliable performance
  • Easy channel syncing with a Select button and infrared signal for effortless setup
  • Durable CB88 Beltpack Transmitter and LM10 Lavalier Microphone for high-quality sound reproduction
  • Long-lasting transmitter operation with up to eight hours on two AA batteries for extended use
  • Versatile connectivity with balanced XLR and 1/4" outputs, compatible with various audio setups

What's in the box:

  • Samson CB88 Beltpack Transmitter
  • CR88 Wireless Receiver
  • LM10 Lavalier Microphone with Locking Mini-XLR (P3) Connector
  • Power Supply
  • 1/4 " Audio Cable
  • Rackmount Kit
  • Tie Clip
  • Samson 2 Year Limited Warranty
