D: 542-562MHz
300' (91.4 m)
50 to 15,000 Hz
< 1% at AF 1,000 Hz, RF 46 dBu
> 100 dB A-weighted
> 90 dB
14 to 140 deg. F (-10 to 60 deg. C)
32,768 kHz
Mini-XLR (P3)
1 MOhm
38 dB
10 mW EIRP
Two AA (LR6) alkaline batteries
8 hours
Infrared
UHF
Unbalanced: +14 dBu
Balanced: +9 dBu
Unbalanced: 810 Ohm
Balanced: 240 Ohm
-100 dBm / 30 dB sinad
> 50 dB
15 VDC 200 mA
Receiver: 8.25 x 4.9 x 1.75" (210 x 125 x 44.5 mm)
Bodypack Transmitter: 3.75 x 2.44 x 0.75" (95.3 x 62 x 19.05 mm)
Receiver: 0.85 lbs (0.38 kg)
Bodypack Transmitter: 0.2 lbs (0.090 kg)
809164211136

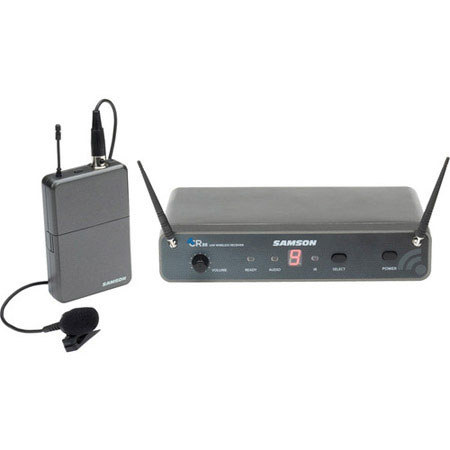

The Samson Concert 88 Lavalier UHF Wireless Microphone Presentation System (D: 542-562MHz) is designed for live sound reinforcement applications wherein the guitarist wants to be free to move around and play wirelessly. The system consists of a half-rack UHF receiver, a beltpack transmitter and a GC32 guitar cable. The receiver features a true diversity dual-antenna design whereby internal signal processing switches to the antenna that is receiving a stronger signal. This helps to prevent drop-outs and maintain a more accurate transmission. The unit includes a tone key and an auto-mute function to eliminate noise if the receiver ever looses the signal.
For controls, the receiver features a power button, volume knob, select button, a 7-segment channel indicator LED, as well as audio ready, peak and IR indicator lights. Up to 16 of these systems may operate simultaneously on two frequency bands from a maximum operating range of 300 feet. The beltpack transmitter is synced with the receiver via infrared. It can operate for up to eight hours on two AA batteries.
