29% Off

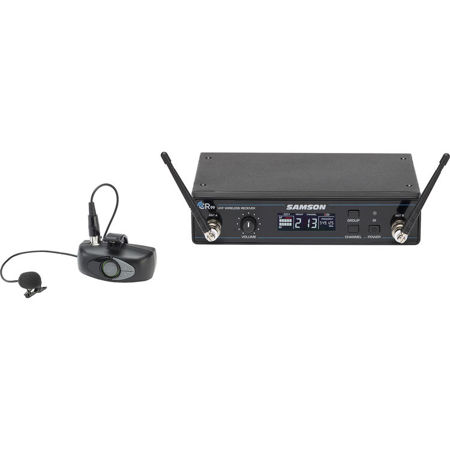

Samson Airline ALX Lavalier UHF Wireless System, Includes CR99 Receiver, ATX Micro Transmitter and LM8 Lavalier Microphone Capsule, Frequency K: 470 to 494MHz

SKU: SASWSATXLM8K MFR: SWSATXLM8-K
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless lavalier microphone system, perfect for dynamic presentations.
  • Capture crystal-clear audio with the LM8 lavalier microphone, ideal for interviews and film projects.
  • Enjoy a reliable 300' range, ensuring your wireless microphone performs during any stage performance.
  • The CR99 receiver's rackmount kit integrates seamlessly into your existing audio setup for convenience.
  • With a 6-hour battery life, this wireless microphone system supports long events and recording sessions.
  • The ATX transmitter's mini-XLR connector provides a secure, professional-grade audio input solution.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson Airline ALX Specifications

System
  • Frequency Range

    K: 470 to 494MHz

  • Working Range

    300' (100m) line of sight

  • Audio Frequency Response

    50 Hz - 15 kHz

  • T.H.D.

    <1% (At AF 1 kHz, RF 46 dBu) (Overall)

  • Dynamic Range

    >100 dB A-weighted

  • Signal to Noise

    >95 dB

  • Operating Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

  • Tone Key Frequency

    32.768 kHz

ATX Microphone Transmitter

Jump to...
  • Input Connector

    Mini-XLR (P3)

  • Input Impedance

    3kOhms

  • Input Gain Range

    20dB

  • RF Power

    10mW EIRP

  • Power Requirements

    3.6V 500mAh
    Lithium Ion rechargeable battery

  • Battery Life

    6 hours

CR99 Receiver

Jump to...
  • Audio Output Level

    Unbalanced: +14 dBu
    Balanced: +9 dBu

  • Audio Output Impedance

    Unbalanced: 810 Ohms
    Balanced: 240 Ohms

  • Sensitivity

    -100 dBm/30 dB sinad

  • Image Rejection

    >50 dB

  • Operating Voltage

    15 VDC 200mA

Microphone

Jump to...
  • Polar Pattern

    Omnidirectional

  • Connector

    Mini-XLR (P3)

General

Jump to...
  • Dimensions (LxWxH)

    ATX Microphone Transmitter: 5.9 x 6.7 x 3.9" (14.99 x 17.02 x 9.91cm)
    CR99 Receiver: 7.87 x 5.9 x 1.6" (19.99 x 14.99 x 4.06cm)

  • Weight

    ATX Microphone Transmitter: 0.13 lbs (0.06kg)
    CR99 Receiver: 2.08 lbs (0.94kg)

  • Battery Capacity

    1.8 Wh

  • UPC Code

    809164219576

About Samson Airline ALX

From the renowned brand Samson, the Airline ALX Lavalier UHF Wireless System is a professional-grade, high-quality audio solution designed for a wide range of applications. This advanced system, operating on a frequency range of 470-494 MHz, offers the freedom of wireless audio transmission with the reliability of a durable, rack-mountable design.

The system includes the world's smallest clip-on ATX Micro Transmitter, which delivers high-definition sound from a device that fits comfortably in the palm of your hand. With an internal rechargeable battery, it provides up to eight hours of reliable performance, covering an impressive 300' operating range. The ATX transmitter features easily accessible Gain and Mute controls, an LED battery life indicator, and infrared sync for effortless matching of receiver and transmitter frequencies.

The package also includes the LM8 Lavalier Microphone Capsule, featuring an omnidirectional pickup pattern. The LM8's off-axis frequency response ensures clear and articulate sound reproduction, making it an ideal choice for capturing diverse presentations. The microphone comes with a lightweight lapel clip for discreet placement and a windscreen to reduce popping and wind noise.

The CR99 Wireless Receiver, housed in a rugged all-metal chassis, is designed for rack mounting. It offers 80 selectable channels for optimal performance, even in challenging environments. The receiver's True RF Diversity design minimizes dropouts, and its tone key technology prevents unwanted noise when the transmitter is off or out of range. The backlit LCD displays RF, audio, and transmitter battery levels for easy monitoring.

Whether you're a presenter, educator, interviewer, or performer, the Airline ALX Lavalier UHF Wireless System provides the advanced technology and reliable performance you need to command the stage, classroom, or broadcast event with confidence.

Samson Airline ALX Features

  • Professional-grade UHF wireless system from renowned brand Samson
  • Includes world's smallest clip-on ATX Micro Transmitter with high-definition sound
  • Features LM8 Lavalier Microphone with omnidirectional pickup for clear sound reproduction
  • Operates on a frequency range of 470-494 MHz, ideal for diverse applications
  • CR99 Wireless Receiver offers 80 selectable channels and True RF Diversity design
  • Durable, rack-mountable design for reliable performance in various settings

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless lavalier microphone system, perfect for dynamic presentations.
  • Capture crystal-clear audio with the LM8 lavalier microphone, ideal for interviews and film projects.
  • Enjoy a reliable 300' range, ensuring your wireless microphone performs during any stage performance.
  • The CR99 receiver's rackmount kit integrates seamlessly into your existing audio setup for convenience.
  • With a 6-hour battery life, this wireless microphone system supports long events and recording sessions.
  • The ATX transmitter's mini-XLR connector provides a secure, professional-grade audio input solution.

What's in the box:

  • Samson CR99 Wireless Receiver
  • ATX Wireless Micro Transmitter
  • LM8 Lavalier Microphone Capsule
  • Windscreen
  • Rackmount Kit
  • AC Adapter
  • USB-Style Charger
  • Samson 2 Year Warranty
