Samson AHX Wireless UHF System Specifications

System
  • Wireless Transmission

    Digital UHF

  • Number of RF Channels

    80

  • Included Transmitters

    1x Bodypack with Microphone

  • Diversity

    True Diversity

  • RF Frequency Band

    D: 542 to 566 MHz

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Systems per Setup

    8

  • Dynamic Range

    >100 dBA

  • Encryption

    None

  • Pilot Tone

    32.768 kHz

Receiver

Jump to...
  • Form Factor

    Table-Top

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/4 Wave External, BNC (Front-Mount)
    2x 1/4 Wave External, BNC (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    XLR Output: +9 dBu (Balanced)
    1/4" Output: +14 dBu (Unbalanced)

  • Frequency Response

    50 Hz to 15 kHz

  • Impedance

    XLR Output: 240 Ohms (Balanced)
    1/4" Output: 810 Ohms (Unbalanced)

  • Approximate RF Sensitivity

    -100 dBm

  • Adjacent Channel Isolation

    >50 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    15 VDC at 200 mA (Included)

  • Display & Indicators

    1x Back-Lit LCD (AF Level, Battery Status, Channel, Frequency, Group, RF Level)

  • Housing

    Metal

  • Dimensions

    7.9 x 1.6 x 5.9" (20.1 x 4.1 x 15cm)

  • Weight

    2.1 lb (1kg)

Transmitter

Jump to...
  • Form Factor

    Bodypack with Microphone

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x TA3/Mini XLR 3-Pin Male Balanced Input

  • Pad

    None

  • Gain Range

    Up to 20 dB

  • Signal Processing

    None

  • Frequency Response

    50 Hz to 15 kHz

  • Sync Method

    IR

  • Antenna

    1x Internal

  • Power Requirements

    Battery

  • Battery Type

    1x Built-In Rechargeable (Included)

  • Approx. Battery Life

    8 Hours

  • USB Port

    None

  • Display & Indicators

    1x LED (Battery Status)

  • Operating Temperature

    50 to 86 Degree F (10 to 30 Degree C)

  • Dimensions

    6.7 x 3.9 x 5.9" (17 x 9.9 x 15cm)

  • Weight

    2.1 oz (60g)

Microphone

Jump to...
  • Form Factor

    Headworn

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Transducer

    Electret Condenser

  • Polar Pattern

    Figure-8

  • Maximum SPL

    145 dB SPL

  • Sensitivity

    80 mV/Pa

  • Output Connectors

    1x TA3/Mini XLR 3-Pin Female Balanced

  • Weight

    1.92 oz (54.4g)

  • UPC Code

    00809164219903

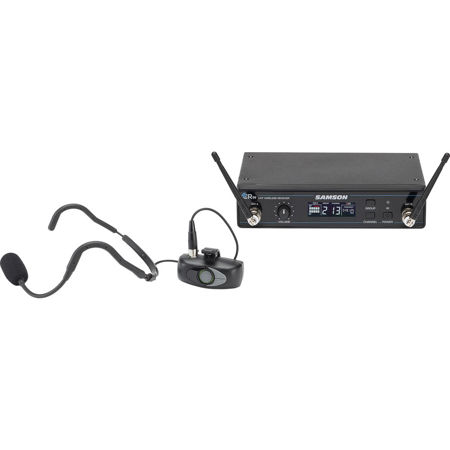

About Samson AHX Wireless UHF System

You Are Now Free to Roam About the Stage.
Samson's AHX Fitness Headset system offers frequency-agile UHF wireless freedom via the world's smallest clip-on transmitter, which places high definition sound, an internal rechargeable battery, and 300' of reliable performance in a device that fits in the palm of your hand. It also features a water-resistant condenser microphone and double ear headset ideal for fitness instructors and other high-energy performers.

ATX-tend Your Reach
The AHX Fitness Headset system continues Samson's longstanding commitment to wireless innovation with the world's smallest clip-on transmitter The ATX Wireless Micro Transmitter clips directly to your belt or waistband, allowing you to you rule the stage with confidence. It provides infrared sync to wirelessly match the receiver and transmitter frequency, easily accessible Gain and Mute controls, a battery life LED indicator and an 8-hour rechargeable lithium-ion battery.

Mic the Workout
The ATX transmitter features a Qe condenser microphone with a bidirectional pickup pattern which reduces background noise, minimizes feedback problems and effectively rejects signals not originating directly in front of the mic capsule.. The Qe is also water-resistant, making it idea for group fitness instructors and other applications where perspiration is a concern. The Qe comes with a durable, double ear headset that is designed to remain in place despite repetitious movement, as well as a windscreen for reducing occurrences of popping and wind noise.

Road-agile
Offering frequency-agile operation, the system's rack mountable CR99 Wireless Receiver provides 80 selectable channels for reliable performance no matter where you are. The receiver's True RF Diversity design minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range.

Samson AHX Wireless UHF System Features

  • AHX Fitness Headset System Features
  • Frequency-agile UHF wireless system
  • 80 operating channels across 24MHz bandwidth
  • Up to eight simultaneous systems per frequency band (region dependent)
  • AC adapter and rackmount kit included
  • CR99 Wireless Receiver Features
  • Rugged all-metal, rack mountable chassis
  • Multifunctional backlit LCD (RF, audio, transmitter battery levels)
  • Group scan for easy single or multi-system setup
  • IR sync wirelessly matches receiver and transmitter frequency
  • True RF Diversity design minimizes dropouts
  • Tone key prevents unwanted noise when transmitter is off/out of range
  • Removable 1/4-wave antennas
  • Balanced XLR and 1/4" outputs
  • ATX Wireless Transmitter Features
  • Clips directly to belt or waistband
  • Qe condenser microphone capsule with bidirectional pickup pattern
  • Water-resistant mic design for high-energy instructors/performers
  • Double ear headset
  • Windscreen included
  • Up to eight hours of battery life using built-in rechargeable lithium-ion battery
  • Sealed gold contact charging connector for included USB-style charger
  • Low battery LED indicator
  • 300' operating range (line-of-sight)
  • Variable Gain control
  • 1-touch Mute

Product Documents

User Manual

Key Features

  • CR99 Wireless Receiver Highlights
  • Rugged all-metal, rack mountable chassis
  • Multifunctional backlit LCD (RF, audio, transmitter battery levels)
  • Group scan for easy single or multi-system setup
  • ATX Wireless Transmitter Highlights
  • Clips directly to belt or waistband

What's in the box:

  • CR99 Wireless Receiver
  • ATX-Qe Fitness Headset Transmitter
  • Windscreen
  • Rackmount Hardware
  • AC Adapter
  • USB Charger
  • Samson 2 Year Limited Warranty
