Samson SR466 Quad VHF Wireless Receiver for Stage V466 Wireless System, Group B
See all Samson items

Samson SR466 Quad-Channel VHF Wireless Receiver for Stage V466 Wireless System, Group B

SKU: SASWV466RB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Samson Quad VHF Receiver Specifications

  • Image Rejection

    30 dB

  • Dynamic range

    95.5 dB

  • Maximum Output

    900mV

  • Sensitivity

    10 dBmicroV for 48 dB S/N

  • Output Connectors

    Four - 1/4" TS ("mono") phone jack; Balanced XLR

  • Audio Output Levels

    -10dB unbalanced (1/4" phone connector)

  • Power Supply

    100-240V AC (50/60 Hz) to 12V DC 0.5A

  • Dimensions

    12.2 x 4.3 x 1.75" (309 x 111 x 44 mm)

  • Net Weight

    1 lb (0.6 kg)

  • UPC Code

    809164213284

About Samson Quad VHF Receiver

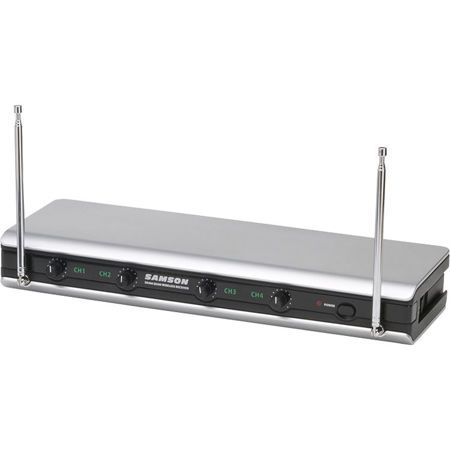

The quad VHF wireless receiver's front panel features an RF channel indicator and a large rotary volume knob for each channel. The receiver also offers two tuned antennas, XLR mix, as well as four 1/4-inch outputs that give you the option for each transmitter pair mixed or each transmitter individually.

Samson Quad VHF Receiver Features

  • SR466 full-rack quad VHF wireless receiver
  • One XLR and four 1/4-inch outputs (transmitter pair mix and individual channel output options)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • SR466 full-rack quad VHF wireless receiver
  • One XLR and four 1/4-inch outputs (transmitter pair mix and individual channel output options)

What's in the box:

  • SR466 Receiver
  • (Mics Not Included)
  • AC Adapter
  • Samson 2 Year Warranty
