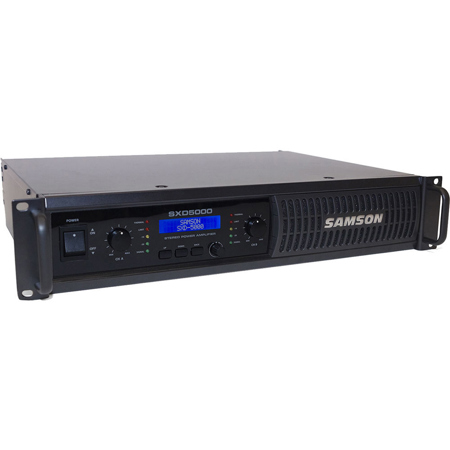

Samson SXD5000 Power Amplifier with DSP
See all Samson items

Samson SXD5000 Power Amplifier with DSP, 750W per Side at 4 Ohms, 20Hz-20kHz Frequency Response at 8 Ohms, 20 kOhms Balanced Input Impedance

SKU: SASXD5000
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the power output of the Samson SXD5000 Power Amplifier?

The Samson SXD5000 Power Amplifier delivers a power output of 750 watts per side at 4 ohms.

What is the frequency response of the Samson SXD5000 Power Amplifier?

The Samson SXD5000 Power Amplifier offers a full frequency response of 20Hz-20kHz.

What kind of DSP controls does the Samson SXD5000 Power Amplifier offer?

The Samson SXD5000 Power Amplifier provides extensive DSP controls including high and low pass filters, a 3-band EQ, output limiter, and delay time for speaker alignment.

What type of connectors does the Samson SXD5000 Power Amplifier use?

The Samson SXD5000 Power Amplifier uses balanced combination XLR and 1/4" inputs and provides both Binding Post and Speakon output connectors.

Is the Samson SXD5000 Power Amplifier suitable for road use?

Yes, the Samson SXD5000 Power Amplifier is designed with an all-steel chassis and convenient carry handles, making it suitable for on-the-road use.

Shopper : Why Did You Choose This?Sharon L : My husband did

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Samson SXD5000 Specifications

  • Rated Power Output

    Stereo Both Channels Driven:
    8 Ohms 500W
    4 Ohms 750W

  • Signal to Noise Ratio

    20 Hz to 20 kHz: >100 dB

  • Distortion

    SMPTE-IM: 0.02%
    Typical at 4 Ohms: 20 Hz to 20 kHz, 10 dB Below Rated Power: 0.002 % 1 kHz, Rated Power: 1 %

  • Input Sensitivity

    At 8 Ohms Voltage Gain: 5 dBu

  • Voltage Gain

    32 dB

  • Output Circuit

    2-Tier Class H

  • Current Consumption

    115 VAC:
    At 1/8 Rated Power 4 Ohms: 3.8 A
    At 1/3 Rated Power 4 Ohms: 10 A
    At Rated Power 4 Ohms, Max: 13.6 A

  • Frequency Response

    At 8 Ohms 1 W, 0/-1 dB: 20 Hz to 20 kHz

  • Damping Factor

    400 Hz: 120

  • Input Impedance

    20 kOhms balanced

  • Input Clipping Level

    10 Vrms (22 dBu)

  • Cooling

    Continuously variable speed fan cooling

  • Connector

    Inputs: 2 x 3-pin XLR
    2 x 1/4" (0.63 mm)TRS, balanced
    Outputs: 4 x Binding post
    2 x Speakon

  • Indicators

    Signal, -20 dB, 10 dB, limit, thermal

  • Protection

    Short circuit, open circuit, thermal, RF protection
    Load protected against DC faults

  • Display

    2 x 16 character LCD

  • Modes

    Manual mode, 2 full range, mono 2-way, sub/sat, 2 subs

  • I/O

    Stereo, mono A+B dual, mono A+B link, parallel A dual, parallel A link

  • Digital

    Dynamics Function: Filter, crossover, gain offset, EQ, limiter
    Digital Delay Function: Max 20 ms per channel

  • Digital Equalizer

    Function Per Channel
    fO: 1/12 octave at 20 to 20 kHz
    Gain: +/- 12 dB
    Q: 0.5 to 5.0
    Presets: DJ, vocal, live sound, install, rock, dance and jazz

  • Setup

    Lock controls with code, factory reset

  • Dimensions (L x W x H)

    19 x 13 x 3.5" / 482.60 x 330.20 x 88.90mm

  • Weight

    28.6lbs / 12.97kg

  • UPC Code

    809164014362

About Samson SXD5000

Because the Samson SXD5000 Power Amplifier with DSP is a powerhouse of audio excellence, it is the go-to choice for audio professionals seeking high-quality sound amplification. This advanced power amplifier delivers an impressive 750 watts per side at 4 ohms, ensuring robust, clean output for large venues or events with high sound demands.

Engineered with precision, the SXD5000 offers a wide dynamic range over a full frequency spectrum of 20Hz-20kHz. This ensures low distortion and superior sound quality across all audio frequencies. The built-in digital signal processor (DSP) provides precise control over sound parameters, making it an ideal choice for front of house engineers and installers who require reliable power distribution.

The SXD5000's user-friendly interface features a backlit LCD designed for use in low-light environments, including dark stages. This allows for easy adjustments of high and low pass filters, a 3-band EQ, output limiter, and delay time for speaker alignment.

For quick and efficient setup, the SXD5000 comes with four presets designed to provide optimal settings for various standard speaker configurations. The power amplifier also offers a digital pass code security lock setting, ensuring uninterrupted performance.

The SXD5000's amp channels offer multi-segment LED metering and level controls with detents, allowing you to monitor your exact setting of gain and sensitivity on the front panel LCD. Input connections are made via balanced combination XLR and 1/4" connectors, while the SXD5000 provides both Binding Post and Speakon output connectors.

Constructed with an all-steel chassis and equipped with convenient carry handles, the SXD5000 is not only reliable and efficient but also built to withstand the rigors of the road. The Samson SXD5000 Power Amplifier with DSP is setting a new standard in power amp performance, value, and reliability, making it a must-have for any professional audio setup.

Samson SXD5000 Features

  • Professional stereo power amplifiers with advanced DSP control
  • Ample power for most performance and installation speaker configurations
  • 750 watts per side at 4 ohms
  • Crystal clear audio guaranteed (0.01% THD, 102dB SNR, 20Hz-20kHz frequency response)
  • Editable presets for DJ, live sound and commercial installations
  • Front panel LCD for navigating DSP settings, including Crossover, Filter, EQ, Limiter, Delay and more
  • Individual channel level controls with detents for accurate setting of gain and sensitivity
  • Multi-segment LED metering on each channel
  • XLR and 1/4" inputs
  • Binding Post and Speakon outputs
  • Dual rack space design

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-power output amplifier with 750W per side at 4 Ohms for professional audio setups
  • Full frequency response of 20Hz-20kHz ensuring clear sound across all ranges
  • Advanced DSP with user-friendly backlit LCD for precise audio control in low-light conditions
  • Built-in presets and extensive DSP controls for fast setup and customization
  • Durable all-steel chassis with carry handles, designed for reliable on-the-road use
  • Versatile connectivity with balanced XLR/1/4" inputs and Binding Post/Speakon outputs

What's in the box:

  • Samson SXD3000 Power Amplifier with DSP
  • IEC 3 Pin Power Cable
  • Samson 1 Year Limited Warranty
