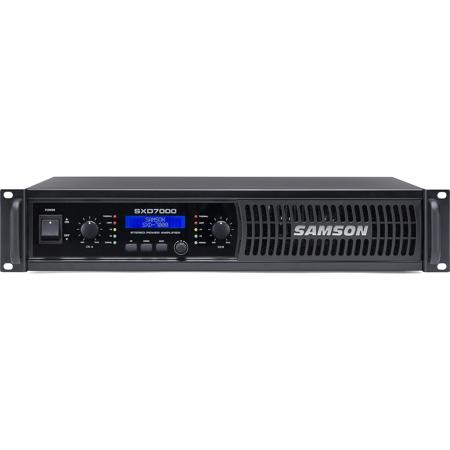

Samson SXD7000 Power Amplifier with DSP, 1000W per Side at 4 Ohms, 20Hz-20kHz Frequency Response at 8 Ohms, 20 kOhms Balanced Input Impedance

SKU: SASXD7000

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson SXD7000 Specifications

  • Rated Power Output

    Stereo Both Channels Driven:
    8 Ohms 700W
    4 Ohms 1000W

  • Signal to Noise Ratio

    20 Hz to 20 kHz: >100 dB

  • Distortion

    SMPTE-IM: 0.02%
    Typical at 4Ohms: 20 Hz to 20 kHz, 10 dB Below Rated Power: 0.002 % 1 kHz, Rated Power: 1 %

  • Input Sensitivity

    At 8 Ohms Voltage Gain: 5 dBu

  • Voltage Gain

    34 dB

  • Output Circuit

    2-Tier Class H

  • Current Consumption

    115 VAC:
    At 1/8 Rated Power 4 Ohms: 5.5 A
    At 1/3 Rated Power 4 Ohms: 9.2 A
    At Rated Power 4 Ohms, Max: 10 A

  • Frequency Response

    At 8 Ohms 1 W, 0/-1 dB: 20 Hz to 20 kHz

  • Damping Factor

    400 Hz: 120

  • Input Impedance

    20 kOhms balanced

  • Input Clipping Level

    10 Vrms (22 dBu)

  • Cooling

    Continuously variable speed fan cooling

  • Connector

    Inputs: 2x 3-pin XLR
    2x 1/4" (0.63 mm)TRS, balanced
    Outputs: 4x Binding post
    2x Speakon

  • Indicators

    Signal, -20 dB, 10 dB, limit, thermal

  • Protection

    Short circuit, open circuit, thermal, RF protection
    Load protected against DC faults

  • Display

    2 x 16 character LCD

  • Modes

    Manual mode, 2 full range, mono 2-way, sub/sat, 2 subs

  • I/O

    Stereo, mono A+B dual, mono A+B link, parallel A dual, parallel A link

  • Digital

    Dynamics Function: Filter, crossover, gain offset, EQ, limiter
    Digital Delay Function: Max 20 ms per channel

  • Digital Equalizer

    Function Per Channel
    fO: 1/12 octave at 20 to 20 kHz
    Gain: +/- 12 dB
    Q: 0.5 to 5.0
    Presets: DJ, vocal, live sound, install, rock, dance and jazz

  • Setup

    Lock controls with code, factory reset

  • Dimensions (L x W x H)

    19 x 13 x 3.5" / 482.60 x 330.20 x 88.90mm

  • Weight

    33lbs / 14.97kg

About Samson SXD7000

Samson's SXD7000 Power Amplifier combines impressive power with advanced DSP technology, pushing the boundaries of value, performance and reliability. With a full-featured interface for precise control over DSP parameters, the SXD7000 is an ideal choice for front of house engineers, installers and anyone else looking for a reliable power distribution setup. The SXD7000 features a convenient dual rack space design and an exceptional power rating of 1,000 watts per side at 4 ohms. This power amp is meticulously engineered to provide robust, clean output with low distortion and a wide dynamic range over a full frequency spectrum of 20Hz-20kHz.

The SXD7000's advanced DSP is controlled via a backlit LCD specifically designed for use in low-lit environments, including dark stages. The power amp provides extensive control over high and low pass filters, a 3-band EQ, output limiter and delay time for speaker alignment. For fast setup, the SXD7000 features four presets designed to provide optimal settings for various standard speaker configurations. Also, the power amp offers a digital pass code security lock setting for uninterrupted performance. All of the SXD7000's amp channels offer multi-segment LED metering and level controls with detents, while your exact setting of gain and sensitivity can be monitored on the front panel LCD. Input connections for the power amp are made via balanced combination XLR and 1/4" connectors, while the SXD7000 provides both Binding Post and Speakon output connectors.

Like all Samson power amps, the SXD7000 honors the essential factors of reliability and efficiency. With multi-stage protection for power-up, over-heating, over-current, short circuit, low output impedance and DC voltage, the SXD7000 assures high reliability under the most demanding situations night after night. In addition, its all-steel chassis design and convenient carry handles make it perfect for the road. The Samson SXD7000 Power Amplifier with DSP: Setting a new standard in power amp performance, value and reliability.

Samson SXD7000 Features

  • Professional stereo power amplifiers with advanced DSP control
  • Ample power for most performance and installation speaker configurations
  • 1000 watts per side at 4 ohms
  • Crystal clear audio guaranteed (0.01% THD, 102dB SNR, 20Hz-20kHz frequency response)
  • Editable presets for DJ, live sound and commercial installations
  • Front panel LCD for navigating DSP settings, including Crossover, Filter, EQ, Limiter, Delay and more
  • Individual channel level controls with detents for accurate setting of gain and sensitivity
  • Multi-segment LED metering on each channel
  • XLR and 1/4" inputs
  • Binding Post and Speakon outputs
  • Dual rack space design

Key Features

  • Ample power for most performance & installation speaker configurations
  • 1000 watts per side at 4 ohms
  • Crystal clear audio guaranteed (0.01% THD, 102dB SNR, 20Hz-20kHz frequency response)
  • Editable presets for DJ, live sound & commercial installations
  • Front panel LCD for navigating DSP settings, including Crossover, Filter, EQ, Limiter, Delay & more
  • Individual channel level controls

What's in the box:

  • Samson SXD7000 Power Amplifier with DSP
  • IEC 3 Pin Power Cable
  • Samson 1 Year Limited Warranty
