Saramonic RX-XLR9 Compact Plug-On XLR Dual-Channel UHF Wireless Receiver for UwMic9 System

SKU: SAUM9RXXLR9

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the Saramonic UwMic9 RX-XLR9 be used with any camera?

The RX-XLR9 is designed to be compatible with professional video cameras, DSLRs, mirrorless cameras, mixers, and portable audio recorders that have an XLR input or a 1/8" (3.5mm) mic input.

Does the RX-XLR9 receiver come with any microphones?

The RX-XLR9 receiver does not come with microphones. It is intended to be used with separate wireless transmitters such as the TX9, TX-XLR9, and HU9, which may include microphones like the SR-M1 omnidirectional lavalier microphone.

How does the RX-XLR9 receiver avoid signal interference?

The RX-XLR9 operates in the UHF spectrum with 96 selectable channels, featuring an automatic-scan to locate the best available channel and infrared synchronization to minimize interference.

Can I monitor audio with the RX-XLR9 receiver?

Yes, the RX-XLR9 features a built-in headphone output that allows you to monitor your audio in real-time, which is particularly useful if your camera lacks a headphone jack.

What type of power sources can be used with the RX-XLR9 receiver?

The RX-XLR9 can be powered by two standard AA batteries or by an external USB battery pack, offering flexibility for extended use in various recording situations.

Shopper : Why Did You Choose This?MAHLON W : FIlm production

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Saramonic RX-XLR9 Specifications

  • Compatibility

    UwMic15 System

  • Channels

    96 selectable channels in 2 groups (A and B)

  • Wireless Frequency Range

    514 MHz - 596 MHz

  • Oscillator Type

    PLL synthesizer

  • Receiver Output Connector

    3-Pin XLR Male

  • Output Cable

    1/8" (3.5mm) TRS Output Cable

  • Antenna

    1/4 Lambda wire antenna

  • Audio Output Level

    -60 dBV

  • Headphone Output Level

    30mW (16 Ohms)

  • Receiver Sensitivity

    -95 dBm

  • Signal to Noise Ratio

    70 dB or more

  • Voice Delay

    12 ms

  • Reference Deviation

    +/- 5 kHz (-60 dBV, 1 kHz input)

  • Frequency Response

    40 Hz to 18 kHz (+/- 3dB)

  • Distortion

    0.5% or less

  • Spur Suppression

    -60 dB

  • Reference Audio Input Level

    -60dBV (MIC Input, 0dB Attenuation)

  • Batteries

    2x LR6/AA size batteries

  • Dimensions

    4.4 x 2.48 x 1.02" (11.18 x 6.30 x 2.59cm)

  • Weight

    3.39 oz (96.10g) (without batteries)

About Saramonic RX-XLR9

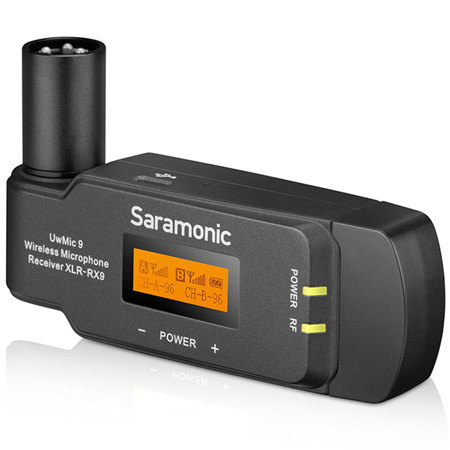

Just imagine the convenience and versatility of the Saramonic UwMic9 RX-XLR9, a compact plug-on XLR dual-channel UHF wireless receiver. This ultra-portable device is designed to mount directly onto the XLR input of professional video cameras, mixers, or audio recorders, making it a perfect companion for professionals in the field of film, TV, news gathering, and field recording.

The RX-XLR9's compact design also allows it to be easily attached to the shoe of DSLR, mirrorless, or video cameras, and can be plugged into a 1/8" (3.5mm) mic input. Its dual-channel capability enables you to use wireless microphones on two separate individuals simultaneously, using just a single RX-XLR9 (transmitters sold separately).

This wireless receiver is not only easy to use but also boasts a durable metal construction, ensuring longevity and reliability. It delivers pristine, broadcast-quality sound, elevating the quality of your interviews and film dialogues. Unlike other wireless receivers that require costly proprietary batteries, the RX-XLR9 operates on two standard AA batteries and can also be powered with an external USB battery pack (sold separately).

The RX-XLR9 is equipped with a built-in headphone output, allowing you to monitor your sound continuously, even when your camera lacks a headphone jack. Its backlit LCD display is easy to read, enabling quick adjustments to its intuitive menus in both bright and dark environments. The device can be rotated 320 degrees to accommodate other equipment when mounted to a camera.

Operating in the UHF (Ultra High Frequency) spectrum, the RX-XLR9 helps you avoid interference. Its 514-596 MHz range in 96 selectable channels is not impacted by the FCC's ban of the 600 MHz frequencies. An automatic-scan feature locates the best available channel for you, and the infrared synchronization simplifies the process.

The RX-XLR9 is compatible with a variety of excellent wireless transmitters, and its dual-channel capability allows you to mix and match to suit your needs. Choose from the TX9 beltpack transmitter (which includes an SR-M1 omnidirectional lavalier microphone), the TX-XLR9 plug-on transmitter, and the HU9 handheld wireless microphone.

In summary, the Saramonic UwMic9 RX-XLR9 is a compact, plug-on, dual-channel UHF wireless receiver that offers unparalleled convenience and versatility for professionals in the audio and video industry.

Saramonic RX-XLR9 Features

  • Two channel wireless UHF receiver built into a single, ultra-compact and ultra-portable body that works with two transmitters at the same time and provides pristine, broadcast-quality sound
  • Mounts directly to an XLR input on professional video cameras, mixers or recorders and provides reliable broadcast-quality sound, features durable metal construction
  • Includes hardware to mount to DSLR, Mirrorless and Video Cameras and plug into 1/8" (3.5mm) mic inputs, rotates 320 deg. to make room for other equipment
  • Built-in headphone output so you monitor your sound, even when your camera lacks a headphone jack, easy-to-read backlit LCD display
  • Offers up to 330-ft (100m) operating distance, not impacted by the FCC's ban of the 600 MHz frequencies

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Compact dual-channel UHF wireless receiver for seamless audio capture
  • Plug-on design with 320-degree rotation for versatile camera and mixer mounting
  • Easy-to-use with automatic channel scanning and infrared synchronization
  • Durable metal construction with broadcast-quality sound fidelity
  • Compatible with a range of transmitters, including TX9, TX-XLR9, and HU9
  • Operates on standard AA batteries or external USB power for continuous use

What's in the box:

  • Saramonic RX-XLR9 Plug-On XLR Dual-Channel UHF Wireless Receiver
  • Camera Shoe Mount with 1/4 "-20 Thread
  • 13 " XLR Female to 3.5mm TRS Male Cable
  • 4' USB Type-C to USB Type-A Cable
  • Printed Manual
  • Saramonic 1 Year Limited Warranty
