Questions & Answers

FAQ

Can the UwMic9S Mini Kit 2 accommodate more than one microphone?

Yes, the UwMic9S Mini Kit 2 can accommodate two lavalier microphones simultaneously, using a single micro receiver. This feature is ideal for scenarios where audio from two separate sources needs to be captured.

What type of battery does the UwMic9S Mini Kit 2 use?

The UwMic9S Mini Kit 2 uses a long-lasting Li-Ion battery. The transmitters come with a 1000mAh Li-Ion battery with up to 5-hour runtime, while the receiver features a 2000mAh Li-Ion battery that provides up to 8-hour runtime.

What is the range of the UwMic9S Mini Kit 2?

The UwMic9S Mini Kit 2 offers the range of a professional UHF system, providing superior performance for a variety of professional applications.

What kind of microphones are included with the UwMic9S Mini Kit 2?

The UwMic9S Mini Kit 2 includes two DK3A premium lavalier microphones. These are high-quality 4mm omnidirectional mics, specifically engineered to enhance the sound quality of your productions.

Is the UwMic9S Mini Kit 2 compatible with all types of cameras and recorders?

Yes, the UwMic9S Mini Kit 2 is compatible with all types of cameras, recorders, mixers, and interfaces that have either 3.5mm or XLR microphone inputs. This makes it a versatile choice for a wide array of audio recording scenarios.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Saramonic UwMic9S Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    2x Reusable Cable Wraps
    SR-UM10-CC1 3.5mm TRS Locking-Type to Dual XLR Male Output Cable
    SR-UM10-C35 2.63' (80cm) Coiled 3.5mm TRS Locking-Type to 3.5mm TRS Output Cable
    3x 3.94' (1.2m) USB-A to USB-C Charging Cables
    SR-C6 Impact-Proof and Watertight Equipment Case

RX9S-Mini Receiver

Jump to...
  • Channel Number

    2 Banks of 96-Channels

  • Channel Groups

    A & B

  • Oscillator Type

    PLL Synthesizer

  • Operating Range

    328' (100m)

  • Audio Output Connectors

    3.5mm Locking-Type

  • Headphone Output

    3.5mm Locking-Type

  • Antenna

    1/4 Lambda Wire Antenna

  • Audio Output Level

    -60 dBV

  • Headphone Output Level

    30mW(16 Ohm)

  • Receiver Frequencies

    514MHz-596MHz

  • Receiver Sensitivity

    -95dBm

  • Signal-to-Noise Ratio

    75dB or more

  • Reference Deviation

    +/-5kHz(-60 dBV,1kHz input)

  • Frequency Response

    40Hz to 18kHz (+/-3dB)

  • Distortion

    0.2% or less

  • Spur Suppression

    -60dB

  • Reference Audio Input Level

    -60dBV (Mic input, 0dB attenuation)

  • Built-in Battery Capacity

    2000mAh

  • Continuous Run Time

    Up to 8-Hours

  • Power Requirements

    Built-in Li-ion Battery or USB-C DC 5V

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)

  • Storage Temperature

    -4 Degree F to 131 Degree F (-20 Degree C to +55 Degree C)

  • Dimensions

    3.07 x 2.28 x 0.98" (78 x 58 x 25mm)

  • Weight

    4.87 oz (138g)

TX9S-Mini Transmitter

Jump to...
  • Channel Number

    96-Channels

  • Channel Groups

    A & B

  • Oscillator Type

    PLL Synthesizer

  • Carrier Frequencies

    514MHz-596MHz

  • Reference Deviation

    +/-5kHz(-60 dBV,1kHz input)

  • Signal-to-Noise Ratio

    75dB or more

  • Spur Suppression

    -60dB

  • Microphone Level Input Steps

    -4dB, 0dB, +4dB, +6dB, +8dB, +12dB, +15dB, +18dB, +20dB

  • Line-Level Input Level Steps

    -14dB, -10dB, -7dB, -4dB, -2dB, +2dB, +5dB, +8dB, +10dB

  • Voice Delay

    12ms

  • Antenna

    1/4 Lambda Wire Antenna

  • Microphone / Line Input Connector

    3.5mm Locking-Type

  • Reference Audio Input Level

    -60dBV (Mic input, 0dB attenuation)

  • Distortion

    0.2% or less

  • Built-in Battery Capacity

    1000mAh

  • Continuous Run Time

    Up to 5-Hours

  • Power Requirements

    Built-in Li-ion Battery or USB-C DC 5V

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)

  • Storage Temperature

    -4 Degree F to 131 Degree F (-20 Degree C to +55 Degree C)

  • Dimensions

    2.47 x 1.97 x 0.86" (62.8 x 50 x 21.8mm)

  • Weight

    3.17 oz (90g)

DK3A Lavalier

Jump to...
  • Acoustic Principle

    Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Sensitivity

    -40 +/-2dB (1kHz 0dB=1V/Pa)

  • Frequency Range

    20Hz to 18kHz

  • Signal-to-Noise Ratio

    More than 58dB

  • Operating Temperature

    -4 Degree F to 140 Degree F (-20 Degree C - 60 Degree C)

  • Connector

    Gold-Plated Locking 3.5mm

  • Cable Length

    70.87" (180cm)

SR-C6 Case

Jump to...
  • Material

    Polypropylene

  • Interior Padding

    Cube/Diced Foam

  • Rated

    IP67 (1-meter submersion for up to 30 minutes)

  • Temperature Rating

    -40 to +210 Degree F (-40 to +95 Degree C)

  • Dimensions

    External: 9.88 x 7.46 x 3.64" (251 x 189.5 x 92.5mm)
    Interior: 9.17 x 6.02 x 3.15" (233 x 153 x 80mm)

  • Weight

    22.57 oz (640g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

  • UPC Code

    6971008028409

About Saramonic UwMic9S

Are you seeking an advanced, professional-grade wireless microphone system that delivers broadcast-quality sound with the convenience of a compact form factor Look no further than the Saramonic UwMic9S Mini Kit 2. This innovative dual-channel UHF wireless system is designed for the discerning professional who requires superior sound quality, robust performance, and exceptional range.

The UwMic9S Mini Kit 2 stands out with its ability to accommodate two lavalier microphones simultaneously, using a single micro receiver. This feature is ideal for capturing interviews, film dialogue, field recordings, broadcast TV, news gathering, vlogging, and YouTube videos. Its compatibility with all types of cameras, recorders, mixers, and interfaces - whether they have 3.5mm or XLR microphone inputs - makes it a versatile choice for a wide array of audio recording scenarios.

This system offers the features, range, and power of a professional UHF system, yet it comes in the size of a micro 2.4GHz system. The TX9S Mini transmitters are remarkably compact and lightweight, making them perfect for discreet placement under clothing or costumes. They boast a locking 3.5mm input, plug-in power for microphones, and a 9-step input gain control for optimal audio levels. The vivid OLED screen, 1000mAh Li-Ion battery with up to 5-hour runtime, and USB-C power port for charging or continuous power during use, add to the transmitters' convenience and reliability.

The included DK3A premium lavalier microphones are high-quality 4mm omnidirectional mics, specifically engineered to enhance the sound quality of your productions with crisp, full-frequency response and increased vocal intelligibility. The complete accessory suite and impact-proof, watertight hard case ensure that your system and accessories are protected and organized.

The RX9S Mini dual receiver may be small and light, but it doesn't compromise on advanced connectivity and functionality. With a locking 3.5mm output, 3.5mm TRS and Dual XLR output cables, selectable Mono/Stereo output, and a 3.5mm headphone output for real-time monitoring, this receiver is equipped to handle a multitude of recording setups. The OLED screen, 2 banks of 96 channels with auto frequency scan and infrared syncing, and a 2000mAh Li-Ion battery with up to 8-hour runtime further enhance the user experience.

The UwMic9S Mini Kit 2 is not just a powerful micro UHF wireless system; it's a testament to Saramonic's commitment to innovation and quality. With optional accessories such as Handheld Microphone, XLR Plug-On and full-sized Belt Pack transmitters, and various receivers soon to be available, this system is poised to meet the evolving needs of professionals and content creators who demand an advanced, feature-rich, professional dual UHF micro wireless system without the hefty price tag.

Saramonic UwMic9S Features

  • Incredibly Compact two-person advanced mini wireless UHF lavalier microphone kit with a micro dual camera-mountable receiver that provides crystal-clear, premium, broadcast-quality sound
  • Micro Belt Pack Transmitters are 25% smaller & 43% lighter than the standard UwMic9S transmitter, features mic or line input, 9-step gain control, up to 5-hour Li-Ion power with USB charging/powering
  • Micro Dual Receiver is 13% smaller & 34% lighter than the standard UwMic9S receiver, features 3.5mm TRS & Dual XLR Output Cables, headphone out, up to 8-hour Li-Ion power with USB charging/powering
  • Includes 2x DK3 High-Quality Lavaliers for Premium Sound with vital accessories: 4x mic clips and 2x cable wraps, with 2x metal-mesh, 4x foam and 4x furry high-wind windscreens all included
  • 330' range with 360 Degree antennas, auto-scan, infrared syncing, vivid OLEDs, impact-proof watertight hard case & much more. A powerful & professional micro wireless system, that's easy-to-use

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Advanced dual-channel UHF wireless system for professional-grade sound quality
  • Compact and lightweight design with micro-sized transmitters and receiver for easy portability
  • Includes two DK3A high-quality omnidirectional lavalier microphones for enhanced audio capture
  • Features a locking 3.5mm input, 9-step input gain control, and plug-in power for microphones
  • Equipped with a vivid OLED screen and long-lasting Li-Ion battery for reliable operation

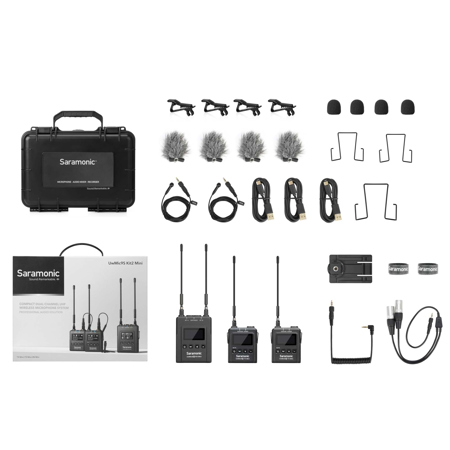

What's in the box:

  • RX9S Mini Portable Dual Channel Camera-Mountable Receiver
  • 2x TX9S Mini Belt Pack Transmitters
  • 4x Antennas
  • 3x Belt Clips
  • Cold Shoe Mount Adapter
  • 2x DK3A Omnidirectional Lavalier Microphones
  • 4x Alligator-Style Lavalier Microphone Clips
  • 2x Fitted Metal Microphone Windscreens
  • 4x Foam Windscreens with Fitted Gaskets
  • 4x High-Wind Furry Windscreens with Elastic Fastening Clasps
  • (See specification section for additional included items)
  • Saramonic 1 Year Limited Warranty
