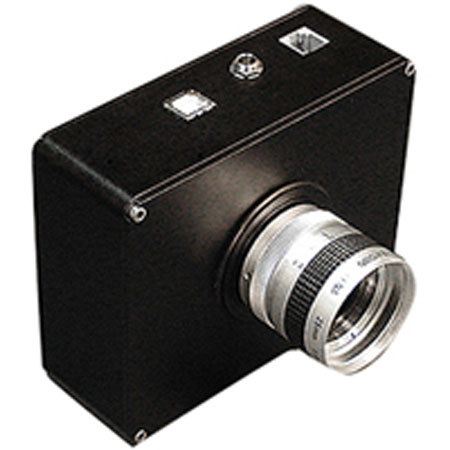

SBIG ST-1603ME 1.56 Megapixel Camera with Kodak KAF-1603ME Imaging CCD, Class 2
See all SBIG items

SBIG ST-1603ME 1.56 Megapixel Camera with Kodak KAF-1603ME Imaging CCD, Class 2

SKU: SB1603MEC2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SBIG ST-1603ME 1.56 Megapixel Camera with Kodak KAF-1603ME Imaging CCD, Class 2 Specifications

  • CCD

    Kodak KAF-1603ME

  • Pixel Array

    1530 x 1020 pixels

  • CCD Size

    13.8 x 9.2 mm

  • Total Pixels

    1.56 million

  • Pixel Size

    9 x 9 microns

  • Full Well Capacity

    ~100,000 e-

  • Dark Current

    1e/pixel/sec at 0� C

  • Antiblooming

    Optional

  • Shutter

    Electromechanical

  • Exposure

    0.04 to 3600 seconds, 10ms resolution

  • Correlated Double Sampling

    Yes

  • A/D Converter

    16 bits

  • A/D Gain

    1.5e- unbinned 2.0e- binned 2x2, 3x3

  • Read Noise

    18e RMS

  • Binning Modes

    1 x 1, 2 x 2, 3 x 3

  • Pixel Digitization Rate

    Up to 1,150,000 pixels per second with USB 2.0

  • Full Frame Download

    ~2.1 seconds with USB 2.0

  • Cooling - Standard

    Single Stage Thermoelectric, Active Fan -30 C from Ambient Typical

  • Temperature Regulation

    +/-0.1�C

  • Power

    12VDC, Power supply included

  • Computer Interface

    USB 2.0 (USB 1.1 compatible)

  • Computer Compatibility

    Microsoft Windows 98/Microsoft Windows 2000/Microsoft Windows ME/Microsoft Windows XP

  • Optical Head

    5 x 4 x 1.8 inches

  • CPU

    All electronics integrated into Optical Head, No CPU

  • Mounting

    T-Thread, 1.25" nosepieces included

  • Backfocus (C-mount compatible)

    0.69 inches

  • Weight

    Approx. 20 oz. (0.6kg)

  • Warranty

    SBIG warranty

About SBIG ST-1603ME 1.56 Megapixel Camera with Kodak KAF-1603ME Imaging CCD, Class 2

The ST-1603ME is the same as the ST-402ME, with the exception of the imaging CCD. The ST-1603ME uses the KAF-1603ME CCD, (this CCD is Class 2) the same sensor SBIG used in the ST- 8XME. This CCD is 1530 x 1020 pixels at 9 microns. However, due to the size of the array, the CFW-402 internal color filter wheel cannot be used.

For color or photometric applications the CFW10-SA with standard 1.25" filters can be used instead. The ST-1603ME is intended primarily for industrial and life science applications where a faster download rate is more important than maximum cooling or self-guiding. It will also perform very well for astronomical applications, particularly where an external guider is already available.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SBIG ST-1603ME Camera Body with Female T-Threads on Front Cover
  • 1.25" T-Thread Nosepiece
  • Internal Shutter
  • 12V Power Supply
  • USB Cable
  • Relay Cable
  • Operating Software
  • SBIG Warranty
