Shinybow SB-5470 Specifications

  • Type of Switcher

    (4) Inputs to (2) Outputs Component-Audio Matrix Switcher

  • Inputs

    (4) Component Video (RGB, YPbPr), 1Vpp, 75Ohms, RCA Sockets
    (4) Left and Right Stereo Audio (RCA-Phono), 5Vpp, 47 kOhms

  • Outputs

    (2) Component Video (RGB, YPbPr), 1Vpp, 75 Ohms, RCA Sockets
    (2) Left and Right Stereo Audio (RCA-Phono), 5Vpp, 47 kOhms

  • Video Bandwidth

    200MHz

  • Resolutions

    Up to 1080p

  • Video Distortion

    <1.2dB

  • Audio Impedance

    10 KOhms

  • Channel Isolation

    >50dB

  • Signal to Noise Ratio

    >50dB

  • Safety Approvals

    CE FCC, RoHS (2002/95/EC)

  • Power Consumption

    300mA

  • Power Supply

    12VDC at 420mA

  • Dimensions (WxDxH)

    9.25 x 5.5 x 1.73" (23.50 x 13.97 x 4.39cm)

  • Weight

    2.6 lbs (1.18kg)

  • UPC Code

    4718091547002

About Shinybow SB-5470

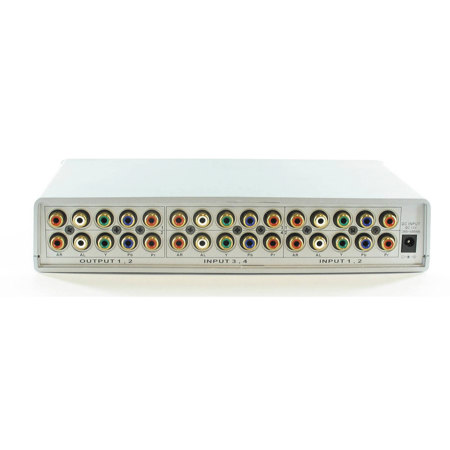

The SB-5470 is a 4x2 matrix switcher that switches (4) Component (YPbPr)/Analog Audio Inputs to (2) Component (YPbPr)/Analog Audio Outputs with an IR remote. The SB-5470 is a rugged 4x2 switcher, offering flawless and seamless switching and crystal-clear distribution of all HDTV video formats as well as audio signals. The SB-5470 accepts up to (4) different input sources and you can seamlessly switch (select) any of these inputs to drive (2) outputs, without any signal degradation. It is universally compatible with all HDTV formats: 480i/p, 576i/p, 720p and 1080i/p.

SB-5470 is a versatile and compact state of the art switcher of choice when you need high-quality and reliable switching. The switch can be controlled by its front-panel manual control button or IR remote and convenient front-panel LEDs indicate which input has been selected for both outputs.

Shinybow SB-5470 Features

  • Inputs: (4) Component Video (YPbPr), (4) Stereo Audio Input
  • Outputs: (2) Component Video (YPbPr), (2) Stereo Audio Outputs
  • Switches easily between any (4) Component video sources
  • Maintains 480i/p, 576i/p, 720p, 1080i/p resolutions
  • Discrete IR remote (included)
  • Easy to install and simple to operate
  • Also can be used for Composite Video switching (will not do conversion between Component and Composite)

What's in the box:

  • Shinybow SB-5470 4x2 Component Video/Stereo Audio HDTV Matrix Routing Switcher
  • IR Remote Control
  • 5-RCA Component Video Cable
  • Left & Right Audio Cable
  • AC/DC Adapter (12VDC & 420mA)
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
