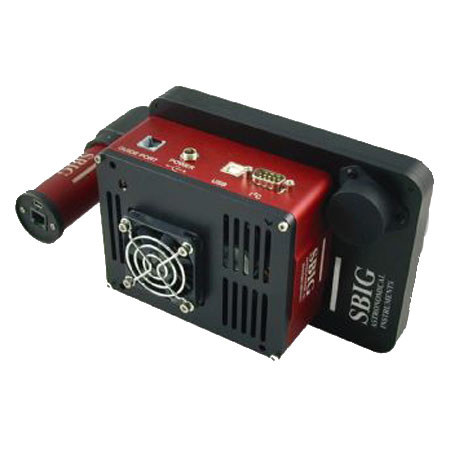

SBIG STF-8300M Pro Plus Package with St-i Color Autoguider / Planetary Imager
See all SBIG items

SBIG STF-8300M Pro Plus Package with St-i Color Autoguider / Planetary Imager, FW5 Filter Wheel, Off-Axis Guider & 36mm LRGB Filter Set

SKU: SB801206600
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SBIG STF-8300M Specifications

  • CCD

    Kodak KAF-8300

  • Pixel Array

    3326 x 2504 pixels

  • CCD Size

    17.96 x 13.52 mm

  • Total Pixels

    8.3 Million

  • Full Well Capacity

    -25,500 e-

  • Dark Current

    0.02e-/p/s @ -10C

  • Antiblooming

    1000X

  • Shutter

    Even-Illumination, Mechanical

  • Exposure

    0.09 to 3600 seconds

  • A/D Converter

    16 bit

  • Gain

    0.37e-/ADU

  • Read Noise

    -9.3e-;

  • Binning Modes

    1x1, 2x2, 3x3, etc. - 15x15

  • Digitization Rate

    10 Megapixels / Second

  • Full Frame Download

    Less than 1 second

  • Cooling

    -40C max. from ambient

  • Temp. Regulation

    +/- 0.1 degree

  • Power

    12VDC, 3 amps max

  • Interface

    USB 2.0

  • Computer Compatibility

    All Windows O/S, 32-bit and 64-bit, Mac OSX

  • Mounting

    T-thread, 2" Nosepiece

  • Dimensions

    Camera Body: 2 x 4 x 5" (50 x 102 x 127mm)
    Backfocus: 0.69" (17.5 mm)

  • Weight

    1.8 lbs (0.8 kg)

About SBIG STF-8300M

The SBIG STF-8300M Pro Plus Package with St-i Color Autoguider/Planetary Imager is a second-generation camera using the popular KAF-8300 CCD. Integrated 5-position and 8-position filter wheels are available as well as a new integrated, low profile, wide field off-axis guiding accessory that, along with the ST-i, allows the STF-8300 to act as a self-guiding camera.

The STF-8300 also continues the SBIG tradition of a user rechargeable desiccant plug and even-illumination, photometric shutter and user-selectable automatic-artifact-repair or raw images for total control in post processing. SBIG mechanical shutters have been designed for highly reliable, even illumination, of the sensor even at short exposures. Even illumination is especially critical when taking flat fields with exposures of less than a second or even several seconds. This is very common when taking sky flats.

SBIG STF-8300M Features

  • 10 Megapixel/second digitization rate for faster image download (Full frame less than 1 sec
  • Faster sampling speed and full frame image buffer, resulting in higher quality images with fewer artifacts and cleaner FFT's
  • Less post processing required (and with the extra low dark current of 8300 CCD casual imagers may not need to perform any post processing)
  • User-selectable choice of automatic image artifact repair for cleaner images or raw images for total control in post-processing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 14 Megapixel/second digitization rate for faster image download

What's in the box:

  • SBIG STF-8300 Monochrome Camera
  • FW5 Filter Wheel
  • Off-Axis Guider
  • St-i Mono Autoguider & Planetary Imager
  • 36mm LRGB Filter Set
  • 36mm H-alpha Clear Filter Set
  • O-III Filter Set
  • SII Filter Set
  • SBIG Warranty
