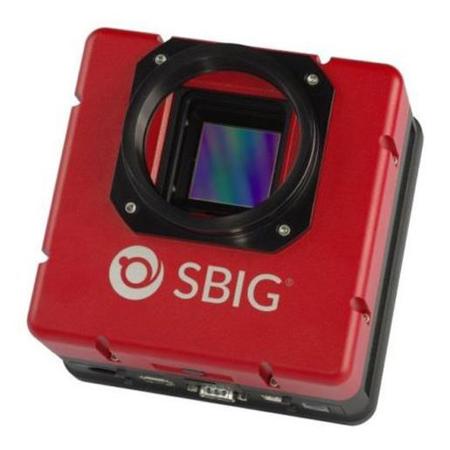

SBIG STXL-6303E Camera with Standard FW8-STXL Filter Wheel
See all SBIG items

SBIG STXL-6303E Camera with Standard FW8-STXL Filter Wheel, 3072x2048 Pixel Array, 16-bit A/D Converter

SKU: SB801227000

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SBIG STXL-6303E Specifications

  • CCD

    Kodak KAF-6303E

  • Pixel Array

    3072 x 2048 pixels at 9u

  • CCD Size

    27.65 x 18.48 mm

  • Total Pixels

    6.3 Million

  • Full Well Capacity

    100000 e-

  • Dark Current

    0.3e-/pixel/sec at 0C

  • Antiblooming

    NABG Only

  • Shutter

    Mechanical, Even-illumination

  • Exposure

    0.12 to 3600 seconds, 10ms

  • Correlated Double Sampling

    Yes

  • A/D Converter

    16 bit

  • Gain

    1.47e-/ADU

  • Read Noise

    11e- rms

  • Binning Modes

    1x1, 2x2, 3x3, 9x9, x n

  • Digitization Rate

    1.8 Megapixels / Second

  • Full Frame Download

    4 Seconds

  • Max Cooling Delta

    -60C with air only

  • Temp. Regulation

    +/-0.1deg.C

  • Power

    12VDC at 6 amps max

  • Interface

    USB 2.0 and Ethernet

  • Computer Compatibility

    Windows 32 / 64 bit Mac OSX 3rd party Linux

  • Mounting

    3" Threaded Accessory Plate

  • Backfocus

    0.98" / 24.89mm

  • Dimensions

    6x6x3.5" / 152.4x152.4x88.9cm

  • Weight

    4.5lbs / 2.04kg

About SBIG STXL-6303E

The SBIG STXL-6303E Camera with Standard FW8-STXL Filter Wheel is the logical successor to SBIG's venerable dual sensor STL Series Cameras with all of the features and latest electronics of the STX series cameras. An innovative self-guiding filter wheel design, which improves the self-guiding capabilities of the camera system by placing the guiding CCD in front of the filters.

SBIG STXL-6303E Features

  • Camera, Autoguider and Filter Wheel now fully integrated with tracking sensor in front of filters! No separate guider required!
  • New Micron-Precision 2" filter wheel provides unmatched flat field accuracy for high end imaging and high precision photometry!
  • USB 2.0 and Ethernet connectivity for remote observatories!
  • Superior Two-stage Cooling -60 degrees C below ambient
  • Water Cooling Ready
  • Uses STX Electronics with Full Frame Image Buffer
