This item is no longer available.

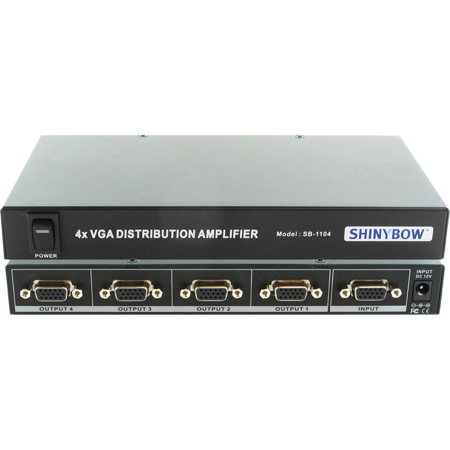

The SB-1104 with (1) VGA Input to (4) VGA outputs. This product provides (4) VGA outputs that are identical to the VGA source signal. This is useful for distributing signals from a high resolution quality VGA 2048x2048 computer to (4) separate components. With an ultra high speed current feedback amplifier and a 5500V/as slew rate that results in a rise time of 545ps, making it ideal as a pulse amplifier. The high slew rate lowers the effect of slew rate limiting and results in the large signal bandwidth 440MHz (G=+2).
Small signal bandwidth of (-3dB) 1000MHz (G=+1) delivers computer resolutions up to 2048x2048 with distances up to 150 feet away without signal deterioration. Signal quality is maintained over a wide bandwidth with worst-case distortion of -40dBc at 250MHz (G=+10, 1Vp-p). Input and output connectors are HD-15 female type. Wall mountable metal case or supports rack mounting,1 RU high. All units are +12VDC powered and includes a power adaptor.
