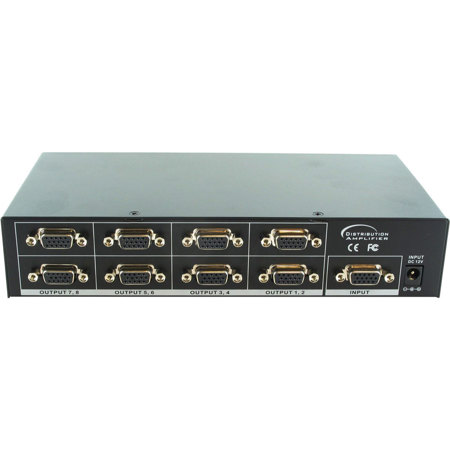

Shinybow SB-1108G 1x8 VGA (RGBHV) Distribution Amplifier Splitter
See all Shinybow items

Shinybow SB-1108G 1x8 VGA (RGBHV) Distribution Amplifier Splitter

SKU: SBSB1108G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow SB-1108G Specifications

  • Type of Amplifier

    1x Input to 8x Outputs VGA Distribution Amplifier

  • I/O Signals

    RGBHV, RGBS, RGsB (RGB Level Range 0.5-2.0 Vp-p)

  • Video Bandwidth

    Large signal 440MHz, Small signal (-3dB) 1GHz

  • Slew Rate

    5500V/as, 4VStep, G=+2

  • Scan Rates Accepted

    50Hz or 60Hz

  • Settling Time

    10ns to 0.1%, 2VStep, G=+2

  • Gain Flatness

    0.1dB to 75MHz, Rl=150% 0.01% differential gain error; RL=150% 0.01 differential phase error; Rl=150%

  • Low Distortion SFDR

    Third Order lntercept (3IP): -66dBc at 20MHz
    Second Harmonic: -75dBc at 20MHz
    Third Harmonic: 26dBm at 70MHz, G=+10

  • High Resolution

    Maximum 2048 x 2048

  • Amplifier Unit

    FCC, CE, RoHS (2002/95/EC)

  • Power Supplies

    UL, CE, CSA, TUV, BS

  • Power Distortion

    400mA full load

  • Enclosure Type

    Wall mountable supported

  • Power Voltage Input

    DC 12Vat500mA, -3A accepted

  • Dimensions (W x D x H)

    8.66 x 4.52 x 1.73" / 219.96 x 114.81 x 43.94mm

  • UPC Code

    4718091110800

About Shinybow SB-1108G

The SB-1108 1x8 VGA (RGBHV) Distribution Amplifier Splitter provides (1) VGA Input to (8) VGA Outputs that are identical to the VGA source signal. This is useful for distributing signals from a high resolution quality VGA 2048x2048 computer to (8) separate components. This ultrahigh speed current feedback amplifier with an excellent 5500V/as slew rate, results in a rise time of 545ps, making it ideal as a pulse amplifier.

The high slew rate lowers the effect of slew rate limiting and results in the large signal bandwidth 440MHz (G=+2), small signal bandwidth of (-3dB) 1000MHz (G=+1) delivers computer resolutions up to 2048x2048 at distances up to 150 feet away without signal deterioration. Signal quality is maintained over a wide bandwidth with worst-case distortion of -40dBc at 250MHz (G=+10, 1Vp-p). Input and output connectors are HD-15 female type. Supported wall mountable metal cases, 1 RU high. All units are +12VDC powered, which includes a power adaptor.

Shinybow SB-1108G Features

  • (1) VGA Input to (8) VGA Outputs
  • Large signal bandwidth 440MHz, G=+2
  • Small signal bandwidth (-3dB) 1GHz, G=+1
  • Settling time 10ns to 0.1%, 2VStep, G=+2
  • Low distortion over wide bandwidth
  • High resolution for VGA, SVGA, XGA, UXGA, WUXGA 1920x1200
  • High output drive 175mA output load drive
  • Supports lower power consumption full load under 300mA

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow SB-1108G 1x8 VGA (RGBHV) Distribution Amplifier Splitter
  • 12 VDC AC/DC Adapter (300mA)
  • User's Guide
  • Shinybow 3 Year Parts & Labor Warranty
