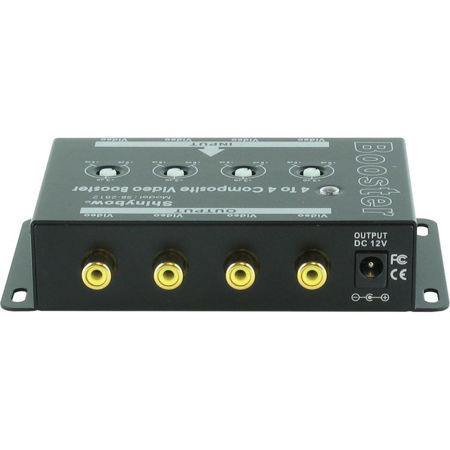

Shinybow SB-2812 4x4 Composite Video Booster, RCA Connector

SKU: SBSB2812

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?RICHARD J : Help out video system in out banquet facility

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shinybow SB-2812 Specifications

  • Type of Booster

    4 inputs to 4 outputs Compos ite Video (BNC) Booster

  • Type of Video

    Composite Video via RCA connectors

  • Boost Distance

    300M - 1000M (1Vp p)

  • Scan Rates Accepted

    50Hz and 60Hz

  • TV Video System

    NTSC( 60Hz) or PAL( 50Hz) TV Video system

  • Line Conversion

    NTSC 525 x 525, PAL 625 x 625

  • Video Bandwidth

    440MHz, G=+2, 320Mhz, G=+10

  • Setting Time

    10ns to 0.1%, 2V Step, G=+2

  • Low Distortion SFDR

    -66dBc at 20MHz, Second Harmonic -75dBc at 20MHz, Third Harmonic 26dBm at 70MHz, G=+10, Third Order lntercept (3IP)

  • Gain Flatness

    0.1dB to 75MHz

  • Differential Gain Error

    0.01%, Rl = 150%

  • Differential Phase Error

    0.01%, Rl = 150%

  • Power Consumed

    100mA maximum

  • Power Source

    DC 12 Volts at 300mA-500mA

  • Safety Approvals

    CE, FCC

  • Dimensions (W x L x H)

    5.04 x 2.85 x 1.08" / 128.02 x 72.39 x 27.43mm

  • Weight

    0.3kg / 0.66lbs with metal case

  • UPC Code

    4718091281203

About Shinybow SB-2812

The SB-2812 is (4) to (4) Composite Video Amplifier (booster) used to drive signals over a long distance. This product provides amplifier signal from +0db to +6db via an adjustable control. This is useful for distributing signals from any video source, included higher resolution video sources to a display monitor. Video signals can be distributed up to more than 300-1000 feet away. Perfect for Classrooms, Training, Conference Halls, Retail outlets. It works great at high resolutions. Supports (4) independent channels of Composite Video.

Shinybow SB-2812 Features

  • Support 4 inputs to 4 out puts Composite Video Extend Booster
  • Video Support Composite Video from 4 inputs To 4 Outputs
  • Video Boost Volume : 0 to +6dB, Video 1Vpp
  • Suitable for CCD device signal extend to HDTV or Plasma monitor displays
  • High Resolution support : 480i , 480p, 720p, 1080i , 1080p
  • Direct VR adjust volume via knob on Front upper case
  • Support TV Video system NTSC or PAL TV Video system
  • Support Line conversion for NTSC 525x525, PAL 625x625
  • Enclosure type : Support wall rack mountable
  • Signals BPR & Stereo Audio (AR/AL)
  • Support Lower power consumed full load under 150 mA
  • Power supply offer a universal type 100-230 VAC switch
  • Surface mount tabs provided

What's in the box:

  • Shinybow SB-2812 4x4 Composite Video Booster
  • 12VDC AC/DC Adapter (300mA)
  • User Guide
  • Shinybow 3 Year Parts & Labor Warranty
