Shinybow 2x1 HDMI PiP/PoP Selector Switch Scaler
See all Shinybow items

Shinybow 2x1 HDMI PiP/PoP Selector Switch Scaler

SKU: SBSB3691
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Shinybow Routing Switch: Picture 1 regular
Shinybow 16x16 HDMI Matrix Routing Switch with Full EDID Management/Learning
$6,449.05
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Selector Switch Scaler Specifications

  • Type of Switcher

    2x HDMI Input and 1x HDMI Output Scaler Box

  • HDMI Support

    HDMI 1080p-at 60Hz, H36-bit Deep color

  • HDCP/HDMI Support

    HDCP 1.2 Compliant, HDMI 1.3 version

  • Video Bandwidth

    165Mhz, Total 4.95Gbps bandwidth

  • Digital Video Support

    480i/480p/720p and up to 1080i/p

  • Input

    2x HDMI (HDMI or DVI digital source)

  • Output

    1x HDMI (to Destination)

  • Switch Controls

    1x Select & Function buttons on front panel
    1x IR Remote Control (switch control)
    1x RS-232

  • Scaling Mode

    Scaler down to 480p
    Scaler up to 1080p

  • HDMI Signal Booster

    Distance for 1080p cable up to 98 feet (30M)

  • Infrared Frequency

    38Khz

  • Firmware Update

    Firmware update via RS-232

  • HDMI I/O Connector

    HDMI Type A-SMD 19pin female type

  • Wall Mount

    1 in High Wall Mount pairs (P/N: WM-1INCH-80mm)

  • Safety Approvals

    CE, FCC, REACH

  • Power Supply

    DC12V, Powr Input: AC 100 - 240VAC 50/60Hz (universal type supply)

  • Operating Temperature

    32 to 100 deg. F / 0 to 38 deg. C

  • Dimensions (W x D x H)

    6.7 x 5.7 x 1.1" / 17.02 x 14.48 x 2.79cm

  • Weight

    1.5lbs / 0.68kg

  • UPC Code

    4718091369109

About Shinybow Selector Switch Scaler

The SB-3691 is the professional 2x1 HDMI PiP PoP Selector Switch Scaler. Supporting (2) HDMI Inputs and (1) HDMI Output with Picture in Picture (PiP) and Picture of Picture (PoP) features that can be easily configured and controlled. Supports video resolutions up to 1080p with a signal bandwidth of 165MHz and data rate up to 4.95Gbps with no signal degradation. The SB-3691 is HDMI 1.3 and HDCP 1.2 compliant, with CE and FCC certifications. Zoom management can be selected between (3) levels. Input resolutions can be scaled up to 1080p or down to 480p. Supports menu for controlling brightness, contrast and saturation. Control is provided via front panel buttons, RS-232 or wireless IR remote control (included).

Shinybow Selector Switch Scaler Features

  • 2x HDMI Inputs and 1x HDMI Output Scaler Switch Box
  • Supports Picture in Picture (PiP) and Picture of Picture (PoP)
  • Link speeds up to 4.95Gbps (link clock rate of 165MHz), HDMI 1.3 and HDCP 1.2 compliant
  • Digital video TMDS formats resolutions up to 1080p with Deep color 36bit
  • Supports (2) HDMI (480i/p to 1080p) Inputs

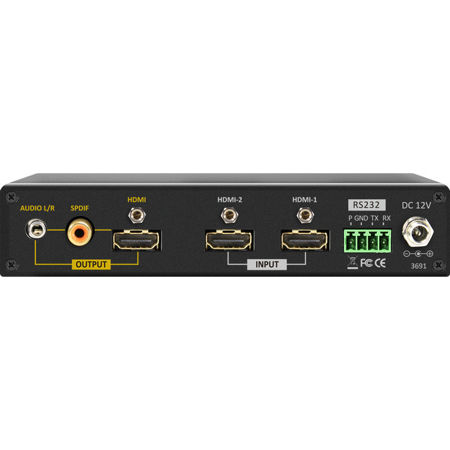

  • Outputs supports: 1x HDMI 1080p-60Hz, 1x S/PDIF, 1x Stereo audio (AR/AL). Audio output support PCM 2ch
  • Zoom management can be selected between (3) modes

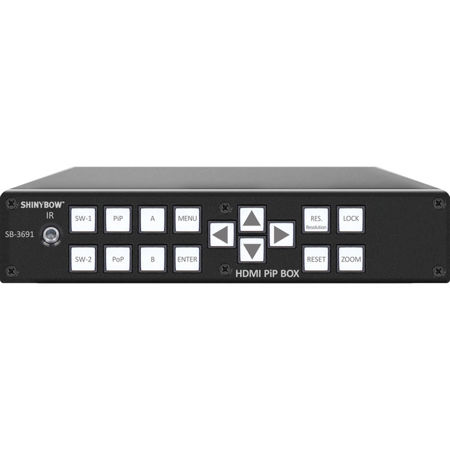

  • (16) Control Buttons: SW1/ SW2/ PiP/ PoP/ A/ B/ MENU/ ENTER/ RESOLUTION/ LOCK/ RESET/ ZOOM/ Up/ Down/ Right/ Left
  • Supports menu for control of color, brightness, contrast and saturation
  • Scaler Supports: Scaling down to 480p, Scaling up to 1080p
  • HDMI cable distance for 1080p-60Hz up to 98 feet (30M)
  • Provide IR remote control Frequency (38KHz)
  • Various User Interface control: Front Panel push buttons, IR wireless remote control, RS-232 interface control driver for WIN2000/xp/WIN7-32/WIN7-32/WIN8
  • Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 2x1 HDMI PiP/PoP Selector Switch Scaler
  • SW-3691 IR Remote Control
  • Wall Mount Bracket
  • RS-232 V36.01 Protocol Instructions
  • Power Supply
  • Shinybow 3 Year Parts & Labor Warranty
