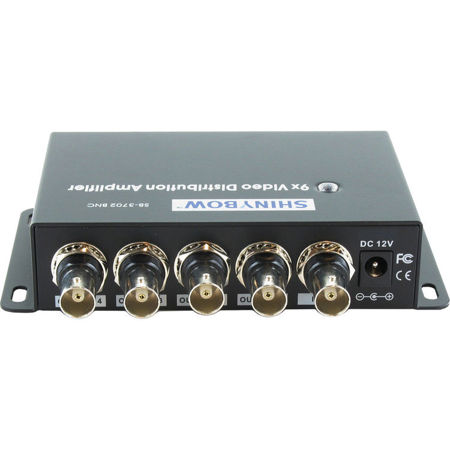

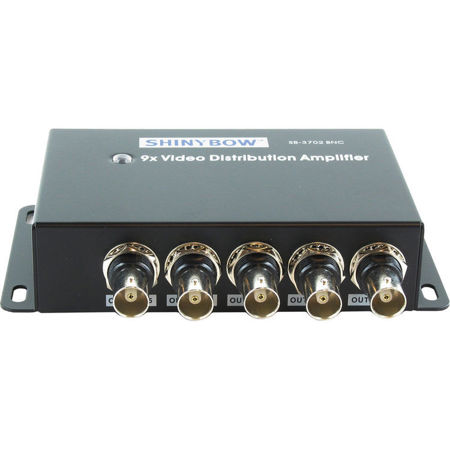

Shinybow 1x9 Composite Video Digital Distribution Amplifier, BNC Connector
See all Shinybow items

Shinybow 1x9 Composite Video Digital Distribution Amplifier, BNC Connector

SKU: SBSB3702BNC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shinybow Distribution Amplifier Specifications

  • Input-Video

    1x Composite Video 75Ohms, 1Vpp

  • Output-Video

    9x Composite Video 75Ohms, 1Vpp

  • Type of Signals

    Composite Video

  • Video Bandwidth

    320MHz (G=+10), 440Mhz (G=+2)

  • Slew Rate

    5,500V/us, 4VStep (G=+2)

  • Video Distortion (SFDR)

    -66dBc at 20MHz, -75dBc at 20MHz

  • Video Specifications

    Gain Flatness: 0.1dB to 75Mhz
    Differential Gain Error: 0.01%, Rl=150%
    Differential Phase Error: 0.01%, Rl=150%

  • Enclosure Type

    Metal wall mount

  • In/Out Terminal

    BNC connectors

  • Power Consumed

    500mA Max

  • Power Source

    DC 12 Volts at 500mA

  • Dimensions (W x D x H)

    4.43 x 3.15 x 1" / 112.52 x 80.01 x 25.40mm

  • Weight

    0.8lbs / 0.36kg

  • UPC Code

    4718091370211

About Shinybow Distribution Amplifier

The SB-3702BNC is a (1) In to (9) Out of Composite Video Distribution Amplifier. It is one of the most innovative Composite Video distribution products Used to distribute video signals to multiple destinations. The SB-3702NC provides (9) outputs that are identical to the source signal. This is useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CAT5 Set Top Boxes, etc.

Shinybow Distribution Amplifier Features

  • Input: 1x Composite Video (BNC)
  • Output: 9x Composite Video (BNC)
  • Video Bandwidth >110Mhz
  • Surface mount tabs provided

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 1x9 Composite Video Digital Distribution Amplifier
  • 12V AC/DC Adapter
  • User Guide
  • Shinybow 3 Year Parts & Labor Warranty
