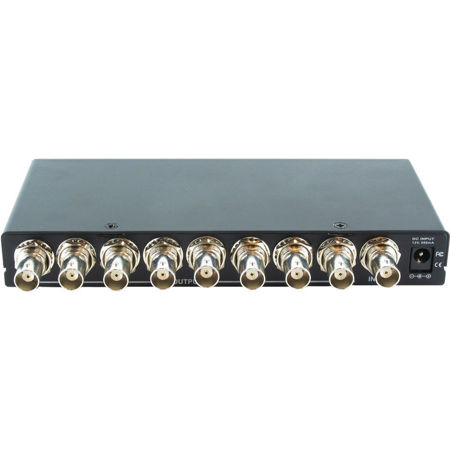

Shinybow 1x8 Composite Video Distribution Amplifier, BNC Connector
See all Shinybow items

Shinybow 1x8 Composite Video Distribution Amplifier, BNC Connector

SKU: SBSB3706BNC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Distribution Amplifier Specifications

  • Input-Video

    1x Composite Video on BNC Connector

  • Output-Video

    8x Composite Video on BNC Connector

  • Video Bandwidth

    110MHz (-3dB) (G =/+1)

  • Video Amplifier Bandwidth

    250MHz

  • Audio Frequency Response

    20Hz to 20KHz, + 0.05db

  • Scan Rate

    50/60Hz

  • Settling Time

    50ns to 0.1%

  • Low Power

    4.4mA / Amplifier

  • Low Distortion

    -80dBk total harmonic at1Mhz, (Rl= 100Z1/2)

  • Slew Rate

    1000V/as

  • Gain Flatness

    0.1dB to 20MHz, RL=150%

  • Differential Gain Error

    0.03%,(RL=1k%)

  • Differential Phase Error

    0.03%, (Rl= 1k%)

  • In/Out Terminal

    BNC connectors

  • Enclosure Type

    Metal case

  • Power Consumed

    200mA Max

  • Safety Approvals

    CE, FCC, RoHS (2002 / 95 / EC)

  • Power Source

    DC 12 Volts at 500mA

  • Dimensions (L x W x H)

    6.93 x 3.14 x 1" / 176.02 x 79.76 x 25.40mm

  • Weight

    2lbs / 0.91kg with metal case

  • UPC Code

    4718091370617

About Shinybow Distribution Amplifier

The SB-3706BNC is a compact composite video distribution amplifier that supports (8) outputs identical to the source signal. Ideal for distributing video signals from DVD, Video Game Console, Satellite Receivers, Cable/Satellite Box, etc. up to (8) screens. The SB-3706BNC composite splitter is designed to support high resolution video for up to 200 foot output cable runs.

Shinybow Distribution Amplifier Features

  • Maintains high resolution video signal over long distance output cables
  • All Outputs are mirrored
  • Buffered Input and amplified Outputs
  • SB-3706BNC will support high resolution video signals up to 200
  • Gold plated BNC jacks
  • Supports PAL and NTSC signals
  • Wall/Desk mountable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 1x8 Composite Video Distribution Amplifier
  • User Guide
  • 12V AC/DC Adapter
  • Shinybow 3 Year Parts & Labor Warranty
