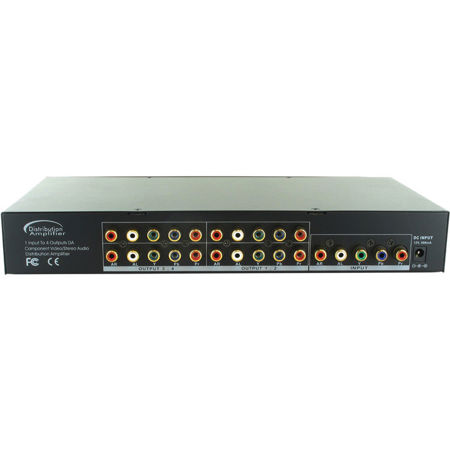

Shinybow 1x4 Component-Audio Distribution Amplifier
See all Shinybow items

Shinybow 1x4 Component-Audio Distribution Amplifier

SKU: SBSB3730300
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Distribution Amplifier Specifications

  • Type of Switcher

    1x input to 4x outputs Component-Audio Distribution Amplifier

  • Video Bandwidth

    300MHz, (-3dB) 200 mVpp, 380MHz, (-3dB) 2 Vpp
    R = 300MHz, G = 300MHz, B = 300MHz, Audio = 60MHz

  • Audio Bandwidth

    60MHz, (-3dB) (Audio-Right = 60MHz, Audio-Lift = 60MHz)

  • Audio Frequency Response

    20Hz to 20KHz

  • Crosstalk

    All Hostile: -84dB at 5MHz, -54dB at 50 MHz
    Channel: -56 dB at 100 MHz

  • Slew Rate

    1,000 V/u s, G = 1.2 V step

  • Controls

    Power switch via front panel selection buttons with LED readout

  • Safety Approvals

    CE, FCC, RoHS (2002 / 95 / EC)

  • Power Voltage Input

    12 VDC at 0.42 A

  • Dimensions (W x D x H)

    11.97 x 6.06 x 1.73" / 304.04 x 153.92 x 43.94mm

  • Weight

    1.4kg / 3.09lbs

  • UPC Code

    4718091373007

About Shinybow Distribution Amplifier

The SB-3730-300 is a input to output Component Video (YPbPr) and Stereo Audio (AR/AL) Distribution Amplifier with a small signal bandwidth of 300MHz and a large signal of 320MHz. It's one of the most innovative Component Video (YPbPr) and Stereo Audio (AR/AL)Distribution Amplifiers on the market today. Supports a 19 inch ear mount bracket pair (part number #1U-300L). Because it is a distributor, the input can distribute to any outputs at the same time. It completely eliminates the need to constantly move around Component Video and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for full High Definition LCD HDTV TV for resolutions 480p, 720p 1080iand 1080p or Plasma display monitor applications. Control is provided power switch via front push buttons with LED readout remote controller.

Shinybow Distribution Amplifier Features

  • Supports 1x input to 4x outputs Component- Audio Distribution Amplifier
  • Supports HDTV Resolution 480i, 480p, 576p, 720p, 1080i and 1080p
  • Video Bandwidth: 300MHz (-3dB), 200mVp-p
  • Audio bandwidth: 60MHz
  • Audio Frequency Response: 20Hz- 20KHz
  • Low all hostile crosstalk of -83dB at 5MHz
  • Signals switch including: Component Video YPbPr, Stereo Audio (AR /AL) signals
  • Suitable for full HD high resolution video player device and LCD/Plasma monitor displays
  • Direct selection power switch via front push buttons with LED read out
  • Enclosure Type: Support 19 inch Ear Brackets
  • Supports Lower power consumption: full load under 450mA
  • Power Supply: Universal type 100- 240VAC switch

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 1x4 Component-Audio Distribution Amplifier
  • User Guide
  • 12V AC/DC Adapter (500 mA)
  • Shinybow 3 Year Parts & Labor Warranty
