Shinybow Distribution Amplifier Specifications

  • Type of Switches

    1x input to 8x outputs Component-Audio Distribution Amplifier

  • Video Bandwidth

    Small signal 700MHz, large signal 440MHz
    R = 440MHz, G = 440MHz, B = 440MHz

  • Audio Bandwidth

    60MHz, (-3dB) (Audio-Right = 60MHz, Audio-Lift = 60MHz)

  • Audio Frequency Response

    20Hz to 20KHz

  • Crosstalk

    All Hostile: -84dB at 5 MHz, -54dB at 50MHz
    Channel: -56dB at 100MHz

  • Slew Rate

    1,000 V/u s, G = 1.2 V step

  • Controls

    Power switch via front panel selection buttons with LED readout

  • Safety Approvals

    CE, FCC, RoHS (2002 / 95 / EC)

  • Power Voltage Input

    12 VDC at 1.25 A

  • Dimensions (W x D x H)

    17.32 x 7.87 x 1.73" / 439.93 x 199.90 x 43.94mm

  • Weight

    2.45kg / 5.40lbs

  • UPC Code

    4718091373700

About Shinybow Distribution Amplifier

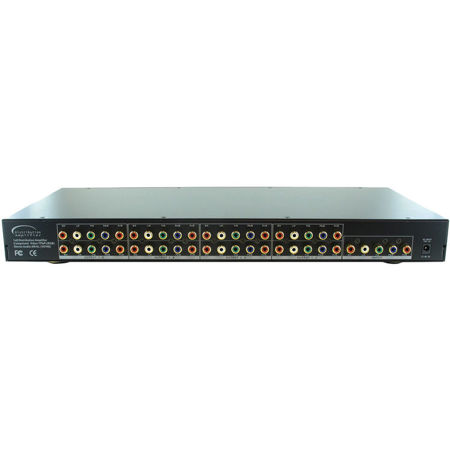

The SB-3737 is a (1) input to (8) output Component Video (YPbPr) and Stereo Audio (AR/AL) Distribution Amplifier with a small signal bandwidth of700MHz and a large signal of 440MHz. It's one of the most innovative Component Video (YPbPr) and Stereo Audio (AR/AL) Distribution Amplifier son the market today. Supports a 19 inch ear mount bracket pair (part number #1U-440L). Because it is a distributor, the (1) input can distribute to any (8) outputs at the same time. It completely eliminates the need to constantly move around Component Video and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for full High Definition LCD HDTV TV for resolutions 480p, 720p 1080i and 1080p or Plasma display monitor applications. Control is provided power switch via front push buttons with LED readout remote controller

Shinybow Distribution Amplifier Features

  • Supports 1x input to 8x outputs Component- Audio Distribution Amplifier
  • Supports HDTV Resolutions 480i, 480p, 576p, 720p, 1080i and 1080p
  • Video Bandwidth: Small Signal 700MHz / Large Signal 440MHz
  • Audio Bandwidth: 60MHz
  • Audio Frequency Response: 20Hz- 20KHz
  • Low all hostile crosstalk of -83dB at 5MHz
  • Signals switch including: Component Video YPbPr, Stereo Audio (AR/AL) signals
  • Suitable for full HD high resolution video player devices and LCD/Plasma monitor displays
  • Direct selection power switch via front push buttons with LED read out
  • Enclosure Type: Support 19 inch Ear
  • Supports Lower power consumption: full load under 650mA
  • Power Supply: Universal type 100 - 240VAC switch

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 1x8 Component Video-Audio Distribution Amplifier
  • User Guide
  • 12V AC/DC Adapter
  • Shinybow 3 Year Parts & Labor Warranty
