Shinybow Distribution Amplifier Specifications

  • Input

    1x Component (RCA) (YPbPr/YCbCr/RGB-HV), Video 75Ohms
    1x S-Video
    1x Composite Video
    1x Digital Audio
    1x Stereo (Left & Right Audio)

  • Outputs

    4x Component (RCA) (YPbPr/YCbCr/RGB-HV), Video 75Ohms
    4x S-Video
    4x Composite Video
    4x Digital Audio
    4x Stereo (Left & Right Audio)

  • Looping Output

    1x Component (RCA) (YPbPr/YCbCr/RGB-HV), Video 75Ohms
    1x S-Video
    1x Composite Video
    1x Digital Audio
    1x Stereo (Left & Right Audio)

  • Video Bandwidth

    Small signal 700MHz, (-3dB), Large signal 380MHz R=3 80MHz, G=3 80MHz, B=380MHz, Digital=110MHz, Audio=60MHz

  • Video Distortion

    <0.2db (+/- 3db)

  • Audio Bandwidth

    60MHz, (-3dB) (Audio-Right=60MHz / Audio-Left=60MHz)

  • Digital Audio Bandwidth

    110MHz compatible / Composite Video in/out

  • Audio Frequency Response

    20Hz to 20KHz

  • All Hostile Crosstalk

    -84dB at 5MHz, -54dB at 50MHz

  • Channel Crosstalk

    -56dB at 100MHz

  • Scan Rates Accepted

    50 or 60Hz

  • Loop Outputs

    1x port extends up to 10x additional amplifier units

  • Safety Approvals

    CE, FCC, RoHS (2002 / 95 / EC)

  • Power Voltage Input

    DC 12 Volts at 1250mA

  • Dimensions (L x W x H)

    8.25 x 4.5 x 1" / 209.55 x 114.30 x 25.40mm

  • Weight

    About 1.54lbs / 0.70kg (with metal case)

  • UPC Code

    4718091375001

About Shinybow Distribution Amplifier

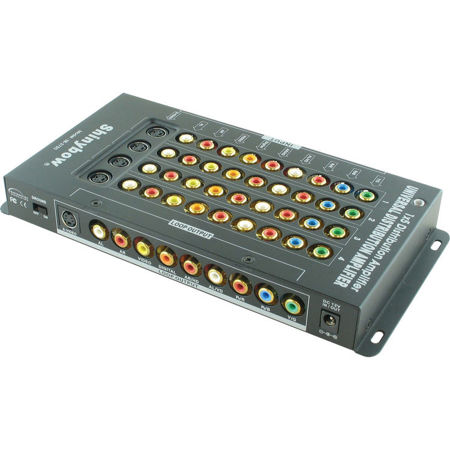

The SB-3750 is a high speed Distribution Amplifier. It's one of the most innovative Component Video (YPbPr), Digital Audio (PCM) and StereoAudio (AR/AL) with Loop output function Distribution Amplifiers on the market today. With a small signal Video Bandwidth of 700MHz and a large signal of 380MHz. Supports wall rack mount brackets and has (1) individual input and (4) individual outputs. The input can distribute to any output so it completely eliminates the need to constantly move around Component Video, Digital Audio and Stereo Audio input and output cables.

This distribution amplifier is ideally suited for full High Definition LCD HDTV Television for resolutions of 480p, 720p 1080i and 1080p or Plasma display monitor applications. Control is provided power switch via front push buttons with LED readout.

Shinybow Distribution Amplifier Features

  • Supports 1x input to 4x outputs and 1x Loop Output
  • Signals amplifier including: Component Video (YPbPr), Digital Audio (S/PDIF), S-Video(Y/C), Composite Video and Stereo Audio (AR/AL) signals
  • Suitable for full HD high resolution video player devices and LCD/Plasma monitor displays
  • HDTV Resolutions 480i, 480p, 576p, 720p, 1080i and 1080p
  • Loop Output port extends connection up to (10) additional amplifier units
  • Enclosure Type: Support wall Rack mountable 1" high
  • Supports lower power consumption: full load under 550mA

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 1x5 Component/S-Video/Composite Video/Digital & Analog Stereo Audio Distribution Amplifier
  • 12V AC/DC Adapter
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
