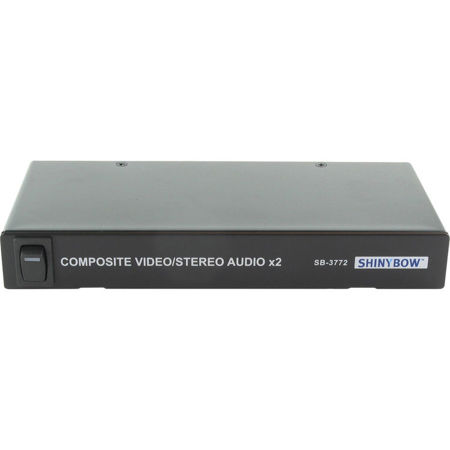

Shinybow 1x2 Composite Video and Stereo Audio Distribution Amplifier
See all Shinybow items

Shinybow 1x2 Composite Video and Stereo Audio Distribution Amplifier

SKU: SBSB3772
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Distribution Amplifier Specifications

  • Type of Signals

    Composite Video, Stereo Audio (AR/ AL)

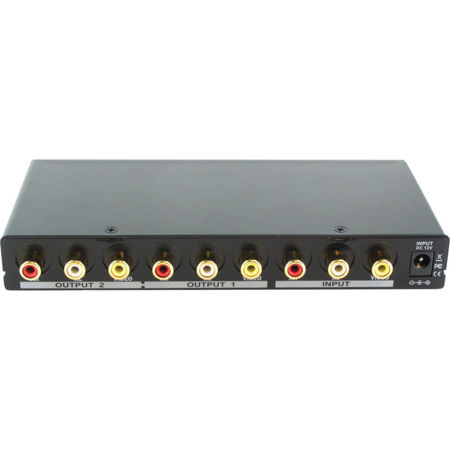

  • Input

    Video: (1) Composite Video 75Ohms, 1Vpp
    Audio: (1) Stereo R/L, -20db 47KOhms

  • Outputs

    Video: 2x Composite Video 75Ohms,1Vpp
    Audio: 2x Stereo R/L, -20db 47KOhms

  • Video Bandwidth

    80MHz, (-3 dB) 2Vp-p

  • Audio Bandwidth

    30MHz

  • Video Distortion

    <1.2db (+/-3db)

  • Audio Distortion

    <0.6db (+/-3db)

  • Channel Isolation

    >50db

  • S/N Ratio

    >50db

  • Audio Frequency Response

    20Hz to 20KHz

  • Video Boost

    About 100M distance

  • Scan Rates Accepted

    50Hz or 60Hz

  • Enclosure Type

    Metal case with mounting tabs

  • Safety Approvals

    CE, FCC, RoHS (2002/95/EC)

  • Power Consumed

    150mA Maximum

  • Power Voltage Input

    DC 12 Volts at 420mA

  • Dimensions (L x W x H)

    7 x 3 x 1" / 177.80 x 76.20 x 25.40mm

  • Weight

    About 580g / 20.46oz(with metal case)

  • UPC Code

    4718091377203

About Shinybow Distribution Amplifier

SB-3772 is a input to output Composite Video and Stereo Audio Distribution Amplifier with a Video Bandwidth of 80MHz. It is one of the most innovative Composite Video and Stereo Audio (AR/AL) Distribution Amplifier product on the market today. Because it is a distributor, the input can be routed to any outputs. It completely eliminates the need to constantly move around Composite Video and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for High Definition HDTV TV for resolutions 480p, 720p, 1080i and 1080p or Plasma display applications.

Shinybow Distribution Amplifier Features

  • Supports 1x2 Composite Video/Stereo Audio Signals
  • Signals amplified include Composite Video and Stereo Audio (AR /AL)
  • Supports HDTV Resolutions for 480i, 480p, 576p, 720p, 1080i and 1080p
  • Supports Lower power consumption: full load under 120mA
  • On/Off Power Switch

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 1x2 Composite Video and Stereo Audio Distribution Amplifier
  • 6' 3RCA-3RCA Cable (RCA Connector)
  • 12V AC/DC Adapter
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
