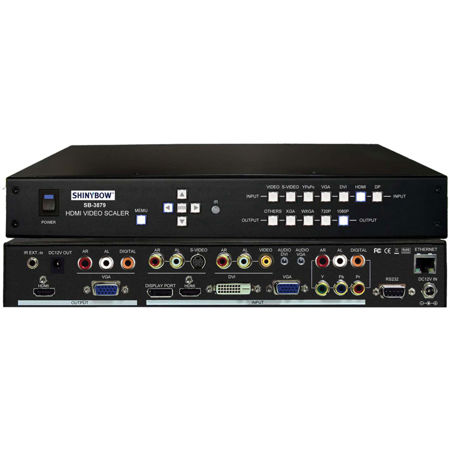

Shinybow 7x2 Mirrored Multi-Format HDMI Video Scaler Selector Switch
SKU: SBSB3879
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Shinybow Scaler Selector Switch
The SB-3879 is a professional high performance video graphics scaler supporting seven (7) different inputs and output signal, HDMI, VGA and S/PDIF & Stereo Audio. The Inputs are comprised of 1x Composite Video & Audio, 1x S-Video & Audio, 1x Component Video & Audio, 1x VGA & Audio, 1x DVI & Audio, 1x DisplayPort and 1x HDMI. The available output ports are 1x HDMI, 1xVGA, 1x S/PDIF and 1x Stereo Audio. This scaler supports S-Video with 3D comb filter, HDMI 3D 1.4a formats, HDCP 2.0 Compliant and HDCP. It is able to auto detects the video standard format of input signal from NTSC/PAL/SECAM system and convert to high definition RGB digital HD signal.
The scaler supports full HDTV resolution data rates enabling 480i/p, 576i/P, 720p or 1080i/p formats, higher DVI resolution (1920x1200 ), HDMI 1080p-60, DP (2550x1600) which is ideally for high definition 3D TV, HDTV, Plasma display or monitor applications. Control is provided via front panel buttons with LED monitor, RS-232, Ethernet or IR remote control (included). A RS-232 interface is provided for interfacing with third party controller. The windows-based control software package is included to provide complete control of the SB-3879 from a PC.
Shinybow Scaler Selector Switch Features
- HDMI Video Scaler Support HDMI 1.4a 3D formats, HDMI V1.4 Transmitter & Receiver, HDMI 1.4, DVI 1.0, HDCP 2.0 Compliant
- Wide range scales HD resolutions any PC (XGA to WUXGA) and HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p from Any analog video, S-Video(Y/C), Component Video (YPBPR), PC VGA, DVI, HDMI or Display Port resolutions
- Input port Composite Video, S-Video(Y/C), Component Video(YPBPR) 480i/p, 576i/p, 720p, 1080i/p , DVI (1920x1200), HDMI 1080p-60, Display Port (2560x1600)
- Output Support PC VGA (XGA to WUXGA) and HDMI 1080P-60 with Deep color 36-bit., Digital Audio support SPDIF and Stereo Audio outputs
- Input resolution up to 1080p, 1920x1080, 1920x1200 and 2560x1600 (only in DP)
- Bypass XGA & 720P 120Hz 3D signal for DLP link 3D ready projector for active 3D display and audio receivers/amplifiers
- Advanced 3D de-interlace, smooth edge algorithm and 3:2/2:2 film mode processing
- Support 3D formats: Frame packing, side by side and top/bottom signal types
- Support full HD at 24Hz full HD 3D signal with special algorithm for RH/LH synchronization
- Support intelligent color adjustment (Discrete RGB color adjustment, Hue, saturation, sharpness, contrast, brightness and (4) preset color modes)
- OSD (on screen display) for menu color, resolution and input source selections
- Various User Interface control: Windows based GUI control via RS232 port, Front Panel push button, IR wireless remote control
- Ethernet with built-in web browser
- Third party RS232 controller (via simple ASCII)
- Support IR Remote and IR Extender with cable distance up to (Approx.)1000' (300M) Maximum
- Desktop with optional 19 inch Rack mount (included)
