Shinybow 8x1 S-Video Selector Switcher with IR Remote Control
See all Shinybow items

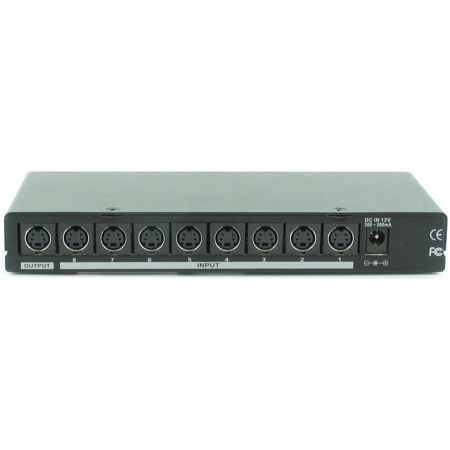

Shinybow 8x1 S-Video Selector Switcher with IR Remote Control

SKU: SBSB5440SV
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Selector Switcher Specifications

  • Type of Signals

    S-Video via 8x Mini-Din Female Connectors

  • Inputs

    8x Video S-Video female ports

  • Outputs

    1x Video S-Video female port

  • Select Function

    Menu & IR Remote controller

  • IR Frequency

    38KHz

  • Video Distortion

    <0.5db

  • Video Bandwidth

    >20MHz (+/- 0.5db)

  • Channel Isolation

    >60db, 6.5db Gain between any input and output

  • Signal to Noise Rate

    >60db

  • Video Crosstalk

    >-55db at 5MHz

  • Scan Rates Accepted

    50Hz or 60Hz

  • IR Infrared Frequency

    38 KHz

  • Controls

    Direct selection via front panel pushbuttons with LED readout or IR Remote Controller

  • In/Out Terminal

    S-Video female connectors

  • Enclosure Type

    Metal

  • Power Consumed

    200mA Maximum

  • Power Source

    DC 12 Volts at 300-500mA

  • Regulatory Approvals

    CE, FCC, VCCI, Erp, WEEE

  • Dimensions (W x D x H)

    6.9 x 3.2 x 1.0" / 175.26 x 81.28 x 25.40mm

  • Weight

    About 1.10lbs / 0.50kg (with metal case)

  • UPC Code

    4718091544025

About Shinybow Selector Switcher

SB-5440SV is a (8) Inputs To (1) Output S-Video(Y/C) Router Switcher. This switcher video use Bandwidth 100MHz product. It's one of the most innovative S-Video(Y/C) Video Routing Switcher product on the market today. Support wall mount pair Rack mount type. It has (8) individual inputs with (1) individual output. Because it is a router switcher, so any inputs may be routed to any (1) output. It completely eliminates the need to constantly move around S-Video(Y/C) input and output cables.

This switcher is ideally suited for full High Definition LCD HDTV TV for resolution 480p, 720p, 1080i and 1080p or HD Plasma display monitor applications. Control is provided via front selections push buttons with LED readout or IR remote controller.

Shinybow Selector Switcher Features

  • (8) Inputs To (1) Output S-Video Routi ng Switcher
  • Supports switch signal S-Video via 8x Mini-din Female Connectors
  • Infrared : IR Remote Control via Frequency (38KHz)
  • Suitable for full HD high resolution Video player device and HDTV, LCD TV, Plasma TV, HD Monitor displays
  • Controls by front panel selection pushbuttons with LED readout and IR Remote Controller
  • Enclosure type : wall Rack mountable
  • Supports Lower power consumption full load under 450mA
  • Ideal for home theater integration
  • Easy to install and simple to operate

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 8x1 S-Video Selector Switcher
  • IR Remote Control
  • 12V AC/DC Adapter
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
