Shinybow 8x8 Composite Video&Stereo Audio Matrix Routing Switcher, BNC Connector
See all Shinybow items

Shinybow 8x8 Composite Video and Stereo Audio Matrix Routing Switcher with 8-Zone Volume Control, BNC Connector

SKU: SBSB5548BNC
(1)

This item is no longer available.

Recommended Alternatives

Shinybow Routing Switch: Picture 1 regular
Shinybow 8x8 HDMI Matrix Routing Switch
$2,795.00$2,446.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-06-07T14:36:39

Rated 5 out of 5

Well made switch box

Got the silver but preferred the black. It works well, good quality. Very happy with purchase.

STEPHANIE C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Routing Switcher Specifications

  • Video Support

    Composite Video 0.5-1.0Vpp, 75Ohms, BNC connector

  • Audio Support

    Stereo Audio (AR/AL), via 2x RCA connector (Color Red/White)

  • Video Bandwidth

    4450MHz (-3db), 200mVp-p, Higher resolution formats

  • Inputs

    Video: 8x Video (Composite Video) using BNC connectors
    Audio: 8x Audio (Stereo Audio) using RCA connectors

  • Outputs

    Video: 8x Video (Composite Video) using BNC connectors
    Audio: 8x Audio (Stereo Audio) using RCA connectors

  • Audio Volume Control

    Volume Level +0-+100 (+6dB)

  • Audio Balance Control

    Balance AR +51-100, AL 0-+50

  • Low All Hostile Crosstalk

    -83db at 5MHz

  • Gain Control

    60MHz 0.1dB gain flatness

  • Switch Controls

    Select & Function buttons on front panel (Data status via LCM panel show out)
    IR Remote Controller (switch control)
    IR External port (switch control via 3.5mm OD Jack)
    RS-232 series interface (switch control)

  • Source Status

    Input status LEDs indicates presence of a live signal

  • 23x Function Control Keys

    ALL, OFF, RECALL, ENTER, MEMORY, LOCK, VOL/BAL, Destination button 1 thru 8, 9.Source button 1 thru 8

  • Infrared Frequency

    38KHz

  • IR External Distance

    SB-100 IR Receiver support - 984'/300m maximum

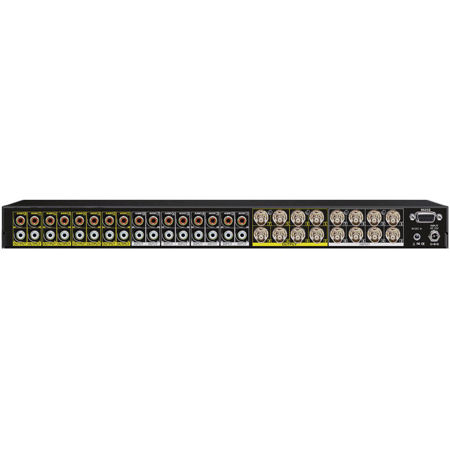

  • AV I/O Connector

    Video: BNC / Audio: RCA

  • Rack Mount

    1RU High 19"

  • Safety Approvals

    CE, FCC, RoHS, REACH

  • Power Supply

    DC12V/3A (consumption 1750mA), Uses Universal Type 50/60Hz, 100-230 VAC

  • Dimensions (W x D x H)

    17.5 x 8 x 1.75" / 444.50 x 203.20 x 44.45mm

  • Weight

    5.5lbs / 2.49kg

  • UPC Code

    4718091554819

About Shinybow Routing Switcher

FEATURED REVIEWS

Well made switch box

By STEPHANIE C.

Got the silver but preferred the black. It works well, good quality. Very happy with purchase.

The SB-5548BNC is a true matrix routing switcher for AV (Composite & Stereo Audio) signals. Full support for NTSC or PAL Composite Video & Stereo Audio TV systems. The SB-5548BNC has individual Composite Video (BNC connector)and Stereo Audio inputs with individual Composite Video (BNCconnector) and Stereo Audio outputs. Audio outputs control and adjust volume and AR/AL balance. Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all outputs or any combination. It completely eliminates the need to constantly move around video audio input and output cables.

The switcher is useful for matrix signals from composite video and stereo audio source devices(such as: VCRs, Camcorders, Video Game Consoles, Video CDs, DVDs, Satellite Receivers, CAT5 Set Top Boxes, etc.) to composite video/audio destination devices (such as: LCD TV, HDTV, Plasma displays, Projectors, etc.). Selection of inputs can be made via the front panel push buttons or an infrared remote control or RS-232 control with a computer. A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

Shinybow Routing Switcher Features

  • Supports (8) Inputs to (8) Outputs A/V (Composite Video & Stereo Audio) Matrix Switcher
  • Input/Output signals via Composite Video (BNC) & Stereo Audio (AR/AL)
  • Higher video bandwidth 450MB each signal path
  • Front panel channel selection buttons
  • Composite Video supports NTSC or PAL TV systems, via BNC connectors
  • Audio Volume control (+/- 100 level) and Balance +50-AR / -50-AL
  • Compatible with all Composite Video devices, Plasma TV displays and HDTVs
  • Supports RS-232 serial interface protocol command list
  • PC RS-232 control drive compatible with Win-95/98/2000/XP
  • Various User Interface Controls: Windows based GUI control via RS-232 port, Front panel push buttons, IR wireless remote control, Third party RS-232 control (via simple ASCII)
  • Supports (7) world wide control function keys: Full function front panel controls: ALL / OFF / VOL-BAL / LOCK / RECALL / MEMORY/ ENTER
  • Supports desktop with ear mount and 19" 1U rack mountable type panel

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 8x8 Composite Video and Stereo Audio Matrix Routing Switcher
  • RS-232 V2.0 Protocol Instructions
  • SW-5548BNC Wireless IR Remote Control
  • 19 " Ear Mount Bracket
  • SB-100 IR Extender Receiver Set
  • SB-100C IR Extender Receiver Cable
  • CD (Windows GUI and ISP V1.0 Windows Driver)
  • 6' RS-232 Cable
  • ISO Screws -12V DC Power Supply
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
