This item is no longer available.

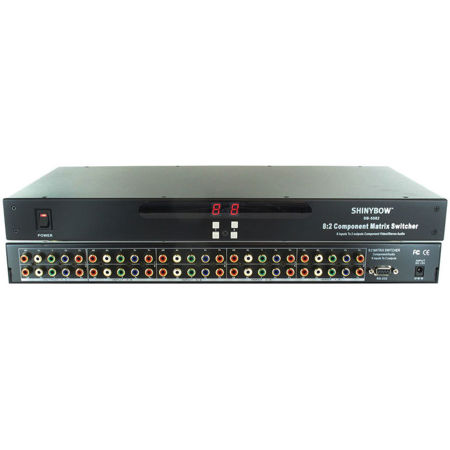

The SB-5582 is a high speed 8x2 Matrix routing switcher for Component Video (YPBPR/YCBCR) signals. Offering a -3dB signal bandwidth greater then 250 MHz, maximum 325MHz and channel switch times of less than 25ns with 1% settling. With -83dB of crosstalk and -98dB isolation (at5MHz). It is one of the most innovative Composite/Stereo Audio switching products on the market today. SB-5582 supports 19 inch rack mount which is included. It has (8) individual inputs with (2) individual outputs. Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all outputs or any combination. It completely eliminates the need to constantly move around audio and video input and output cables.
The SB-5582 matrix switcher is ideally suited for High Definition Television applications. Control is provided via front push buttons with LED readout or IR remote controller. A RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the SB-5582 from a PC.
