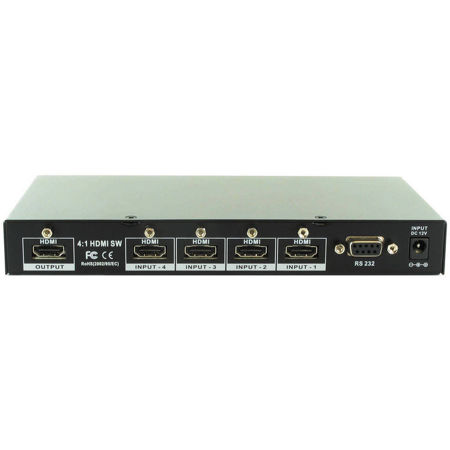

Shinybow 4x1 HDMI Digital Audio Routing Switcher with RS-232 & Remote Control

The SB-5604 is a HDMI switch featuring equalized TMDS inputs and pre-emphasized TMDS outputs for high definition digital of TMDS signal. This switcher supports data rates up to 1.65Gbps, enabling 1080p HDMI formats and UXGA (1600x1200) DVI resolutions and is ideally suited for high definition LCD televisions or plasma display applications.

Control is provided via front push buttons with LED readout or the IR remote controller. A RS-232 interface is provided for interfacing with third party control. An Input cable equalizer enables use of long cables at the input (up to 65 feet of 24 AWG cable at 1080p). A Windows-based control software package is included to provide complete control of the SB-5604 from a PC.
