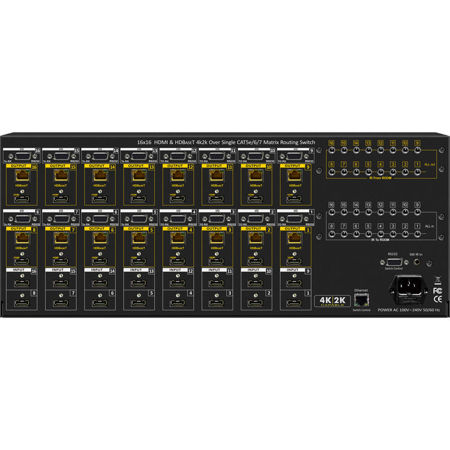

Shinybow 16x16 HDMI & HDBaseT UHD 4K2K Matrix Routing Switch
See all Shinybow items

Shinybow 16x16 HDMI & HDBaseT UHD 4K2K Matrix Routing Switch with Full EDID Management/Learning, Without PoE

SKU: SBSB5669CK
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Shinybow Routing Switch: Picture 1 regular
Shinybow 16x16 HDMI Matrix Routing Switch with Full EDID Management/Learning
$6,449.05
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Routing Switch Specifications

  • HDMI Support

    HDMI 4K2K, 1080p at 60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats

  • HDBaseT Support

    HDMI digital signals, bi-directional IR and RS-232 over single CATx (6/6a/7) cable

  • HDCP / CEC Support

    HDCP 1.3 Compliant, CEC Compliant

  • Video Bandwidth

    Double Data Rates: 340Mhz, HD 4K2Kat30Hz

  • Digital Video Support

    HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36bit deep color

  • Inputs

    HDMI: 16x HDMI (HDMI or DVI digital source)

  • Outputs

    HDMI: 16x HDMI (to Destination)
    HDBaseT: (16) HDBaseT Transmitters via single category cable using RJ-45 connectors

  • HDMI Digital Multi-Channel Audio Support

    Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

  • Booster (HDMI Output Each)

    1080p up to 98' / 29.87m & 4K2K up to 66' / 20.12m

  • HDBaseT Control

    IR Control: 16x IR in (Sends IR signals to 16x rooms via a HDBaseT Transmitter)
    1x ALL IR in (Sends IR signals to 16x rooms via a HDBaseT Transmitter)
    16x IR out (Links IR signals to a Receive from 16x rooms via a HDBaseT Extender)
    1x ALL IR out (Links IR signals to a Receive from 16x rooms via a HDBaseT Extender)

    RS-232 I/O Control: 16x RS-232 I/O (RS-232 controls 16x rooms via a HDBaseT Extender Tx)

  • Switcher Controls

    1x Select & Function buttons on front panel (Data status via LCM panel show out)
    1x IR Remote Controller (switch control), p/n: SW-HD69CK
    16x IR Room Remote Controller (switch control), p/n: SW-HD69CK01Approx.16
    1x IR External port (switch control via 3.5mm OD Jack)
    1x RS-232 series interface (switch control)
    1x Ethernet series interface (switch control)

  • Source Status

    Input status LEDs indicates presence of a live signal

  • 39x Function Control Key

    ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID / Destination 1 thru 16 / Source 1 thru 16

  • 7x EDID Management Modes

    Select Embedded EDID modes: Mode1: Fast Speed Start / Mode2: H24-3D / Mode3: H24-3D-M / Mode4: H36-3D / Mode5: H36-3D-M / Mode6: 4K2K-3D, PCM-2CH / Mode7: DVI-D 1920x1200

  • Learning Mode

    Select LEARNING mode-1: Learning single Destination EDID to Link Source
    Select LEARNING mode-2: Learning multiple Destination EDID to Link Source

  • Infrared Frequency

    38KHz

  • IR Extend Distance

    SB-100 (Approx. 984' / 299.93m maximum), SB-100C (Approx. 6.5' / 1.98m)

  • HDBaseT Extender Distance

    Approx. 328' / 99.98m

  • HDMI I/O Connector

    HDMI Type A-SMD 19-pin female type

  • Operating Temperature

    32 to 100 deg. F / 0 to 38 deg. C

  • Rack Mount

    4RU High 19" Rack Mount #4U-440L (with rack mount ears)

  • Power Supply

    AC 100-240 VAC 50/60Hz
    Power Consumption:10A Maximum

  • Safety Approvals

    CE, FCC, REACH

  • Dimensions (L x W x H)

    17.32 x 11.81 x 6.93" / 43.99 x 30.00 x 17.60cm

  • Weight

    4.57kg / 10.08lbs

  • UPC Code

    4718091566911

About Shinybow Routing Switch

The SB-5669CK is professional 16x16 matrix routing switch. Supporting (16) HDMI Inputs and (16) HDMI Outputs & (16) HDBaseT Outputs. The SB-5669CK is based on HDBaseT standards and supports full resolution HDMI video with embedded HDCP, RS-232 and bi-directional IR, all over a single CAT6/6a/7 category cable. With a signal bandwidth of 340Mhz, there is no signal degradation. High Definition Digital signals can be selected and distributed to any (16) Inputs to (32) Outputs simultaneously (channel outputs mirrored). The switcher is certified as being fully CEC and HDCP 2.0 compliant with HDMI V1.4a, 4K2K, 3D formats and data rates up to 6.75 Gbps.

Using the build-in booster, each HDMI output port is capable of driving cable lengths for 1080p up to 98 feet (30M) & 4K2K up to 66 feet (20M). Supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD displays. The SB-5669CK has (16) HDMI connector Inputs and (16) HDBaseT & (16) HDMI output, effectively making this an (16) in x (32) out switcher (same signal on both outputs). Using the HDBaseT output remote transmitter allows you to connect a source in a remote location.

Likewise, the HDBaseT output and Shinybow's HDBaseT receiver allows you to connect a display in a remote location. EDID management can be selected between (7) different modes and control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

Shinybow Routing Switch Features

  • Enables switching of (16) HDMI digital source devices to (16) HDMI devices and (16) HDBaseT Transmitter outputs to (32) destinations
  • New IR Matrix Source Routing Control
  • HDBaseT specification with Bi-Directional IR, RS-232, Multi Audio Format and HD video signals over single CATx (6/6a/7) category cable
  • HDMI digital video with embedded HDCP, DVI format and CEC/HDCP 2.0 compliant
  • Worldwide EDID control modes for HDMI full 4K2K HD video resolutions
  • Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Supports HDMI 1.4a , 4K2K & 3D formats
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
  • Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTV and audio receivers or audio amplifiers
  • Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit
  • Digital audio support digital multi-channel audio: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX PCM, PCM2, LPCM2
  • HDBaseT supported with IR Remote and RS-232 signals over a single CATx (6/6a/7) category cable
  • Various User Interface controls: Windows based GUI control via RS-232 port, Front panel push button, IR wireless remote controller, Ethernet switch control (via PC protocol commands), Third party RS-232 controller (via simple ASCII)
  • Automatic scanning input & output status via LCM show out on front panel
  • Using the build-in booster, each HDMI output port is capable of driving cable lengths of 1080p up to 98' (30m) & 4K2K up to 66' (20m)
  • Supports IR remotes and IR extenders for distances up to (Approx..) 984' / 299.93m Maximum

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 16x16 HDMI & HDBaseT UHD 4K2K Matrix Routing Switch
  • Master Wireless IR Remote Control
  • 16x Individual Wireless IR Control
  • 19 " Ear Mount Bracket
  • IR Extender Transmitter
  • IR Extender Receiver
  • IR Extender Transmitter Cable
  • IR Extender Receiver Cable
  • CD (Manual/Windows GUI/ISP V1.0 Windows Driver)
  • RS-232 Cable (6.5')
  • ISO Screws
  • User Guides (Switch & Ethernet/RS-232 Protocol Instructions)
  • Power Supply
  • Shinybow 3 Year Parts & Labor Warranty
