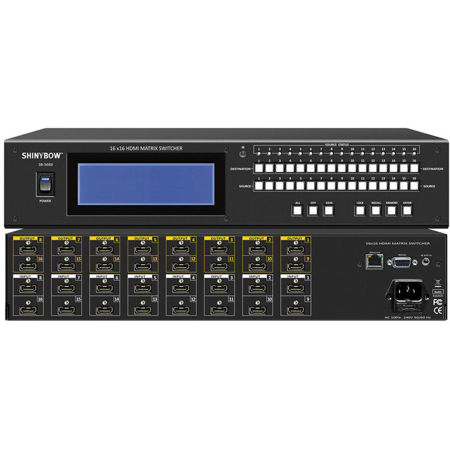

Shinybow 16x16 HDMI UHD 4K2K Matrix Routing Switch with Full EDID Management/Learning

SKU: SBSB5669K MFR: SB-5669K
Earn VIP Reward Points

Key Features

  • Seamless HDMI matrix switching: Route 16 sources to 16 displays with ease!
  • Enjoy reliable 4K2K video switching at 30Hz for stunning, high-resolution visuals.
  • Full EDID management ensures optimal display compatibility, eliminating setup hassles.
  • Control via panel, RS-232, or IR for flexible video switcher operation.
  • Extend HDMI signals up to 98' at 1080p, perfect for larger installations.
  • Integrate effortlessly with multi audio formats, including Dolby and DTS.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shinybow Routing Switch Specifications

  • Frequency Bandwidth

    225MB

  • HDMI Support

    HD 1080p at 60Hz, 4K2K at 30Hz, H36-bit deep color, 3D (1.4a) formats

  • HDCP / CEC Support

    HDCP 1.3 Compliant, CEC Compliant

  • Video Bandwidth

    Double Data Rates: 340MHz, total 6.7Gbps bandwidth

  • Digital Video Support

    HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36bit deep color

  • Inputs HDMI

    16x HDMI (HDMI or DVI digital source)

  • Outputs HDMI

    16x HDMI (to Destination)

  • Digital Audio Support

    Multi Audio Formats 5.1/7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

  • Booster (Each HDMI Output)

    1080p up to Approx.98' (30m) & 4K2Kat30Hz up to Approx.49' (15m)

  • Control

    Panel, RS-232 and IR

  • Source Status

    Input status LEDs indicates presence of a live signal

  • 39x Function Control Key

    ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID / Destination 1 thru 16 / Source 1 thru 16

  • 7x EDID Management

    Embedded EDID Modes: Mode1: Fast Speed Start, Mode2: H24-3D, Mode3: H24-3D-M, Mode4: H36-3D, Mode5: H36-3D-M, Mode6: 4K2K-3D, PCM-2CH, Mode7: DVI-D 1920x1200
    Learning Mode: 1. Select LEARNING Mode-1 : Learning single Destination EDID To Link Source
    2. Select LEARNING Mode-2 : Learning multiple Destination EDID To Link Source

  • Infrared Frequency

    38Khz

  • IR Extend Distance

    SB-100 (Approx.984'/300m maximum), SB-100C (Approx.6.5'/2m)

  • HDBaseT Extender Distance

    Approx.328' / 100m maximum

  • HDMI I/O Connector

    HDMI Type A-SMD 19-pin female type

  • Operating Temperature

    32 to 100 deg. F / 0 to 38 deg. C

  • Rack Mount

    4RU High 19 in Rack Mount #4U-440L (with rack mount ears)

  • Power Supply

    DC12V/2A

  • Safety Approvals

    CE, FCC, REACH

  • Material

    Metal (thin 1mm)

  • Dimensions (L x W x H)

    19 x 7.87 x 3.5" / 48.26 x 19.99 x 8.89cm

  • Weight

    4.575kg / 10.09lbs

  • UPC Code

    4718091566904

About Shinybow Routing Switch

The SB-5669K is a high-performance 16x16 matrix routing switch, expertly designed for professional use. It supports 16 HDMI inputs and 16 HDMI outputs, offering seamless integration with a variety of devices. This advanced switch is built on the HDMI standard, ensuring full-resolution HDMI video with embedded HDCP, RS-232, and bi-directional IR, all transmitted over a single HDMI cable.

With a robust signal bandwidth of 340Mhz, the SB-5669K guarantees no signal degradation, providing clear, high-definition digital signals. Users can effortlessly select and distribute these signals from any of the 16 inputs to the 16 outputs. This matrix routing switch is fully certified as CEC and HDCP 1.3 compliant, supporting HDMI 1.4a, HDMI 4K2K at 30Hz, DVI 1.0, 3D formats, and a broad frequency range of 25MHz-340MHz.

The SB-5669K also supports UXGA/WUXGA/DVI 1920x1200 resolution, delivering high-quality visuals to any HD display. It features comprehensive EDID management with seven selectable modes, providing optimal flexibility and control.

Control of the SB-5669K is versatile and user-friendly, with options including front panel push buttons, an IR remote, RS-232, or TCP/IP. A RS-232 Windows GUI interface is provided for matrix routing control, exclusive to Windows users. The front panel of the SB-5669K boasts a large LCD display, showing the current routing cross points of all inputs to outputs and facilitating easy setup of EDID modes.

External control is achieved through RS-232 Serial connection, IR Remote Control, or IP, with the RS-232/IP connection allowing functions to be controlled by systems like Control4 or any computerized software/hardware control system. The IP port supports commands from a device using either Shinybow's provided PC GUI software or a 3rd party emulator to an IP address set in the SB-5669K.

The SB-5669K Matrix Routing Switch enables one-to-many or many-to-one connections, allowing users to connect any input device to any output device. It also supports a single input device to many output devices, eliminating the need for constant re-routing of video input and output cables. This makes the SB-5669K an ideal solution for complex audio and video setups.

Shinybow Routing Switch Features

  • Enables switching of (16) HDMI digital source devices to (16) HDMI devices
  • Supports HDMI 4K2K at 30Hz and 1.4a 3D formats
  • HDMI digital video with embedded audio, DVI format and is CEC/HDCP 1.3 compliant
  • 7x function buttons for control and 7x worldwide EDID modes for full HDMI 4K2K at 30Hz HD Video resolutions
  • Link speeds of up to 6.75 Gbps (link clock rate of 340Mb Hz)
  • Wide frequency range 25MHz - 340MHz
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K at 30Hz
  • Compatible with all HDMI source devices, PC monitors, plasma HD displays, HDTVs and audio receiver/amplifiers
  • Digital video TMDS formats for resolutions up to 1080p-60 with deep color 36-bit
  • Digital Audio Supports: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
  • Various user interface controls: Windows-based GUI control via RS-232 interface control drive for 2000/XP/WIN7-32/WIN7-64/WIN8, Front panel push buttons, IR wireless remote control, Third party RS-232 controller (via simple ASCII), ETHERNET series interface (via pc protocol commands)
  • Supports (7) world wide control function keys: Full function front panel controls: ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
  • Automatic scanning of input & output status and display via LCM front panel
  • Using the build-in booster, each HDMI Output port is capable of driving cable lengths for 1080p up to 98' (30m) & 4K2K up to 49' (15m)
  • Supports IR remote and IR extender with a maximum distance of up to 984' (300m)

Key Features

  • Seamless HDMI matrix switching: Route 16 sources to 16 displays with ease!
  • Enjoy reliable 4K2K video switching at 30Hz for stunning, high-resolution visuals.
  • Full EDID management ensures optimal display compatibility, eliminating setup hassles.
  • Control via panel, RS-232, or IR for flexible video switcher operation.
  • Extend HDMI signals up to 98' at 1080p, perfect for larger installations.
  • Integrate effortlessly with multi audio formats, including Dolby and DTS.

What's in the box:

  • Shinybow 16x16 HDMI Matrix Routing Switch with Full EDID Management/Learning
  • Wireless Remote Control with Batteries
  • 19 " Rack Mount Kit
  • IR Extender (SB-100)
  • ISO Screws
  • 6' RS-232 Cable
  • 12V AC/DC Adapter
  • CD-ROM (Manual/Windows GUI/ISP V1.0 Windows Driver)
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
