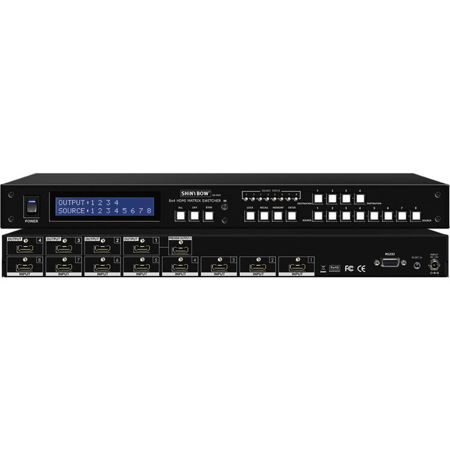

Shinybow 8x4 HDMI Matrix Routing Switch with 1x Preview Port
See all Shinybow items

Shinybow 8x4 HDMI Matrix Routing Switch with Full EDID Management/Learning and 1x Preview Port

SKU: SBSB5684LCM

This item is no longer available.

Recommended Alternatives

Shinybow Routing Switch: Picture 1 regular

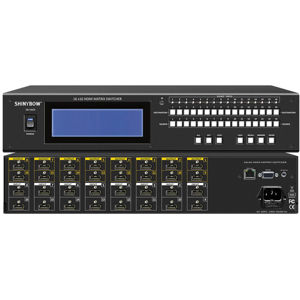

Shinybow 16x16 HDMI Matrix Routing Switch with Full EDID Management/Learning
$6,449.05
Shinybow Routing Switch: Picture 1 regular

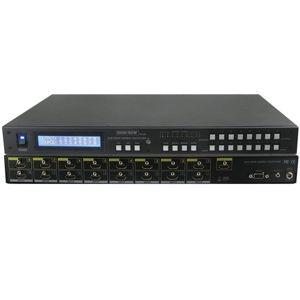

Shinybow 8x8 HDMI Matrix Routing Switch
$2,795.00$2,446.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Routing Switch Specifications

  • HDMI Support

    HD 1080p at 60Hz, H36-bit Deep color, 3D (1.4a) formats

  • HDCP / CEC Support

    HDCP 2.0 Compliant, CEC Compliant

  • Video Bandwidth

    Double Data Rates: 250Mhz, Total 2.25Gbps bandwidth

  • Digital Video Support

    HD:480i/ 480p/ 720p/ 1080i/p up to 36bit deep color

  • Digital Audio Support

    Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

  • Controls

    IR remote controller
    1x IR external port (OD 3.5mm ear phone jack)
    Select & Function buttons on front panel
    RS-232 series interface

  • Preview output

    Supports 1x preview output port simultaneously via Output-#1

  • Source Status

    Automatically scans source Inputs via LED

  • Function Control Key

    ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID

  • Infrared Frequency

    38Khz

  • IR External Distance

    Approx. 1000' / 304.80m maximum

  • HDMI I/O Connector

    HDMI Type A - SMD 19pin Female Type

  • Rack Mount

    1RU High 19in Rack Mount (with rack mount)

  • Power Supply

    DC12V / 5A, Universal world wide Type 50/60Hz, 100-230 VAC

  • Power Consumption

    3550 mA Maximum

  • Safety Approvals

    CE, FCC, RoHS (2002/95/EC)

  • Operating Temperature

    32 to 100 deg. F / 0 to 38 deg. C

  • Dimensions (L x W x H)

    19 x 9.84 x 1.73" / 48.26 x 24.99 x 4.39cm

  • Weight

    3.65kg / 8.05lbs

  • UPC Code

    4718091568410

About Shinybow Routing Switch

The SB-5684LCM is high-performance 8x4 matrix routing switcher for HDMI signals. This switcher supports data rates up to 6.75Gbps, enabling 1080p HDMI formats and UXGA/WUXGA/ DVI resolutions to any HD display. High Definition Digital signals can be selected and distributed to any of the (4) outputs simultaneously. The switcher is certified as being fully HDMI and HDCP compliant, with RoHS, CE, FCC certifications.

Supports high resolution HDMI sources routed to HDMI displays, monitors and projector or audio receivers. The EDID can be selected between (8) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 / TCP-IP Windows GUI interface is provided for matrix routing.

Shinybow Routing Switch Features

  • 8x HDMI digital source devices matrix switched to 4x HDMI devices
  • HDMI digital video with embedded audio, DVI format and CEC/HDCP 2.0 compliant
  • 7x function key control and 8x worldwide EDID modes for HDTV resolutions
  • Link speeds of up to 6.75Gbps (link clock rate of 340Mb Hz), Supports HDMI 1.4a 3D formats
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p
  • Compatible with all HDMI source devices, PC monitors, Plasma HD display, HDTV and audio receivers/amplifiers
  • Digital Video TMDS formats with resolutions up to 1080p-60 with Deep color 36-bit
  • Digital Audio Support : Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
  • Various User Interface Control: Windows based GUI control via RS-232 port, Front panel push button, IR wireless remote control, Third party RS-232 controller (via simple ASCII)
  • Supports world wide control functions: ALL/OFF/RECALL/ENTER/MEMORY/EDID/LOCK
  • Supports EDID Modes: Embedded EDID Modes : FSS/H24-3D/H24-3D-M/H36-3D/H36-3D-M/DVI-D 1280x1024-60Hz/DVI-D 1920x1200-60Hz/AUTO, External Modes: Learning mode
  • Automatic scanning input & output status via LED show on front panel
  • Supports preview output port simultaneously with output #1
  • Supports IR remote and IR extenders with distances up to (Approx..)1000' (300m) Maximum
  • EDID configuration via internal modes
  • Consumer Electronic Control (CEC) switch all open or OFF

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 8x4 HDMI Matrix Routing Switch
  • IR Remote Controller (SW-5684)
  • 19 " Ear Mount Bracket (Part # 1U-440L)
  • IR Extender SB-100 Receiver (300m Length)
  • IR Extender SB-100C Receiver (2m Length)
  • 13x ISO Screws (L5mm/OD3mm)
  • CD (Windows GUI)
  • RS-232 Cable
  • 12V Power Supply
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
