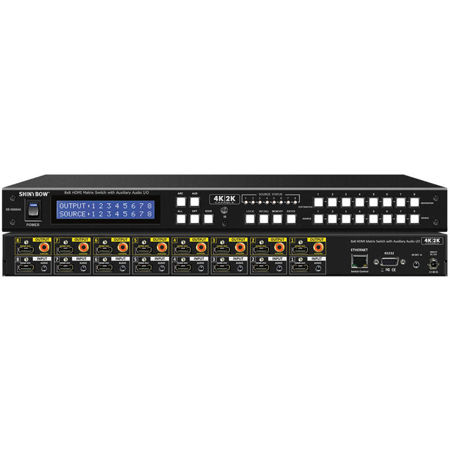

Shinybow 8x8 HDMI UHD 4K2K Matrix Routing Switch with EDID Management, ARC and Auxiliary Audio Input & Output

The SB-5688AK is a professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs, (8) Auxiliary Audio Inputs and (8) HDMI and (8) SPDIF audio Outputs. The SB-5688AK is based on HDMI standards and supports full resolution HDMI video with embedded EDID, with a signal bandwidth of 340Mhz so there is no signal degradation. High Definition digital signals can be selected and distributed from any of the (8) Inputs to the (8) Outputs.

The switcher is certified as being fully CEC, ARC and HDCP 2.0 compliant with full HD 4K2K HDMI V1.4a 3D formats and data rates up to 6.75Gbps. Using the build-in booster, each HDMI Output port is capable of driving cable lengths for 1080p up to 98 ft (30M) & 4K2K up to 66 ft (20M). Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only)
