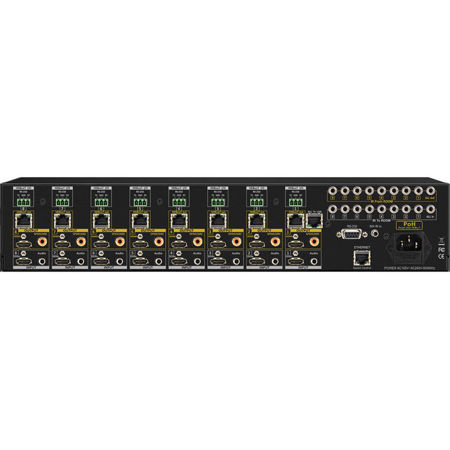

Shinybow 8x8 HDMI UHD 4K2K Matrix Routing Switch with EDID Management/Learning and Auxiliary Audio I/O / ARC, 8x HDBaseT Outputs, PoH
SKU: SBSB5688CAP
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Shinybow Routing Switch
The SB-5688CAP is a professional 8x8 matrix routing switch with PoH (Power Over HDBaseT). Supporting (8) HDMI and (8) Auxiliary Audio Inputs and (8) HDMI, (8) SPDIF and (8) HDBaseT (PoH) Outputs. The SB-5688CAP is based on the HDBaseT standards and supports full HDMI video resolution with embedded EDID and PoH function, Audio, RS-232, Ethernet and bi-directional IR, all over a single category cable. With a signal bandwidth of 340Mhz, so there is no signal degradation.
High Definition Digital signals can be selected and distributed to any (8) inputs to the (16) outputs simultaneously (channel outputs mirrored). The switcher is certified as being fully CEC, ARC and HDCP 2.0 compliant, full HD 4K2K HDMI V1.4a 3D formats, with data rates up to 6.75 Gbps.
Using the build-in booster, each HDMI output port is capable of driving cable lengths for 1080p up to 98' (30m) & 4K2K up to 66' (20m). Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The SB-5688CAP has 1x HDMI and Auxiliary Audio (analog stereo audio) connector per input, effectively making this an (8) in x (16) out switcher (same signal on both outputs). Using the IR remote, the switcherf ½s HDBaseT Extender Transmitter (Tx) allows you to connect a source in a remote location.
Likewise, the HDBaseT output and Shinybow's HDBaseT Receiver allows you to connect a display in a remote location. The EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). An RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
Shinybow Routing Switch Features
- 8x HDMI with Auxiliary Audio (Analog Audio) player devices matrix switched to 8x HDMI with S/PDIF outputs and 8x HDBaseT Transmitter with PoH output to 8x destinations
- Application HDBaseT specification with PoH 48VDC, IR, RS-232, Multi Audio Format and HD
- Video Signals over one CATx (6/6a/7) category cable
- HDMI digital video w/ embedded HDCP, DVI format and CEC/HDCP 2.0 compliant
- Worldwide control EDID modes for HDMI full 4K2K (24/30 Hz) HD video resolutions
- Link speeds of up to 6.75Gbps (link clock rate of 340MbHz), Supports HDMI 4K2K, 1.4a 3D formats
- Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
- Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTV and audio receivers or audio amplifiers
- Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit
- Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
- Audio Input: Supports Auxiliary Audio (analog stereo audio)
- Audio Output: Support Digital Audio ARC or Digital Audio S/PDIF (from HDMI source or Auxiliary Audio)
- Various User Interface controls: Windows based GUI control via RS-232 port, Front panel push button, IR wireless remote controller, Ethernet Switch control, Third party RS-232 controller (via simple ASCII)
- Automatic scanning input & output status via LCM show on front panel
- Using the build-in booster, each HDMI output port is capable of driving cable lengths for 1080p up to 98' (30m) & 4K2K up to 66' (20m)
- Supports IR Remote and IR Extender with distance up to 984' (300m) Maximum
