Orders placed during Passover Holiday (Wed 4/1 after 4PM ET – Thurs 4/9) will ship Fri 4/10. View our holiday shipping schedule.

Shinybow 8x8 HDMI UHD 4K2K Matrix Routing Switch, 8x HDBaseT Outputs
See all Shinybow items

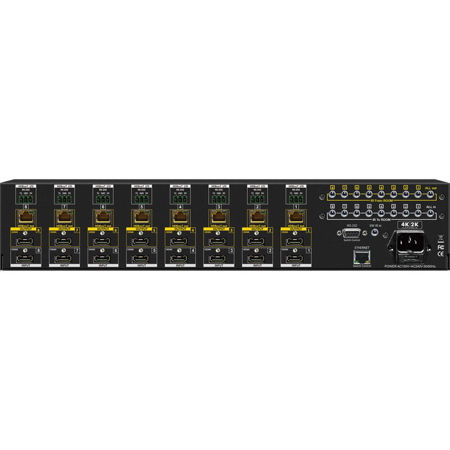

Shinybow 8x8 HDMI UHD 4K2K Matrix Routing Switch with EDID Management/Learning, 8x HDBaseT Outputs

SKU: SBSB5688CK
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Shinybow Routing Switch: Picture 1 regular
Shinybow 16x16 HDMI Matrix Routing Switch with Full EDID Management/Learning
$6,449.05
Shinybow Routing Switch: Picture 1 regular
Shinybow 8x8 HDMI Matrix Routing Switch
$2,795.00$2,446.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Routing Switch Specifications

  • HDMI Support

    HDMI 4K2K at 30Hz, 1080p at 60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats

  • HDBaseT Support

    HDMI 4K2K at 30Hz, 1080p at 60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats

  • HDCP/CEC Support

    HDCP 1.3 Compliant, CEC Compliant

  • Video Bandwidth

    Double Data Rates: 340 MHz, Total 6.75Gbps bandwidth

  • Digital Video Support

    HD: 480i/480p/720p/1080i/p and 4K2K up to 36bit deep color

  • Inputs

    8x HDMI (HDMI or DVI digital source)

  • Outputs

    HDMI: 8x HDMI (to Destination)
    HDBaseT: 8x HDBaseT Transmitter via category cable & RJ-45 connector

  • HDBaseT Control Inputs

    8x IR in (Sends IR signals to 8x Rooms via HDBaseT Transmitter)

  • HDBaseT Control Outputs

    8x IR out (Link to Receive IR signals from 8x Rooms via a HDBaseT Extender)
    1x All Tx LAN (All HDBaseT Transmitter Ethernet links to a HDBaseT Receiver)

  • HDBaseT Control I/O

    8x RS-232 I/O (Control 8x Rooms RS-232 via HDBaseT extender Tx)
    8x IR In to 8x IR Out following the IR Matrix Switcher status

  • Switcher Controls

    1x Select & Function buttons on front panel (Data status via LCM panel show out)
    1x IR Remote Controller (switch control)
    8x IR Room Remote Controller (switch control)
    1x IR External port (switch control via 3.5mm OD Jack)
    1x RS-232 series interface (switch control)
    1x Ethernet series interface (switch control)

  • Source Status

    Input status LEDs indicates presence of a live signal

  • 23x Function Control Keys

    1. ALL, 2. OFF, 3. RECALL, 4. ENTER, 5. MEMORY, 6. LOCK, 7. EDID, 8. Destination button 1 thru 8, 9. Source button 1 thru 8

  • 7x EDID Management

    Select Embedded EDID Modes: Mode1: FSS, Mode2: H24-3D, Mode3: H24-3D-M, Mode4: H36-3D, Mode5: H36-3D-M, Mode6: 4K2K-3D, PCM-2CH, Mode7: DVI-D 1920x1200
    Select LEARNING Mode: Learning Destination EDID to Link Source

  • Infrared Frequency

    38Khz

  • IR External Distance

    Approx. 984' /300m max

  • HDBaseT Extender Distance

    Approx. 328' /100m max

  • HDMI I/O Connector

    HDMI Type A - SMD 19-pin female type

  • Operating Temperature

    32 to 100 deg. F / 0 to 38 deg. C

  • Rack Mount

    2RU High 19in Rack Mount #2U-440L (with rack mount)

  • Power Supply

    AC 100-240 VAC 50/60Hz. (120V/1A/120W; 220V/0.54A/120W)

  • Safety Approvals

    CE, FCC, RoHS, REACH

  • Dimensions (L x W x H)

    19 x 9.85 x 3.46" / 48.26 x 25.02 x 8.79cm

  • Weight

    3.75Kg / 6.25lb

  • UPC Code

    4718091568847

About Shinybow Routing Switch

The SB-5688CK is a professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs and (8) HDMI and (8) HDBaseT Outputs. The SB-5688CK is based on HDBaseT standards and supports full HDMI video resolutions with embedded EDID, Audio, RS-232, Ethernet and bi-directional IR, all over a single CATx cable. This unit has a wide frequency range of 25MHz - 340 MHz so there is no signal degradation. High Definition Digital signals can be selected and distributed to any of the (8) Inputs to any of the (16) outputs simultaneously (channel outputs mirrored).

The switcher is certified as being fully CEC and HDCP 1.3 and supports HDMI 1.4a, 4K2K at 30Hz, DVI 1.0, 3D formats. Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The SB-5688CK has 1x HDMI port per Input and 8x HDMI and 8x HDBaseT ports per Output, effectively making this an (8) in by (16) out switcher (same signal on both HDMI and HDBaseT outputs). Using the IR remote and the switcher's HDBaseT extender transmitter (Tx) allows you to connect a source in a remote location. Likewise, the HDBaseT Output and Shinybow's HDBaseT receivers allow you to connect a displays in remote locations. The EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

Shinybow Routing Switch Features

  • 8x HDMI digital video and digital multi-channel audio player source devices matrix switched to 8x HDMI and 8x HDBaseT Transmitter outputs to 8x destinations
  • New IR Matrix Source Routing Control
  • HDBaseT, IR, RS-232, Multi-channel digital audio format applications and HD video signals over single CATx (6/6a/7) category cable
  • HDMI digital video with embedded HDCP, DVI 1.0 formats and CEC/HDCP 1.3 compliant
  • Worldwide EDID control modes for full HDMI 4K2K at 24/30Hz HD video resolutions
  • Supports HDMI 4K2K at 24/30Hz, 1.4a 3D formats
  • Wide range of HD resolutions from PC, XGA to WUXGA 1920x1200 and HDTV/DTV, HDMI resolutions for 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
  • Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTVs and audio receivers or audio amplifiers
  • Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit
  • Digital multi-channel Audio Support : Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
  • Audio Input: Supports HDMI multi-channel digital audio
  • Audio Output: Supports HDMI multi-channel digital audio
  • Various User Interface Controls: Windows based GUI control via RS-232 Interface control driver for 2000/XP/WIN7-32/WIN7-64/WIN8, Front panel push button, IR wireless remote controller, Ethernet switch control, Third party RS-232 controller (via simple ASCII)
  • Supports (7) Worldwide Control Function Keys: Full function front panel controls: ALL, OFF, EDID, LOCK, RECALL, MEMORY & ENTER
  • Automatic scanning input & output status via LCM screen on the front panel
  • Supports IR remotes and IR extenders for a distance of up to 984' (300m) maximum

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 8x8 HDMI UHD 4K2K Matrix Routing Switch
  • Master Wireless IR Remote Control
  • 8x Wireless IR Control
  • 19 " Ear Mount Bracket
  • SB-101 IR Emitter/Transmitter with Assembly Plugs
  • SB-100 IR Receiver Set with Assembly Plug
  • SB-101C IR Emitter/Transmitter Cable
  • SB-100C IR Receiver Cable (6')
  • CD (Windows GUI & ISP V1.0 Windows Driver)
  • 6' RS-232 Cable
  • Power Supply
  • RS-232 V2.0 / Ethernet V2.0 Protocol Instructions
  • User Guide
  • Shinybow 3 Year Parts & Labor Warranty
