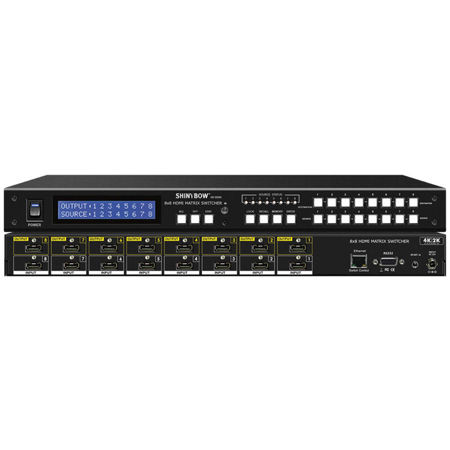

Shinybow 8x8 HDMI UHD 4K2K Matrix Routing Switch with Full EDID Management/Learning

The SB-5688K is professional 8x8 matrix routing switch. Supporting (8) HDMI inputs and (8) HDMI outputs. The SB-5688K is based on HDMI standards and supports full resolution HDMI video with embedded HDCP, with a signal bandwidth of 340Mhz, so there is no signal degradation. High Definition Digital signals can be selected and distributed to any of the (8) inputs to (8) outputs. The switcher is certified as being fully CEC, ARC and HDCP 2.0 compliant, full HD 4K2K HDMI V1.4a 3D formats, data rates up to 6.75Gbps.

Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD displays. The SB-5688K has (1) HDMI connector for input, effectively making this an (8) in by (8) out switcher. The EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS- 232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
