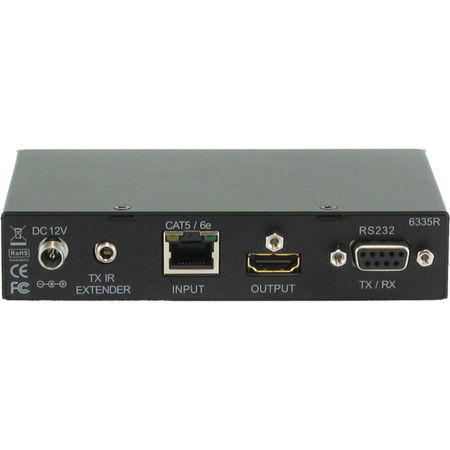

Shinybow SB-6335R HDMI HDBaseT Over Single CAT5e/6/7 Receiver
See all Shinybow items

Shinybow SB-6335R HDMI HDBaseT Over Single CAT5/6/7 Receiver, Up to 330', 2-Way IR

SKU: SBSB6335R
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-11-04T07:54:18

Rated 3 out of 5

Works great when it works.

I do not have extensive experience with this brand, but I've just inherited an AV setup which uses two sets of ShinyBow HDMI Tx/Rx equipment for about a 30-yard HD-over-Ethernet run, as well as a ShinyBow 4x4 HDMI Matrix Switcher. The Pro: - This module is plug-and-play easy. Insert the Ethernet terminator, see the LINK light come on and you know you're good to go (assuming the Tx station is on and plugged in). - No extensive pairing, MAC addressing, or IP configuration required - Optional IR accessories (that I didn't use but looked like they could be handy) - Small with a durable-feeling construction, suitable for tucking behind a wall-mounted TV unit without the need for additional racking beyond a zip tie or two. The Con: - I ordered mine as a replacement for the last one. Admittedly, the last one sat unused for about 8 months due to COVID-related closures, but the other one of the pair still worked, is all I'm saying. - Want to do advanced troubleshooting on your unit? Good luck, there's pretty much no way to do that.

NATHANAEL S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow SB-6335R Specifications

  • Input Signals

    HDMI with Digital Video (TMDS)/Audio 0.5-1.0Vpp, DDC 5Vpp

  • HDBaseT Supports

    HDMI Standard, DVI and HDCP Compliant

  • Video Support

    HDMI and DVI TMDS format for 1920x1200 resolution up to 3.4 Gbps Digital RGB 36bits deep color, 3D 1.4a HDMI format

  • HDMI Audio Out Supports

    Multi-channel Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

  • RS-232 Series Support

    1x RS-232 series interface port (Terminal Block 3pin female socket)

  • Category Cable Support

    CAT6, CAT6a, CAT7 UTP/FTP cable

  • Support HDMI Resolution

    480p, 720p, 1080i/1080p, 4K2K

  • Scan Rate Accepted

    Supports HDMI full HD resolutions; Frequency 24Hz to 60Hz

  • Control

    1x IR in/out, 1x IR in/out, 1x RS-232 and 1x LAN series interface

  • IR Infrared Frequency

    38Khz

  • Extend Distance

    Up to 100m (CAT6)

  • Safety Approvals

    CE, FCC, VCCI, REACH & WEEE

  • Rack Mount

    Use total 10 pcs installation into one 19" rack mount

  • Power Consumption

    Max 750mA (Full load 1080p-60Hz signal with use DC12V input)

  • Power Supply

    Power Input +12VDC, 2A, (Universal Type 50/60Hz, 100-240 VAC)

  • Dimensions (L x W x H)

    3.15 x 5.12 x 1" / 8.00 x 13.00 x 2.54cm

  • UPC Code

    4718091633514

About Shinybow SB-6335R

The SB-6335R HDBaseT receiver can receive HDMI, IR in/out, IR remote in/out and RS-232 I/O signals from a HDBaseT Transmitter via a single category cable for long distances up to 328 feet (100M) maximum. SB-6335R uses a single category LAN CAT6, CAT6a or CAT7 (UTP or FTP) cable with RJ-45 8P8C connectors and supports the 568a or 568b color specification table. This HDBaseT receiver provides higher full HD HDMI resolutions of 480i/p, 720p,1080i/p and 4K2K quality that is identical to the source and to the HD destination display. Receives HDMI digital video, digital multi-channel audio signals, IR in/out and RS-232 series interface signals via a single category cable from the HDBaseT Transmitter.

• HDBaseT HDMI Receiver over a single CAT6/6a/7 category LAN cable
• Extends HDMI, IR in/out, RS-232 in/out and Ethernet ports, HDCP compliant
• Uses CAT6, CAT6a and CAT7 UTP/FTP category cable
• Supports link speeds of up to 3.4 Gbps
• Supports Digital RGB 36bits, V1.4a HDMI TMDS format
• Extends higher quality DVI video 1920x1200 resolution
• Supports HD High Definition full range resolution 480p, 720p 1080i/1080p
• Supports long distances up to 328 feet/100m between HDBaseT Transmitter and HDBaseT Receiver
• Supports wall mount pack and rack mount installation for 19" 4U rack mount
• Power supports DC input with low power consumption (Full load 850mA)

Inputs
• 1x CAT5/6 UTP

Outputs
• 1x RS-232
• 1x HDMI
• 1x IR EXT port

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow SB-6335R HDMI HDBaseT Over Single CAT5e/6/7 Receiver
  • SB-100 Set (IR Receiver Extender Assembly Plug)
  • SB-100C Cable (IR Receiver Cable)
  • SB-101 Set (IR Transmitter Extender Assembly Plug)
  • SB-101C Cable (IR Transmitter Cable)
  • 1 " High Wall Mount Pack
  • 12V Power Supply
  • User Guide
  • Shinybow 3 Year Parts & Labor Warranty
