Sachtler 75/2 Specifications

  • Tripod: Height range

    27 - 171 cm / 10.6 - 67.3 in

  • Tripod: Head fitting

    75 mm

  • Tripod: Transport length

    73.5 cm / 28.9 in

  • Tripod: Extension

    2-stage, telescopic

  • Tripod: Payload

    20 kg / 44 lbs

  • Fluid head: Payload

    1 - 10 kg / 2 - 22 lbs

  • Fluid head: Sliding range - plate

    120 mm / 4.7"

  • Fluid head: Counterbalance

    In 10 steps

  • Fluid head: Grades of drag

    5 each horizontal and vertical + 0

  • Fluid head: Tilt range

    +90/-75deg.

  • Fluid head: Temperature range

    -40deg. to +60deg. C / -40 to +140deg. F

  • Fluid head: Camera fitting

    Sideload plate S

  • Fluid head: Tripod/Pedestal fitting

    75 mm bowl, integrated flat base fitting

  • Fluid head: Pan bar(s)

    1, Type DV 75

  • Fluid head: Level

    Self-illuminating Touch Bubble

  • Fluid head: Batteries Level

    1 x CR2032 Battery

  • Weight

    Tripod: 2.3 kg / 5.1 lbs
    Fluid head: 2.15 kg / 4.7 lbs

About Sachtler 75/2

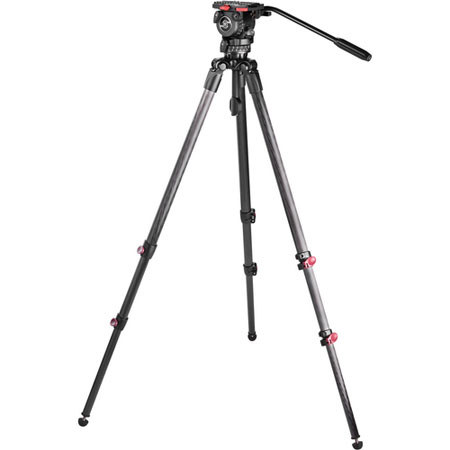

The Sachtler TT 75/2 CF is a 75 mm tripod with 3-section single carbon fiber tubes. It offers a very wide height range, from as low as 10.6" (27 cm) up to a maximum height of 67.3" (171 cm). The systems consist of the FSB 8 fluid head, the telescopic tripod and the padded bag DV 75 L. The tripod is easy to setup. The different leg angles can be quickly adjusted. The tripod comes with footpads with retractable spikes. The TT 75/2 CF has a weight of 5.1 lb (2.3 kg) only and is therefore an ideal choice when looking for a lightweight, compact tripod system.

The sturdy and reliable FSB 8 completes Sachtler's FSB-Range of 75 mm heads, extending the payload range to 19.8 lb (9 kg), well suited for (H)DV camcorders in industrial, newsgathering and education applications. The FSB 8 provides a 10-stage counterbalance, as well as 5 steps of drag (plus 0) for both tilt and pan. The fluid head is engineered with Sachtler's well-known technology, including its patented counterbalance switch mechanism, SpeedBalance and Sideload technology, which allows quick mounting and unmounting of the camcorder for on-the-go assignments.

What's in the box:

  • Sachtler Telescopic Tripod TT 75/2 CF
  • FSB 8 Fluid Head
  • Padded Bag DV 75 L
  • Sachtler 1 Year Warranty (Additional 1 Year with Product Registration)
